18 VP-8x8 - Operating the VP-8x8 8x8 VGA/UXGA Matrix Switcher
To confirm several actions (in the Confirm mode), do the following:
1. Press each OUT-IN combination in sequence.
The corresponding 7-segment display flashes. The TAKE button also
flashes.
2. Press the flashing TAKE button to confirm all the actions.
The corresponding 7-segment display no longer flashes. The TAKE button
illuminates.
6.3 Storing/Recalling Input/Output Configurations
You can store and recall up to 16 input/output configurations using the 8 input
buttons and the 8 output buttons, as Figure 9 illustrates:

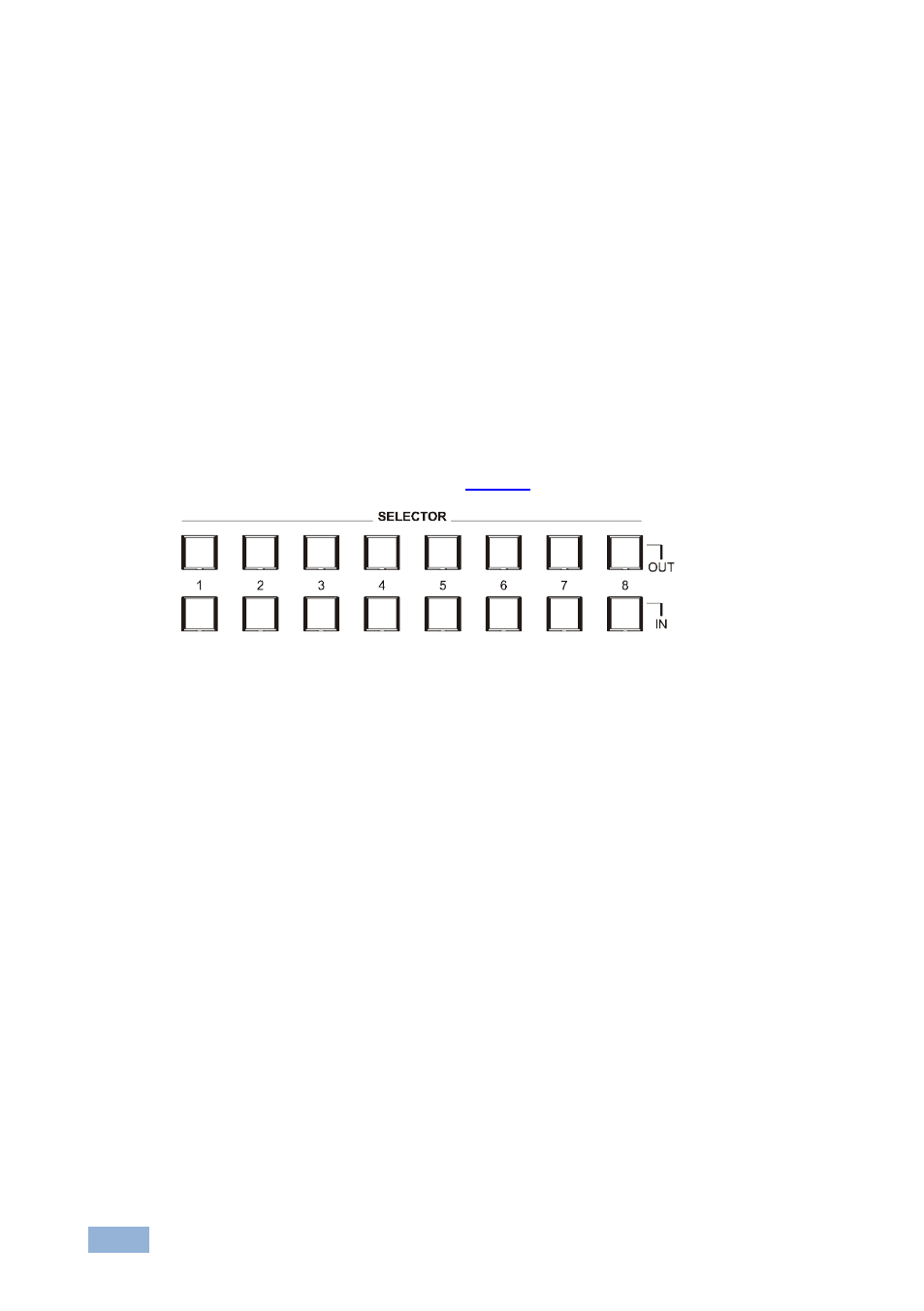

Figure 9: Storing and Recalling using the Input/Output Buttons
6.3.1 Storing an Input/Output Configuration
To store the current status in memory, do the following:
1. Press the STO button.
The STO button flashes.
2. Press one of the 16 INPUT/OUTPUT buttons (this will be the setup # in
which the current status is stored). If in the Confirm mode, press the flashing
TAKE button to confirm the action.
The memory stores the data at that reference.
6.3.2 Recalling an Input/Output Configuration
To recall an input/output configuration, do the following:
1. Press the RCL button.
The RCL button flashes.
