Connecting the RGBHV / Balanced Audio Matrix Switcher
16
6.1 Connecting the Balanced/Unbalanced Stereo Audio Input/Output
This section illustrates how to wire:
A balanced input/output connection (see Figure 7)
An unbalanced audio input (see Figure 8)
An unbalanced source to the balanced input on the VP-88ETH (see Figure 9)

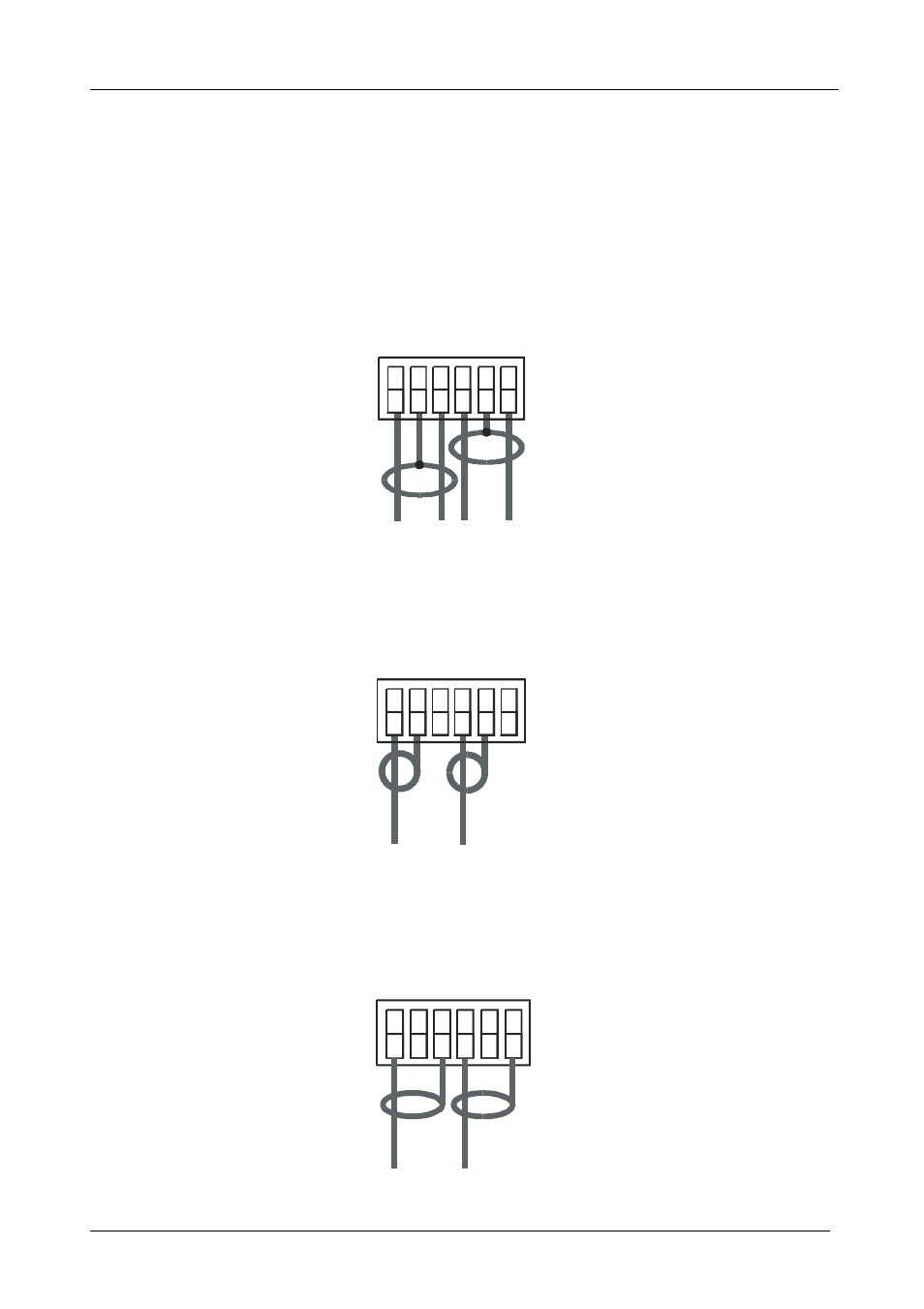

Figure 7 illustrates how to wire a balanced input/output connection:
+ +
L R
- - G G
Figure 7: Connecting the Balanced Stereo Audio Input/Output
Figure 8 illustrates how to wire an unbalanced acceptor to the balanced output
of the unit:
+ +
L R
- - G G
Figure 8: Connecting the Unbalanced Stereo Audio Output
Figure 9 illustrates how to connect an unbalanced source to the balanced input
on the VP-88ETH:
+ +
L R
- - G G
Figure 9: Connecting an Unbalanced Source to the Balanced Input
