32 VP-4x4K - Controlling via the Embedded Web Pages

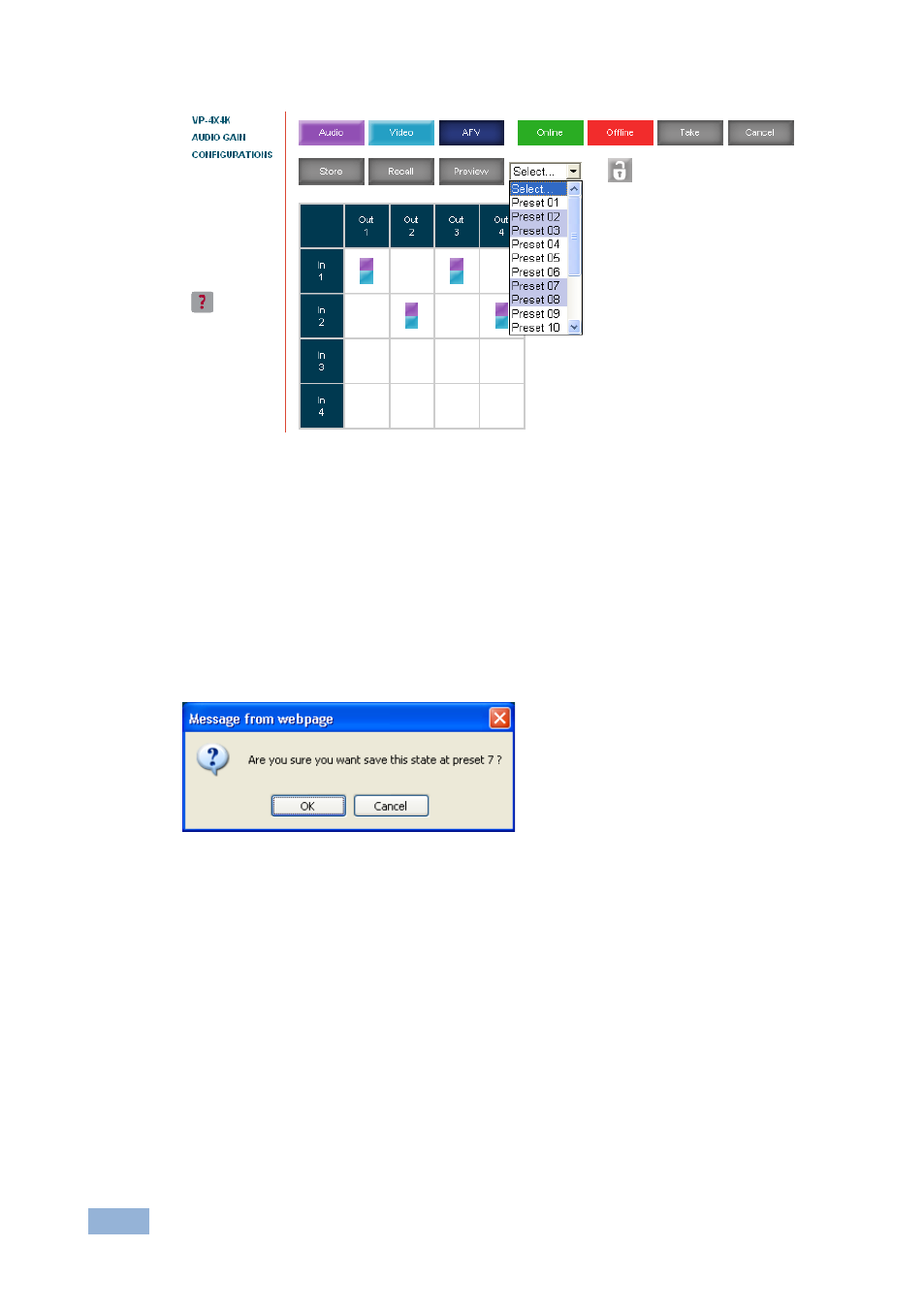

Figure 20: Selecting a preset
2. Click the Preview button to view the current setup stored in Preset 7.
3. Make sure the matrix is set to the desired configuration. If not, set it as
required.
4. Click Store.
The following window appears:
Figure 21: Save Preset Message
5. Click OK.
The new In/Out configuration is stored in Preset 07.
To recall a preset configuration:
1. Select the desired preset number from the Preset drop-down list (for
example, Preset 03):
When selecting a preset that contains a configuration, the Recall button changes from
gray to dark blue.
