Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter

7

Table 1: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Features

#

Feature

Function

1

12V DC

Connect to the 12V DC power adapter

2

LINE OUT RJ-45 Connector Connect

to

1

the LINE IN RJ-45 connector on the TP-120

2

or the VP-5R

3

XGA OUT 15-pin HD Connector

Connect to the XGA acceptor

4

INPUT 15-pin HD Connector

Connect to the XGA source

5

LEVEL trimmer

Turn to adjust

3

the output signal level

6

EQ. trimmer

Turn to adjust

3

the video EQ. (equalization) compensation

7

ON LED

Lights when the VP-200XLTHD receives power

Figure 2

and

Table 2

define the VP-200XLTHD.

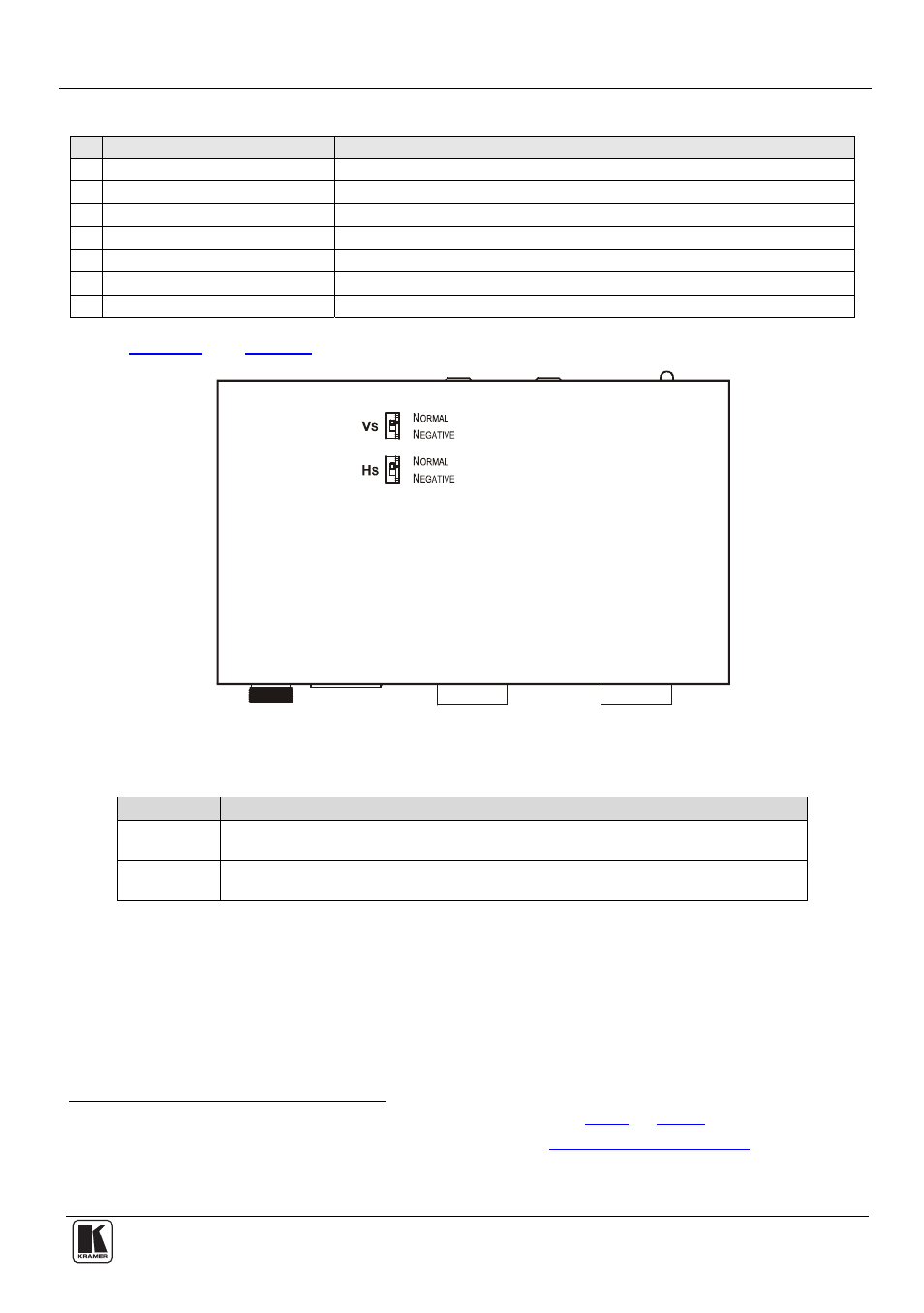

Figure 2: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Underside

Table 2: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter Underside Features

Switch

Function

VS Switch

Slide the switch downward to change the VS polarity to negative polarity

4

; slide the

switch upward to retain the polarity (default)

HS Switch

Slide the switch downward to change the HS polarity to negative polarity

4

; slide the

switch upward to retain the polarity (default)




1 Using an STP CAT 5 cable with RJ-45 connectors at both ends (the pinout is defined in

Table 7

and

Figure 9

)

2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110 available at

http://www.kramerelectronics.com

3 Insert a screwdriver into the hole and carefully rotate it, to trim the level

4 Downgoing syncs
