Defining the VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter
8
5
Defining the VP-5THD 1:4 VGA/UXGA Distributor/CAT 5
Transmitter
The VP-5THD is a high-performance distributor for computer graphics signals,
accepting one input, providing necessary buffering and isolation, and distributing
the signal to its four identical outputs, as well as transmitting it over STP CAT 5
cable to an appropriate receiver.
In particular, the VP-5THD:
• Features front panel EQ. control
• Has switches on the underside for ID Bit control
• Has a video bandwidth exceeding 440MHz, ensuring transparency even when
operating at the highest resolutions
• Has a transmission range of more than 300ft (more than 100m) over STP cabling
• Is mains fed and housed in a half-width 19" enclosure
• Has Hs and Vs polarity switches on its underside
• Supports HD signals (high-definition resolutions: 720p, 1080i and 1080p) and
SD signals
define the VP-5THD.

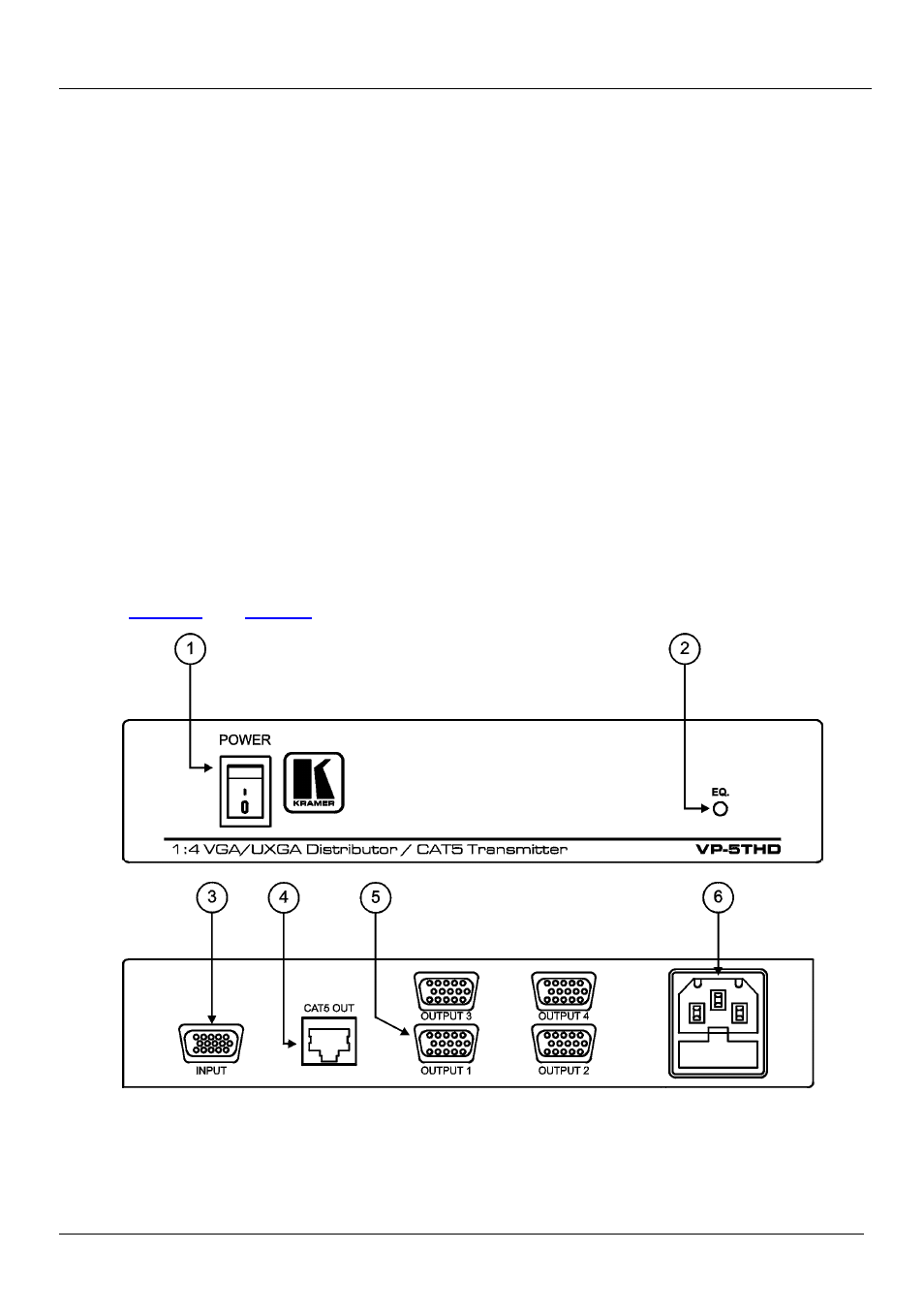

Figure 3: VP-5THD
1:4 VGA/UXGA Distributor/CAT 5 Transmitter
