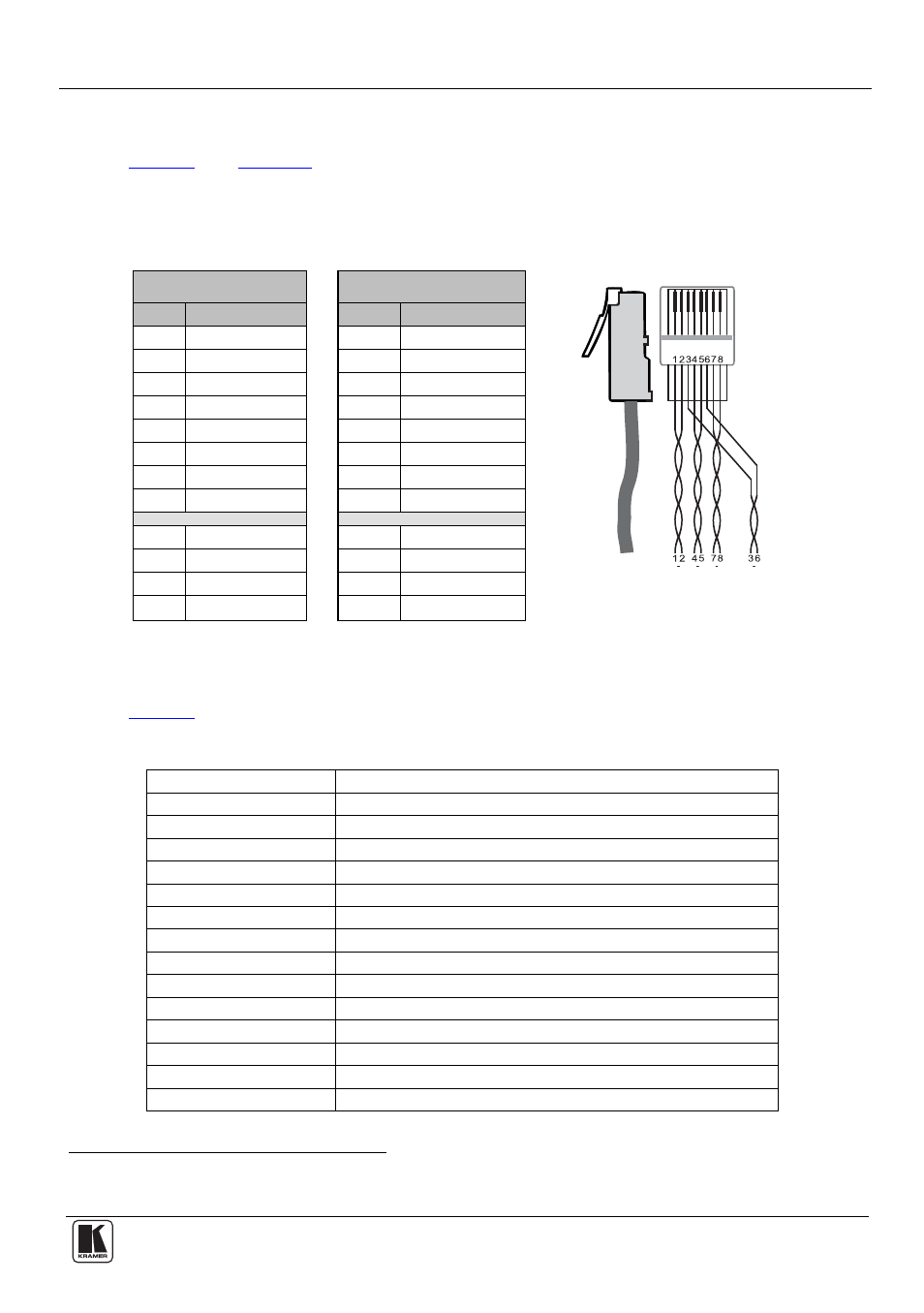

8.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
Table 7 and Figure 9 define the TP CAT 5 pinout, using a straight pin to pin cable
with RJ-45 connectors. When using STP cable, connect/solder the cable shield to the
RJ-45 connector shield.
Table 7: TP Connector Pinout
EIA /TIA 568A EIA /TIA 568B
Figure 9: TP Connector
PIN Wire Color PIN Wire Color
1 Green/White 1 Orange/White
2 Green 2 Orange
3 Orange/White 3 Green/White
4 Blue 4 Blue
5 Blue/White 5 Blue/White
6 Orange 6 Green
7 Brown/White 7 Brown/White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
9 Technical Specifications
Table 8 lists the technical specifications of the VP-200XLTHD.
Table 8: Technical Specifications
1
of the VP-200XLTHD (with 30m CAT 5 cable)
INPUT: 1 XGA on a 15-pin HD connector
OUTPUTS: 1 XGA on a 15-pin HD connector; 1 RJ-45 connector
MAX. OUTPUT LEVEL
2
: 2.4Vpp (XGA), 1.5Vpp (CAT 5)
BANDWIDTH (-3dB): 405MHz (XGA)
RESOLUTION: Up to UXGA, up to 1080p
DIFF. GAIN
2
: 0.03% (XGA), 3.3% (CAT 5)
DIFF. PHASE
2
: 0.03Deg (XGA), 0.3Deg (CAT 5)
K-FACTOR
2
: <0.02% (XGA and CAT 5)
S/N RATIO
2
: 78dB (XGA), 71dB (CAT 5)
CONTROLS 2 : XGA: LEVEL: –1.6dB to +1.9dB; EQ.: 0 to 4dB @50MHz
COUPLING
2
: DC (XGA), AC (CAT 5)
POWER SOURCE: 12V DC, 105mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98”) W, D, H
WEIGHT: 0.3kg (0.67lb) approx.
ACCESSORIES: Power supply
1 Specifications are subject to change without notice
2 For the VP-200XLTHD to TP-120 SETUP
