Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter
6
4 Defining the VP-200XLTHD XGA Line Amp/CAT 5 Transmitter
The VP-200XLTHD is a high-performance XGA line amp/CAT 5 transmitter that
accepts one computer graphics (XGA) input, provides necessary buffering and
isolation, and distributes the signal to the 15-pin HD connector output, as well as
transmitting it over STP cable to its appropriate receiver.
In particular, the VP-200XLTHD:
• Can also accept HD signals (high-definition resolutions: 480p, 576p, 720p,
1080i and 1080p)
• Has a transmission range of more than 300ft (100m) over STP cabling
• Has a video bandwidth exceeding 400MHz, ensuring transparency even when
operating at the highest resolutions
• Includes output level control and cable equalization control, via two trimmers
on the front panel of the unit
Figure 1 and Table 1 define the VP-200XLTHD.

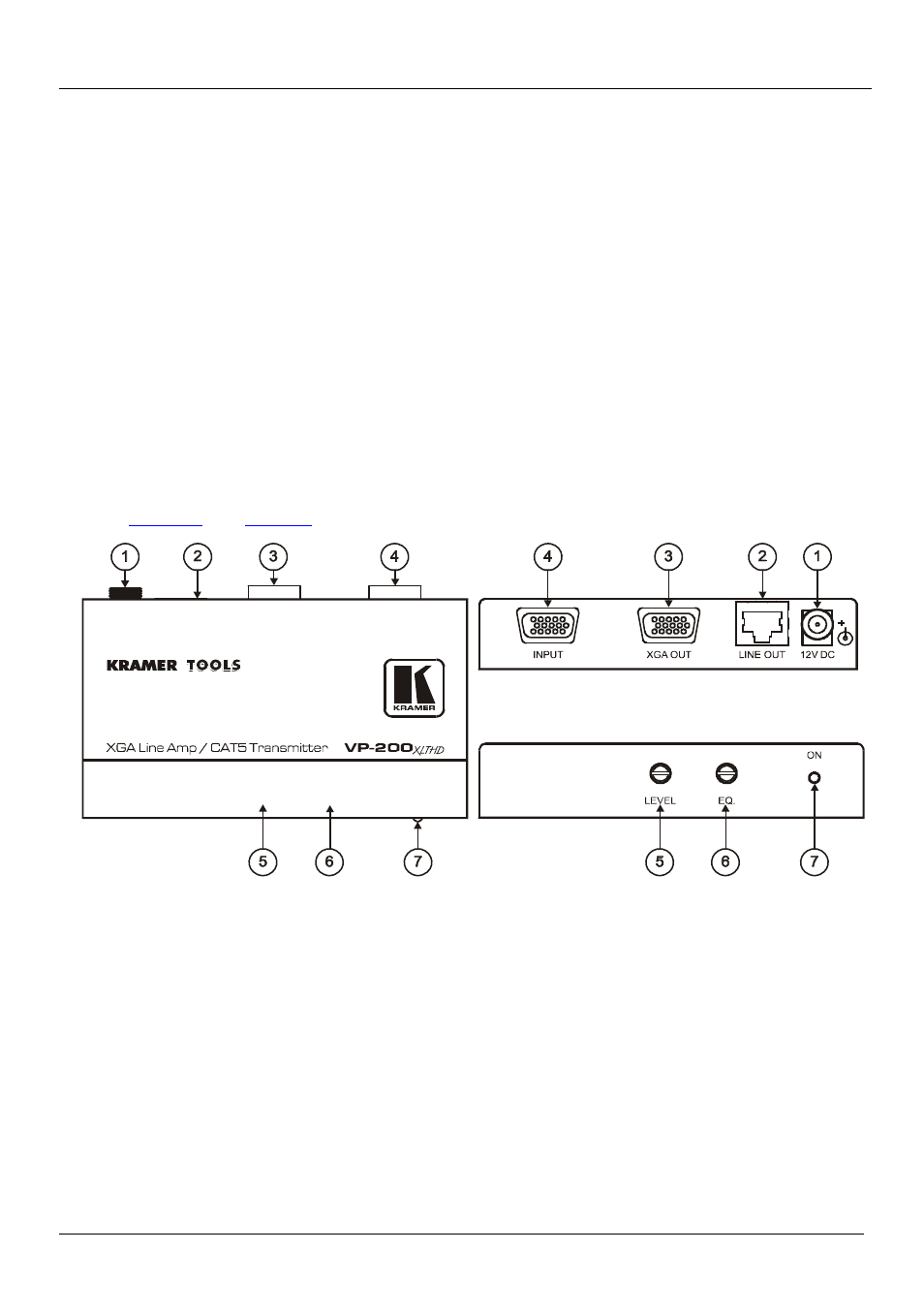

Figure 1: VP-200XLTHD XGA Line Amp/CAT 5 Transmitter
