Defining the VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter
9
Table 3: VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 EQ. Trimmer Turn to adjust
1
the video EQ. (equalization) compensation
3 INPUT 15-pin HD Connector Connect to the VGA/UXGA source
4 CAT 5 OUT RJ-45 Connector Connect to
2
the LINE IN RJ-45 connector on the VP-5R
5 OUTPUT 15-pin HD Connector Connect to the VGA/UXGA acceptor(s) (from 1 to 4)
6 Power Connector with Fuse Connect to the AC mains using the supplied power cable
Figure 4 and Table 4 define the underside of the VP-5THD 1:4 VGA/UXGA
Distributor/CAT 5 Transmitter.

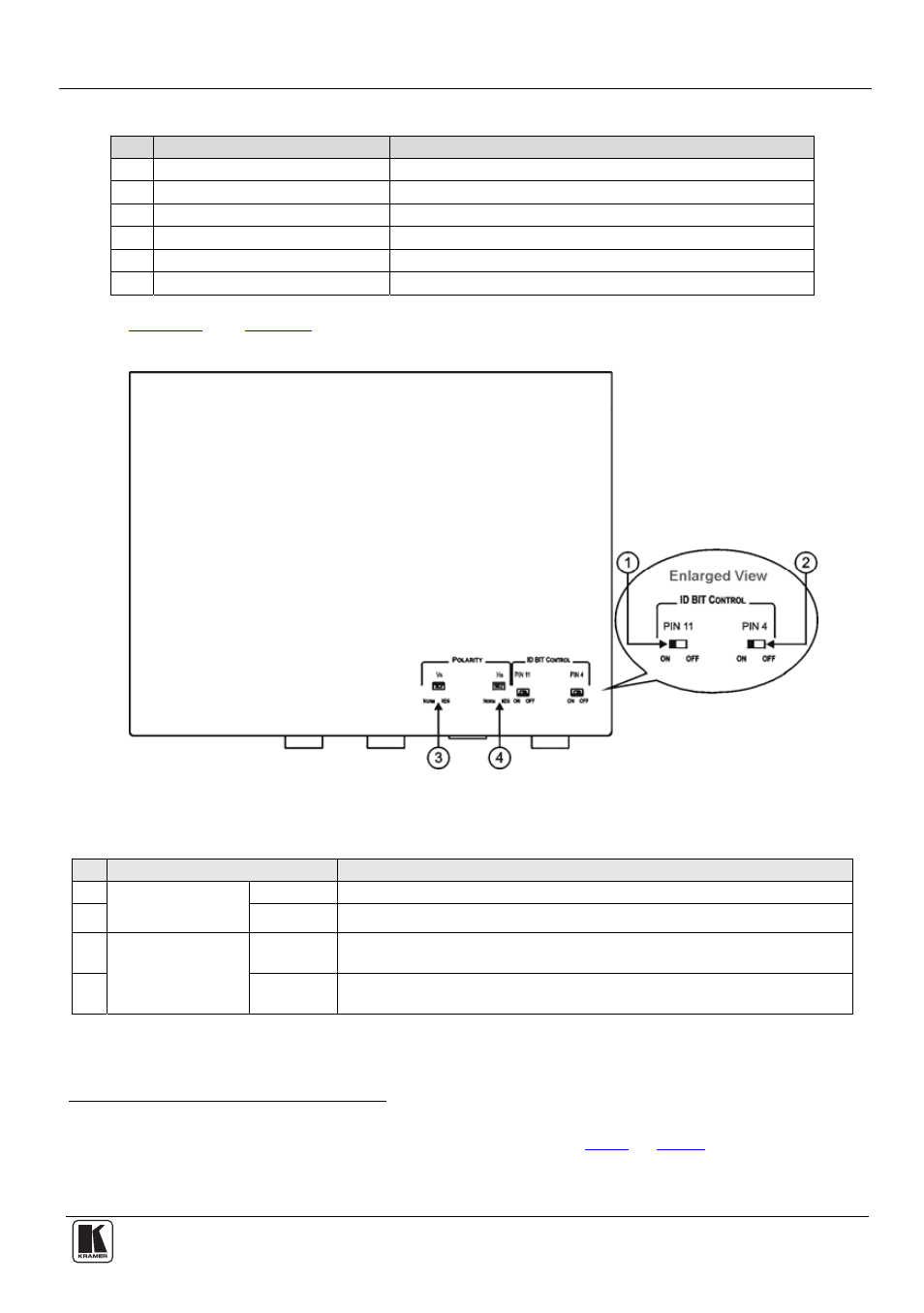

Figure 4: VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter Underside
Table 4: VP-5THD 1:4 VGA/UXGA Distributor/CAT 5 Transmitter Underside Features
# Feature Function
1
ID BIT CONTROL
Switches
PIN 11 Slide to the left to set to ON
3
; to the right to set to OFF
2 PIN 4 Slide to the left to set to ON
3
; to the right to set to OFF
3
POLARITY
Switches
VS Switch Slide the switch to the right to change the VS polarity to negative polarity
4
;
slide the switch to the left to retain the polarity (default)
4 HS Switch Slide the switch to the right to change the HS polarity to negative polarity
4
;
slide the switch to the left to retain the polarity (default)
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Using an STP CAT 5 cable with RJ-45 connectors at both ends (the pinout is defined in Table 7 and Figure 9 )
3 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
4 Downgoing syncs
