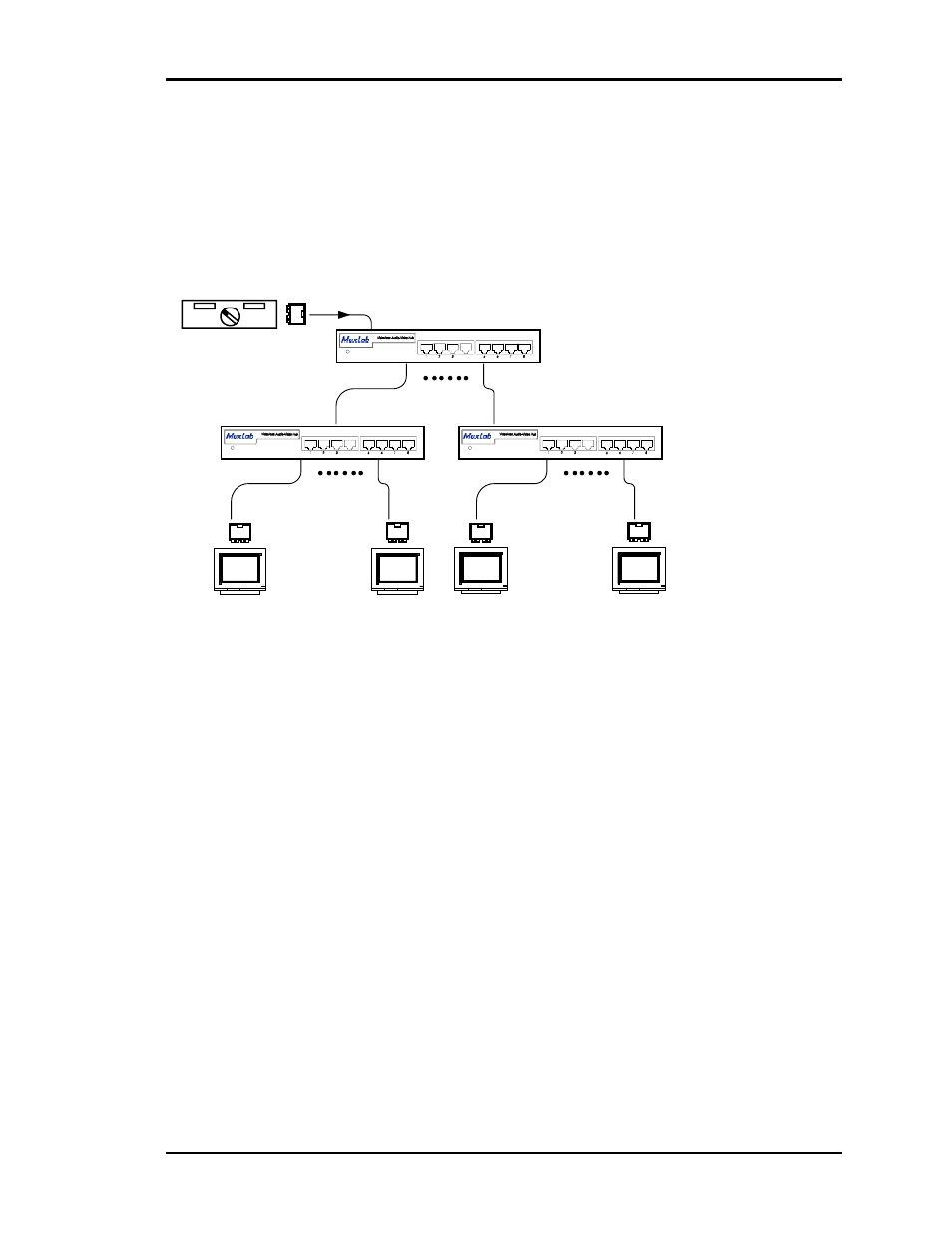

Another way of expanding the audio/video distribution network is to cascade the hubs in
a tree topology. Each of the nine outputs is identical and any of these ports may be con-
nected to the Input Port of another hub. In the example below, nine hubs may be used to
distribute an audio-video program to up to 64 audio-video monitors in a classroom or
corporate training environment.
VideoEase Stereo
Video Balun (500001)
DVD or VCR
57 64
Cat 5 TP (3-Pair)
Composite or Component
Audio/Video Monitors
1 8
Classroom A Classroom H
Cat 5 TP (3-Pair) Cat 5 TP (3-Pair)
