Active Balun exceeds 1.5 VDC, the red LED will
light up. If this occurs and there is image distortion,
correct the problem by installing additional ground
loop blocking equipment or eliminating the voltage
differential. If there is no image distortion, the
Active Balun will continue to function normally and
there is no need to take corrective action.

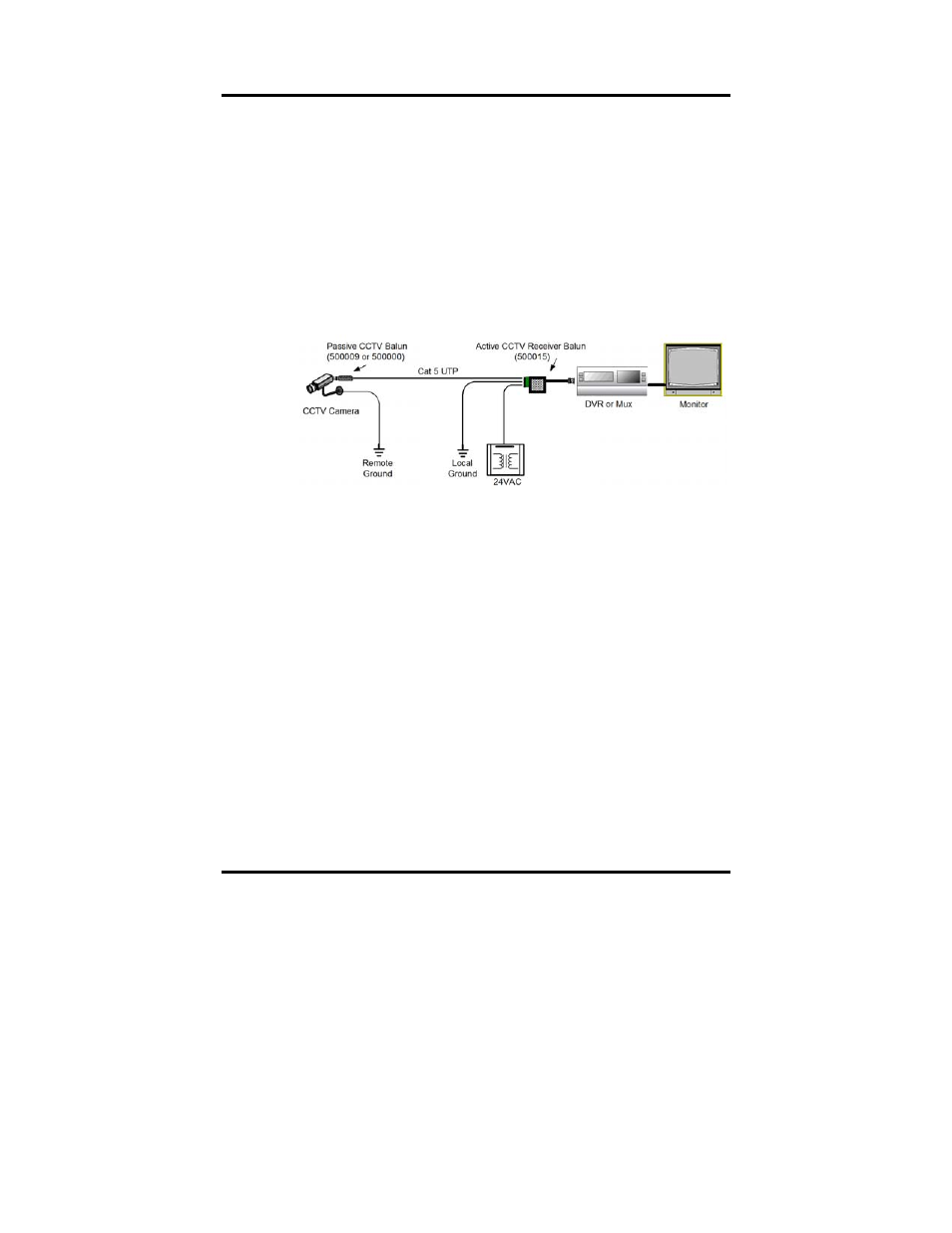

11. The following diagram illustrates a typical
configuration.
12. The Active Balun is equipped with resettable fuses
to protect the circuitry. In the event of a power
surge, the fuse(s) will trip and the green LED will
dim. In order for the fuse(s) to reset, the power to the
Active Balun must be turned OFF for 2-3 minutes.
The fuse(s) will then reset and the power can be
turned on again.
