RMS Technologies IMDP 23 W/ POLE DAMPING TECHNOLOGY*NEW* - Manual (Page 8)

RMS Technologies Page 8 Version 1.04
IMDP23/IMDEP23 Manual 8/4/2010

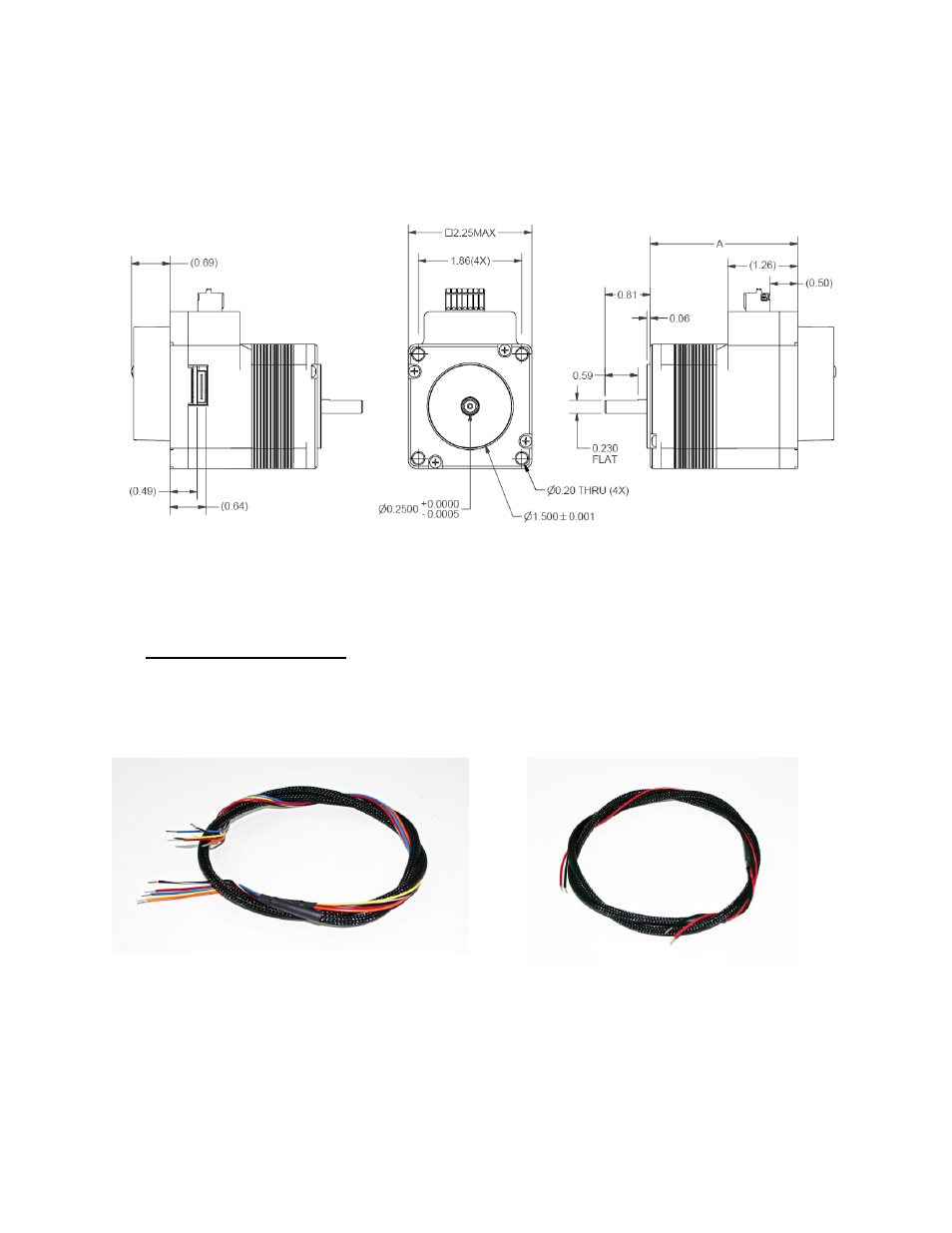

Dimensions of IMDEP23 with Encoder
Figure 2: Encoder drawing
5
PIN ASSIGNMENTS
Along with the IMDP23 unit, you should’ve received the following cables. Lead wires can be
inserted into the 7-pin connector by pressing down on the orange spring. Lead wires sizes
allowed are from AWG 20 to AWG 26.
RMS p/n: 090-00214 RMS p/n: 090-00215
Figure 3: 5-wire cable for step, direction,
disable, 5V output & opto supply
Figure 4: 2-wire cable for Power & Ground
Note: A 7-pin Phoenix mating connector is provided with each unit.
Phoenix P/N: 1881370
Digikey P/N: 277-1435-ND
Description: Connector terminal block plug 2.5 mm 7 position
