RMS Technologies Page 22 Version 1.04
IMDP23/IMDEP23 Manual 8/4/2010
10 APPENDIX
Recommended Cable Configurations: DC Supply to Driver
Cable length, wire gauge and power conditioning devices play a major role in the
performance of your RMS Technologies Driver and Motor.
NOTE: The length of the DC power supply cable to the Driver should not exceed 50 feet.

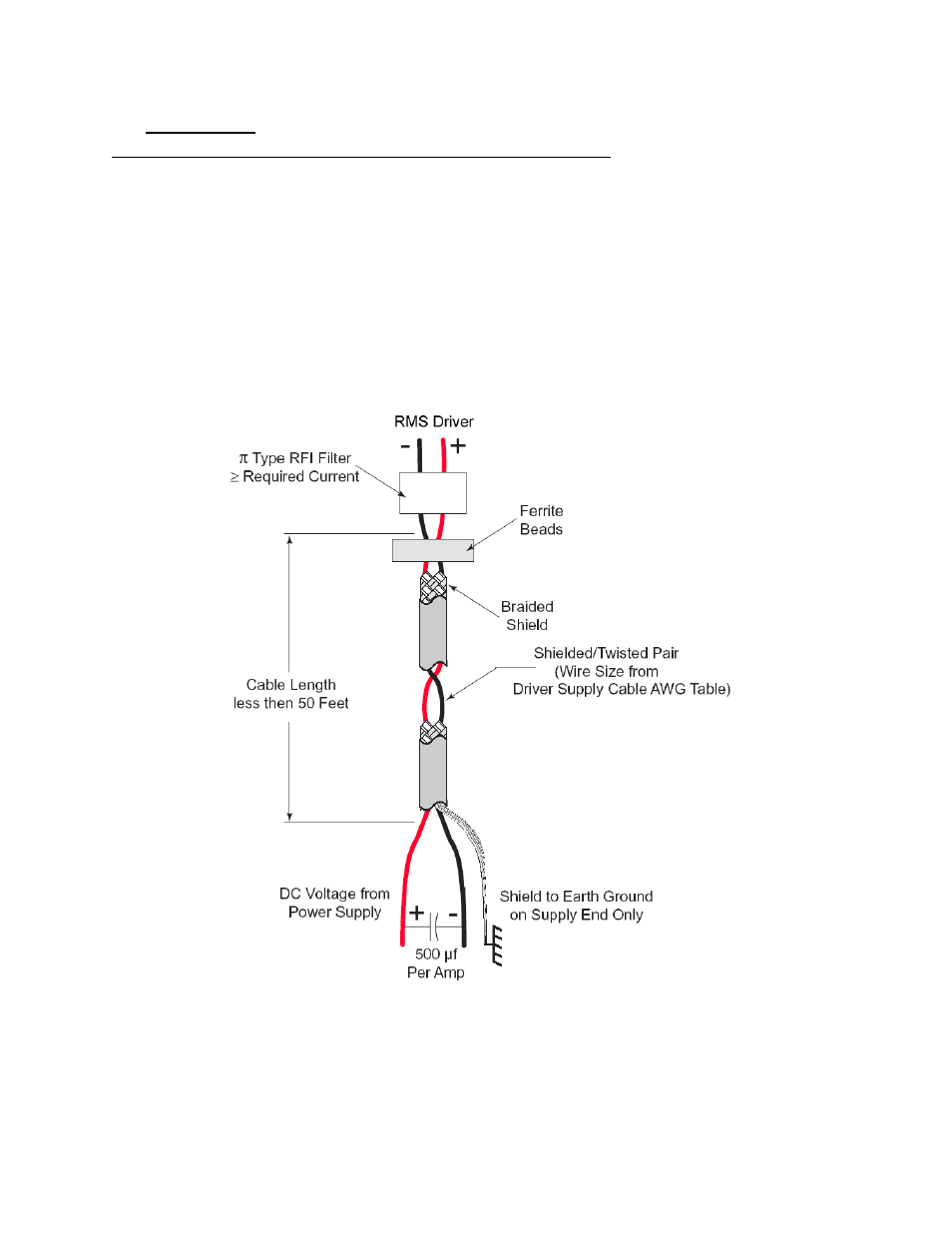

The example below demonstrates the recommended cable configuration for DC power
supply cabling less than 50 feet long.
Correct AWG wire size is determined by the current requirement plus cable length. Please
see the Driver Supply Cable AWG Table in this Appendix.
Figure 26
