MECHANICAL SPECIFICATIONS
Motor Front Shaft Extension Length: Standard length is 0.81”
Motor Shaft Diameter: Standard shaft diameter is 0.25”
Overall Body Length (A)
IMDP23-S (2.65”)
IMDP23-M (3.16”)
IMDP23-L (4.03”)
Dimensions

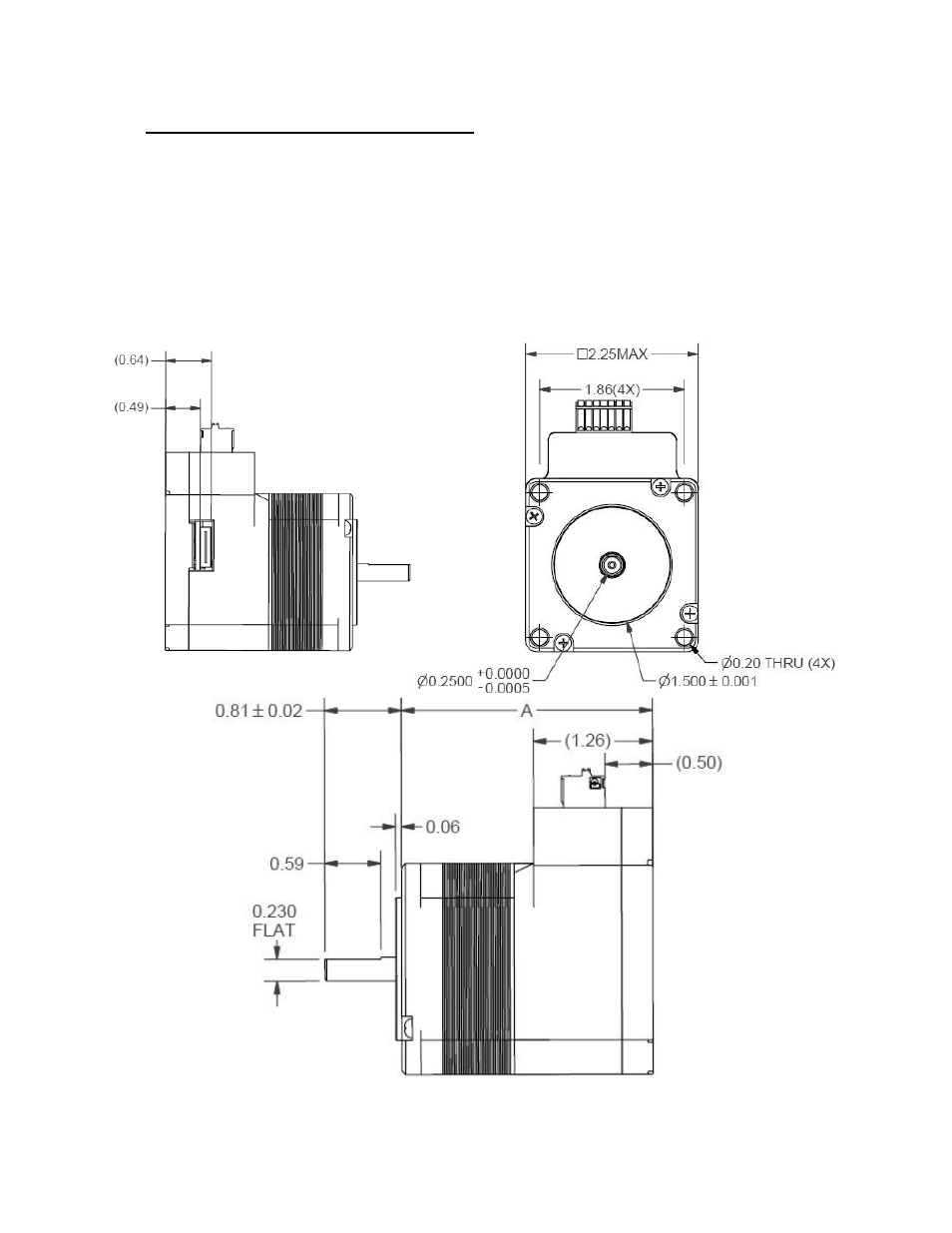

Figure 1: Dimensions Diagram
