IMD34 / IMDE34 User Manual

4/28/2009

4

MECHANICAL SPECIFICATIONS

Motor Front Shaft Extension Length
Standard length is 1.46 +/- 0.02”.

Motor Shaft Diameter
Standard shaft diameter is 0.5000” +0.0000/-0.0005, with two flats, 90° apart.

Overall Body Length (A)
Motor body length is available in various lengths

IMD34-S

(4.44”)

IMD34-M

(5.62”)

IMD34-L

(6.80”)

Dimensions

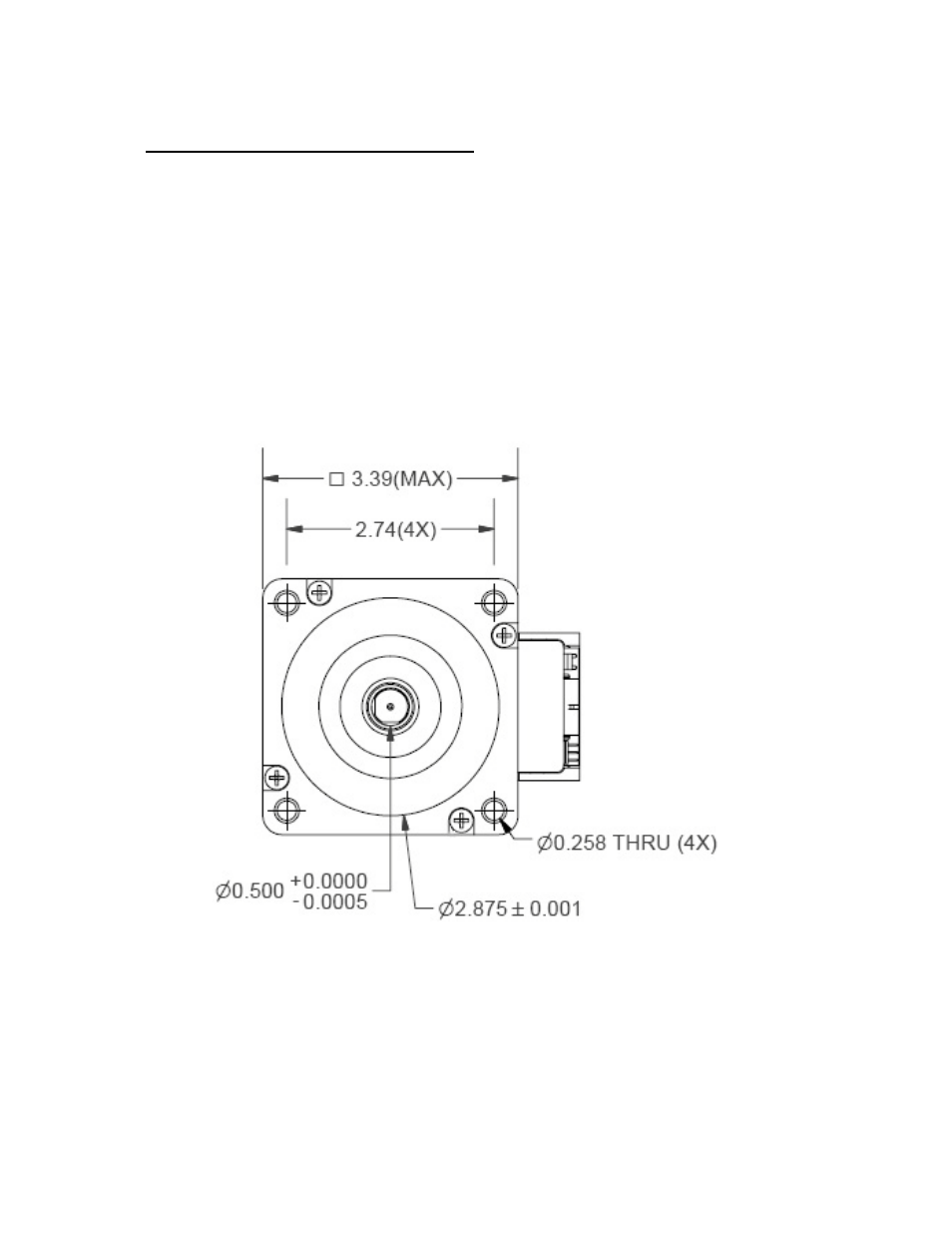

Figure 1: Front Mounting dimensions
