RMS Technologies

Page 14

Version 1.00

IMD34 / IMDE34 User Manual

4/28/2009

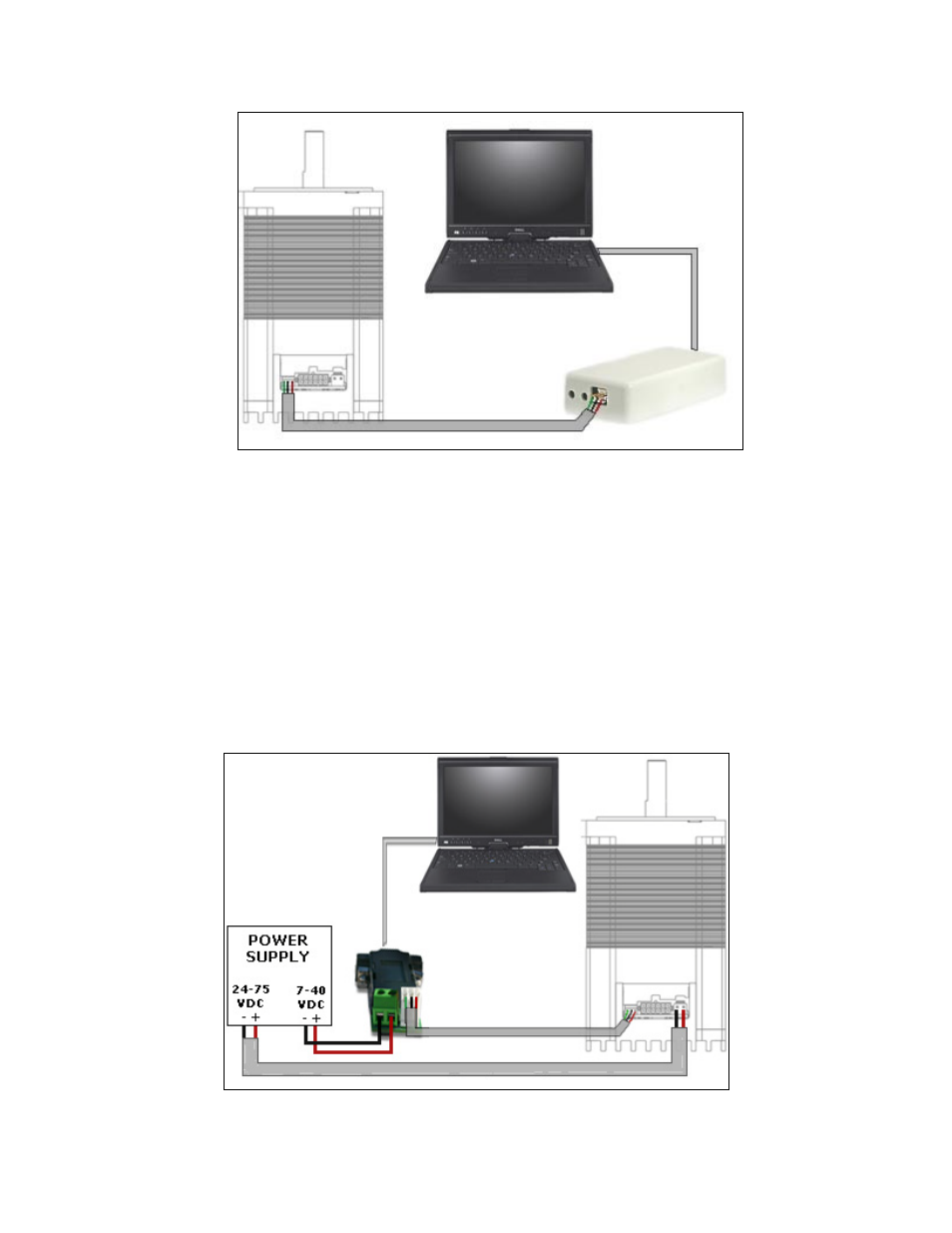

Fig 12: Connection of IMD motor to USB Card to PC

Note the COM Port number that was assigned to the converter card device by right-
clicking on “My Computer” and going to:

Hardware Tab  Device Manager  Ports (COM & LPT)  RMS Motion US485


Connecting the IMD34 to your PC via RS232

If you purchased a Designer’s Kit, then you should have received the following items:

- RS485-to-RS232 converter card (Black gray cover, DB-9 on one end)
- 3-Pin to IDC connector type of cable with flying lead wires (36 inches long)


Follow the connection schematic shown below if using the RS485-RS232 Converter card.

Fig 13: Connection of IMD motor to RS485-232 Card & PC
