Connecting Power


After downloading files for the USB485 converter card, connect main power to the
IMD34.

Using HyperTerminal To Set Motor Parameters


Open a HyperTerminal connection by going to:

All Programs  Accessories  Communications  HyperTerminal


1. Settings

Give your connection a name. It will then ask you to select the correct COM port. See
note above this section to find the COM Port number.

It should direct you to the properties of the connection. Or, click on “Configuration” in
the Properties section. Click on the default settings, or:

57600 Bits per second, 8 data bits, none parity, 1 stop bits, none flow control:

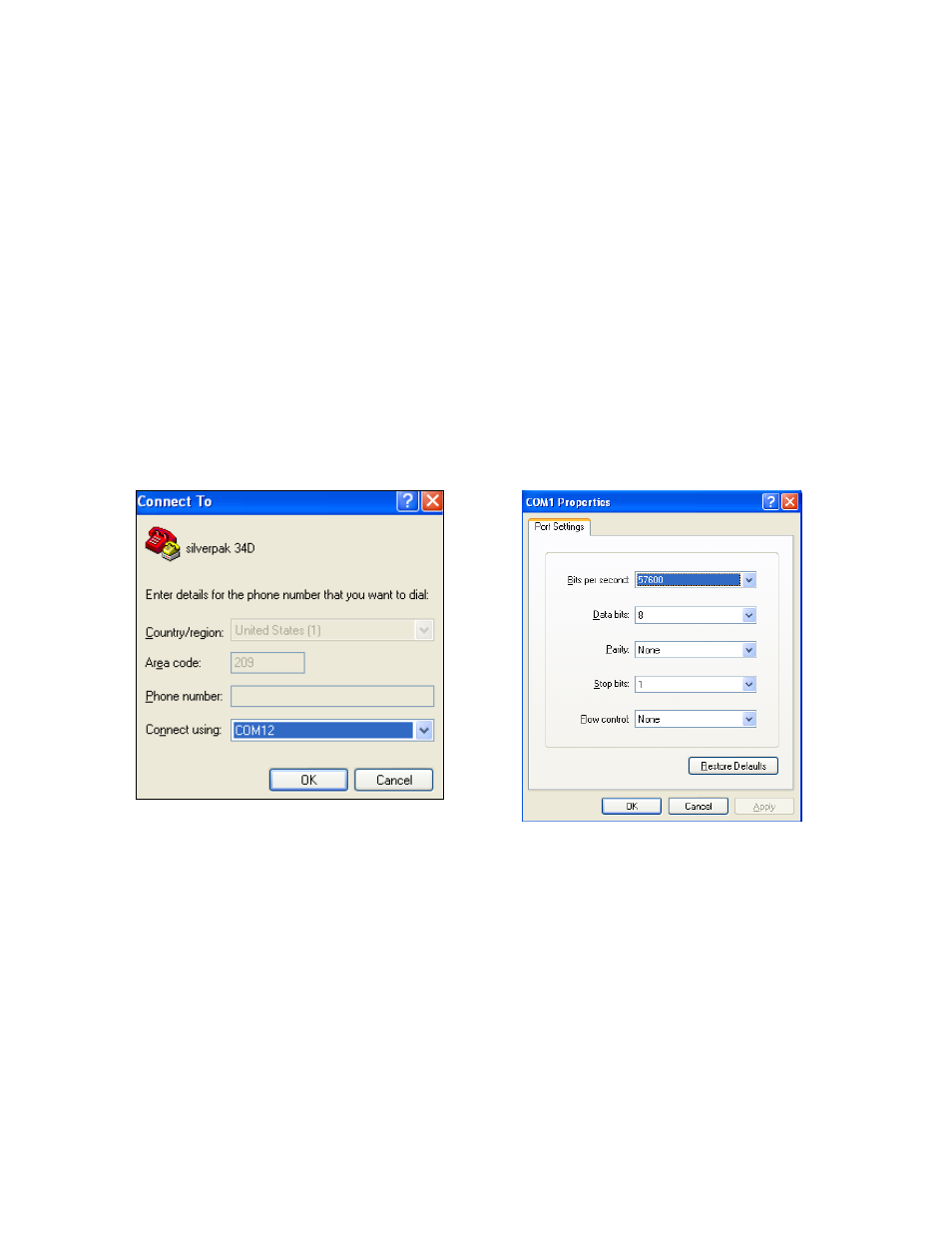

Figure 14: Selecting the COM port

Figure 15: Port settings


Next, go to File  Properties  Settings tab  ASCII setup and check box the top two
options:

Send line ends with line feeds

Echo typed characters locally
