RMS Technologies Page 25 Version 1.00
IMD34 / IMDE34 User Manual 4/28/2009

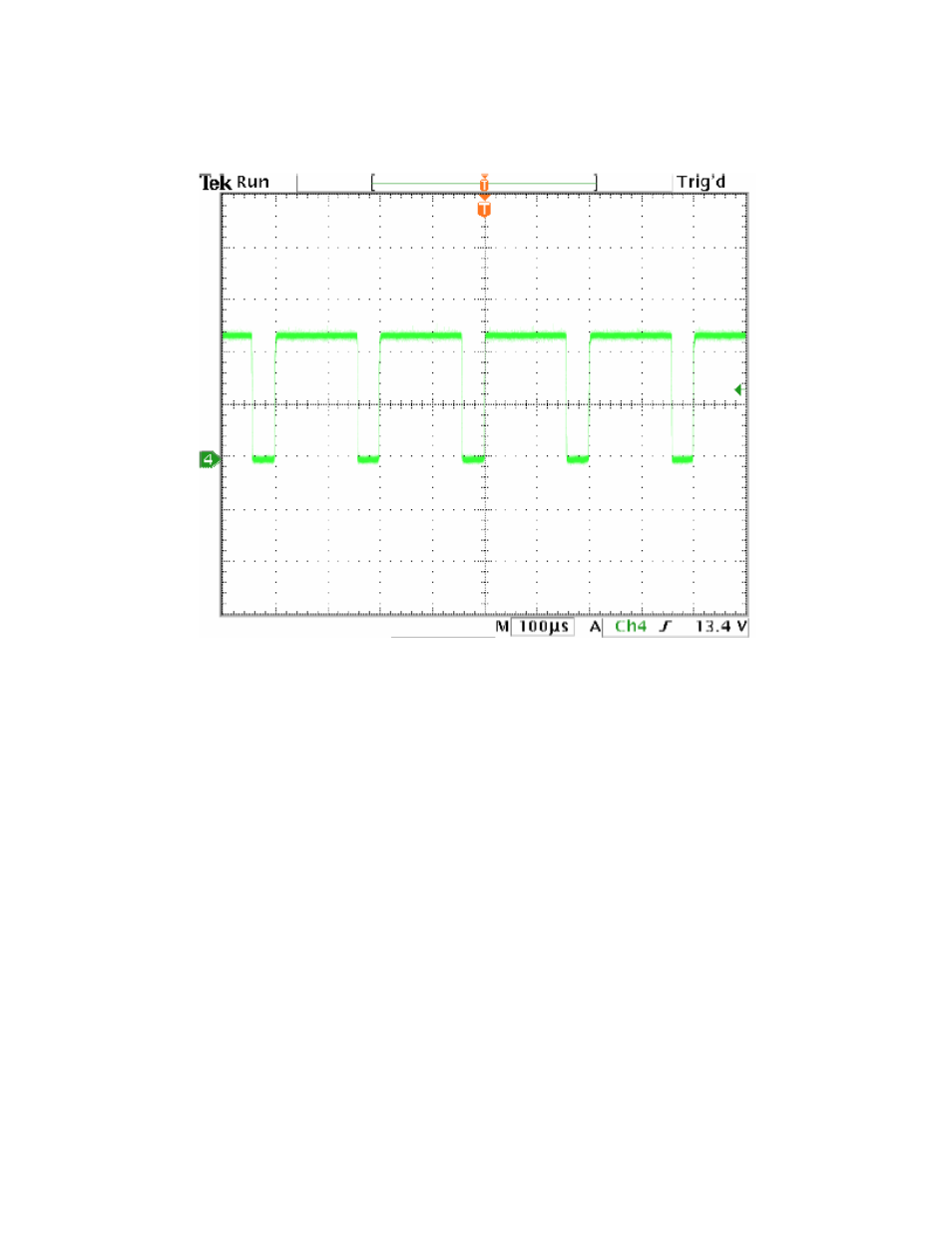

Below is an example of a good step pulse waveform where sensing the step on either edge
would be fine:
Figure 25: Example of a good waveform
