IOM Instructions HBH/V COMPACT Heat Controller, Inc.
Horizontal Installation

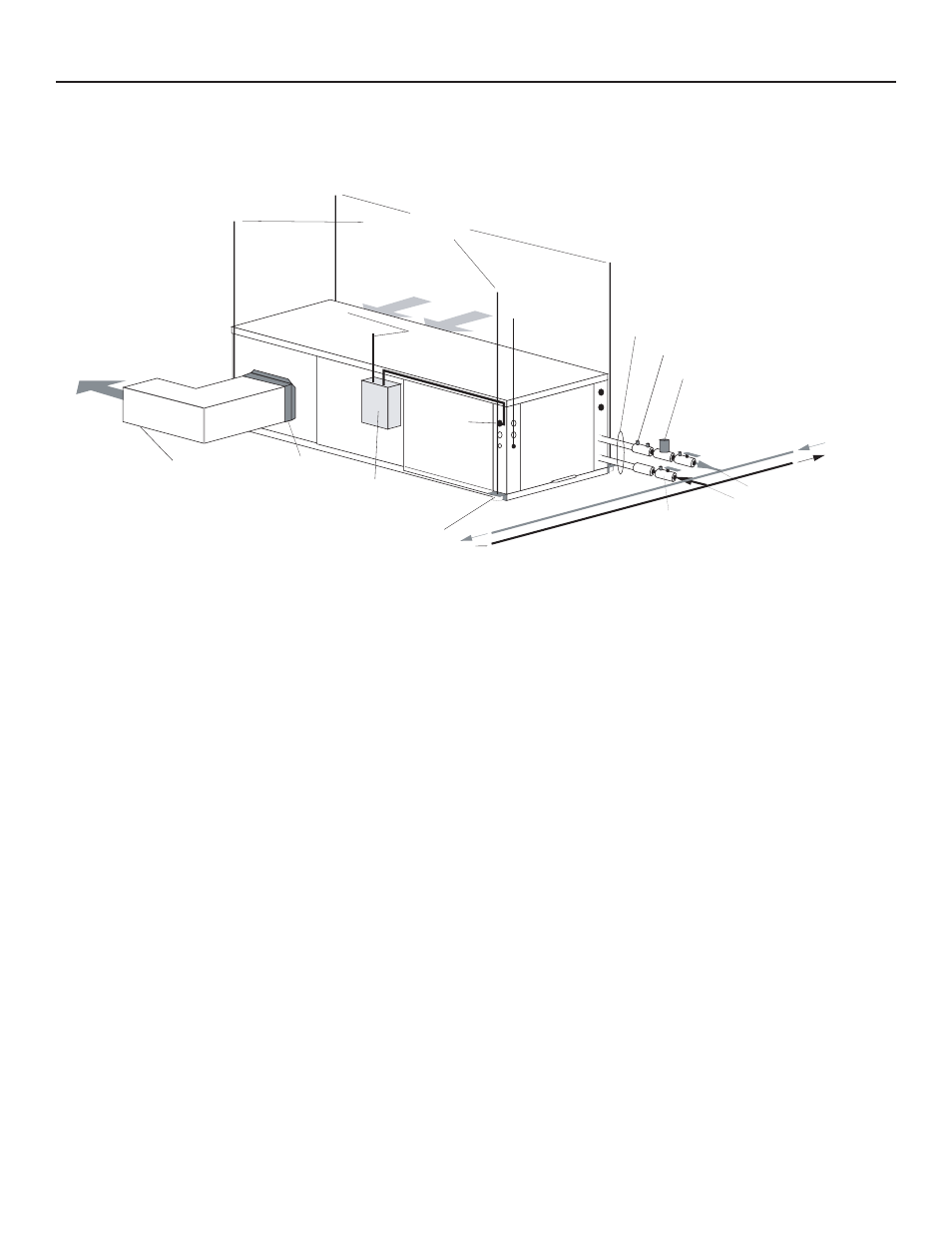

Figure 3: Typical Horizontal Unit Installation
Air Coil
To obtain maximum performance, the air coil should be cleaned
before start-up. A 10% solution of dishwasher detergent and
water is recommended for both sides of the coil. A thorough
water rinse should follow. UV based anti-bacterial systems
may damage e-coated air coils.
NOTICE! Installation Note - Ducted Return: Many horizontal
WSHPs are installed in a return air ceiling plenum application
(above ceiling). Vertical WSHPs are commonly installed in a
mechanical room with free return (e.g. louvered door). Therefore,
filter rails are the industry standard and are included on Heat
Controller, Inc., commercial heat pumps for the purposes of
holding the filter only. For ducted return applications, the filter rail
must be removed and replaced with a duct flange or filter rack.
Canvas or flexible connectors should also be used to minimize
vibration between the unit and ductwork.
HORIZONTAL INSTALLATION
(by others)
(by others)
Cableado
del termostato
Válvula compensadora opcional
Salida de agua
Entrada de agua
Válvula invertida opcional para
control de baja presión de agua
(puede montarse en forma interna)
Válvula a bola con tapón
P/T integrado opcional
Manguera trenzada de
acero inoxidable con accesorio
giratorio en “J”
Circuito
de edificación
Disyuntor de
energía de la unidad
(fabricado por terceros)
Alimentación
de energía de
la unidad
Conducto de alimentación
aislado con un codo (mínimo)
de 90 grados para reducir el
ruido del aire
Retorno de
aire
Aire de alimentación
Cableado de
alimentación
de energía
Varillas Roscadas de 3/8"
(fabricadas por terceros)
Colgador
de la unidad
Thermostat
Wiring
Optional Balancing Valve
Water In
Water Out
Optional Low Pressure Drop Water
Control Valve
(can be internally mounted
on some models)
Ball Valve with optional
integral P/T plug
Stainless steel braid hose
with integral "J" swivel
Building
Loop
Unit Power
Disconnect
Power Wiring
Insulated supply duct with
at least one 90 deg elbow
to reduce air noise
Return Air
Supply Air
Unit Hanger
3/8" [10mm] threaded rods
Unit Power
Flexible Duct
Connector
Figure 3: Typical Horizontal Unit Installation
Stainless steel braided hoses with
threaded connections
and one swivel end
