IOM Instructions

HBH/V COMPACT

Heat Controller, Inc.

Unit Operating Pressures and Temperatures

Table 9: Water Temperature Change Through Heat Exchanger

Water Flow, gpm [l/m]

Rise, Cooling

°F, [°C]

Drop, Heating

°F, [°C]

For Closed Loop: Ground Source or

Closed Loop Systems at 3 gpm per

ton [3.2 l/m per kW]

9 - 12

[5 - 6.7]

4 - 8

[2.2 - 4.4]

For Open Loop: Ground Water

Systems at 1.5 gpm per ton

[1.6 l/m per kW]

20 - 26

[11.1 - 14.4]

10 - 17

[5.6 - 9.4]

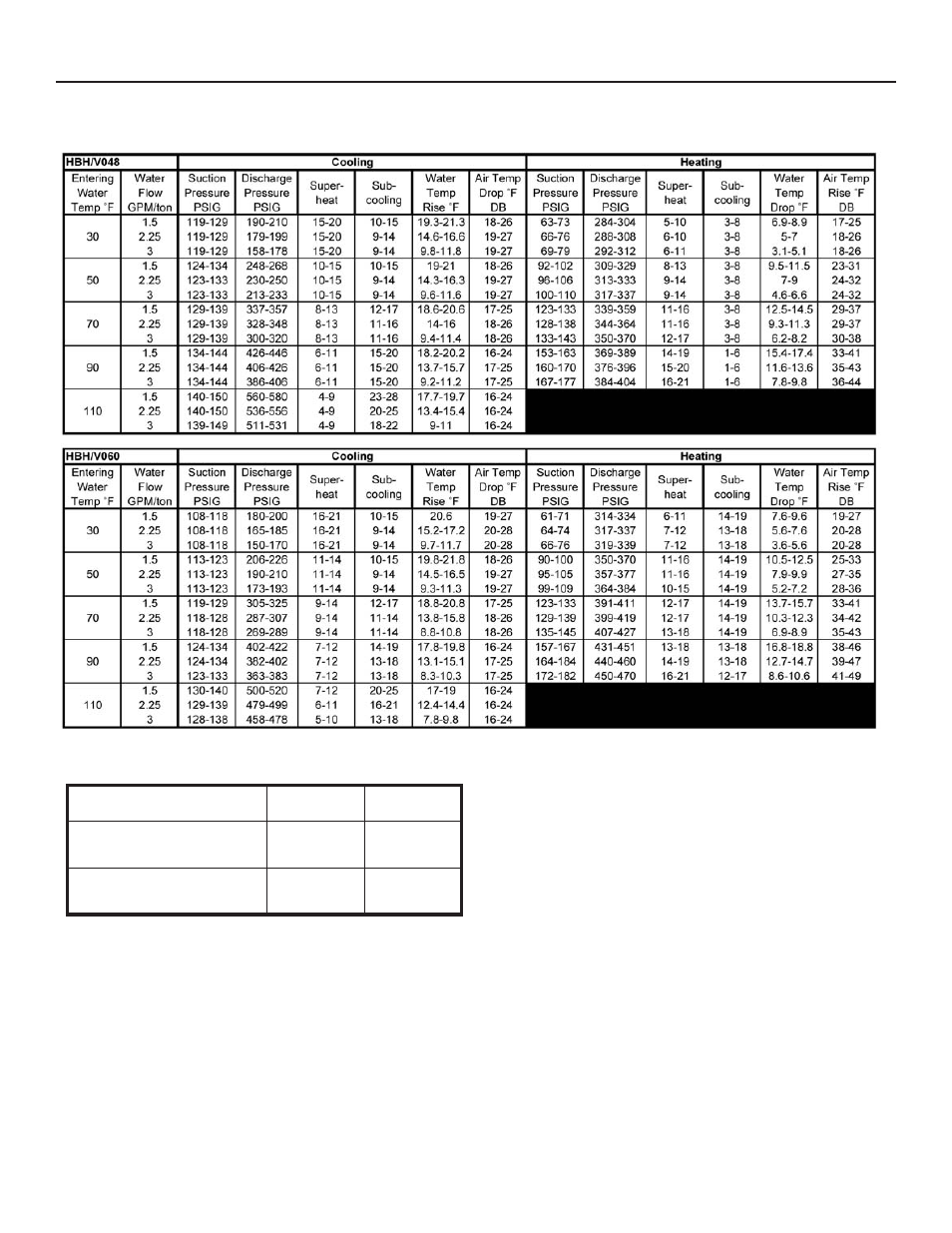

Table 8d: HB Series Typical Unit Operating Pressures and Temperatures (60 Hz-I.P. Units)
