Step 4 Step 4 Step 4
Step 5 Step 5 Step 5

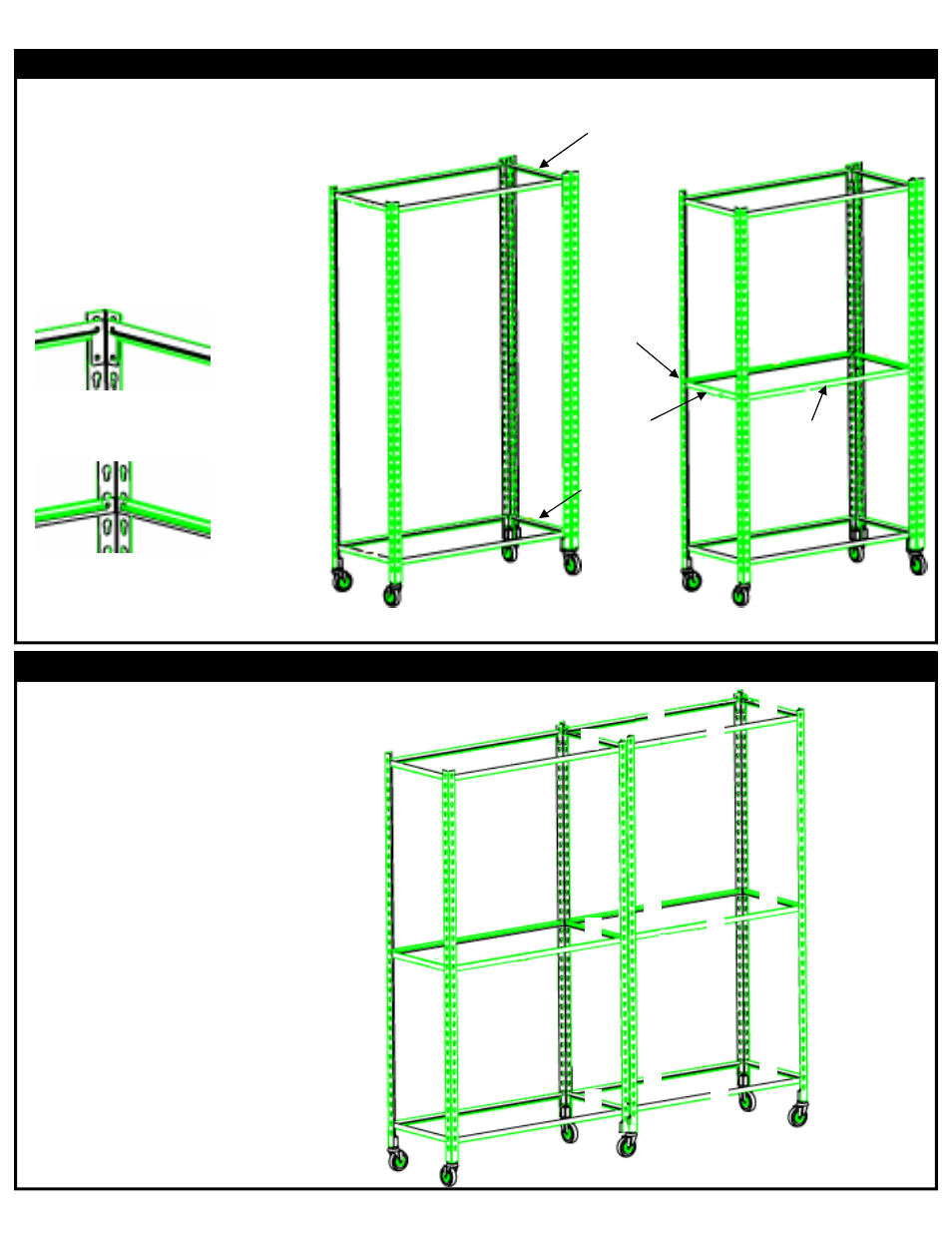

Connect the front frame to the rear
frame, using 2 Rivet, 15” braces.
Add the center supports, using the
1 Rivet, 33” long Beams and 1
Rivet, 15” long Braces. Install in
the 20th holes from the top of the
Post.
Use the 15” long, 2 Rivet Braces for the
top and bottom connections
Use the 33” long, 1 Rivet Beams and the
15” long, 1 Rivet Braces for the center
connections
15” long,
1 Rivet Brace
33” long,
1 Rivet Beam
15” long,
2 Rivet Brace
15” long,
2 Rivet Brace
20th hole
from post
top
Construct a matching unit using the
Double Posts to build from.
As before, begin using the 2 Rivet, 33”
long Beams and the 2 Rivet, 15” long
Braces on the top and bottom.
Once the top and bottom is complete, add
the center supports, using the 1 Rivet, 33”
long Beams and the 1 Rivet, 15” long
Braces. Once again, install them in the
20th holes from the top of the Post.
15” long,
2 Rivet Braces
15” long,
1 Rivet Braces
33” long,
1 Rivet Beams
33” long,
1 Rivet Beams A
