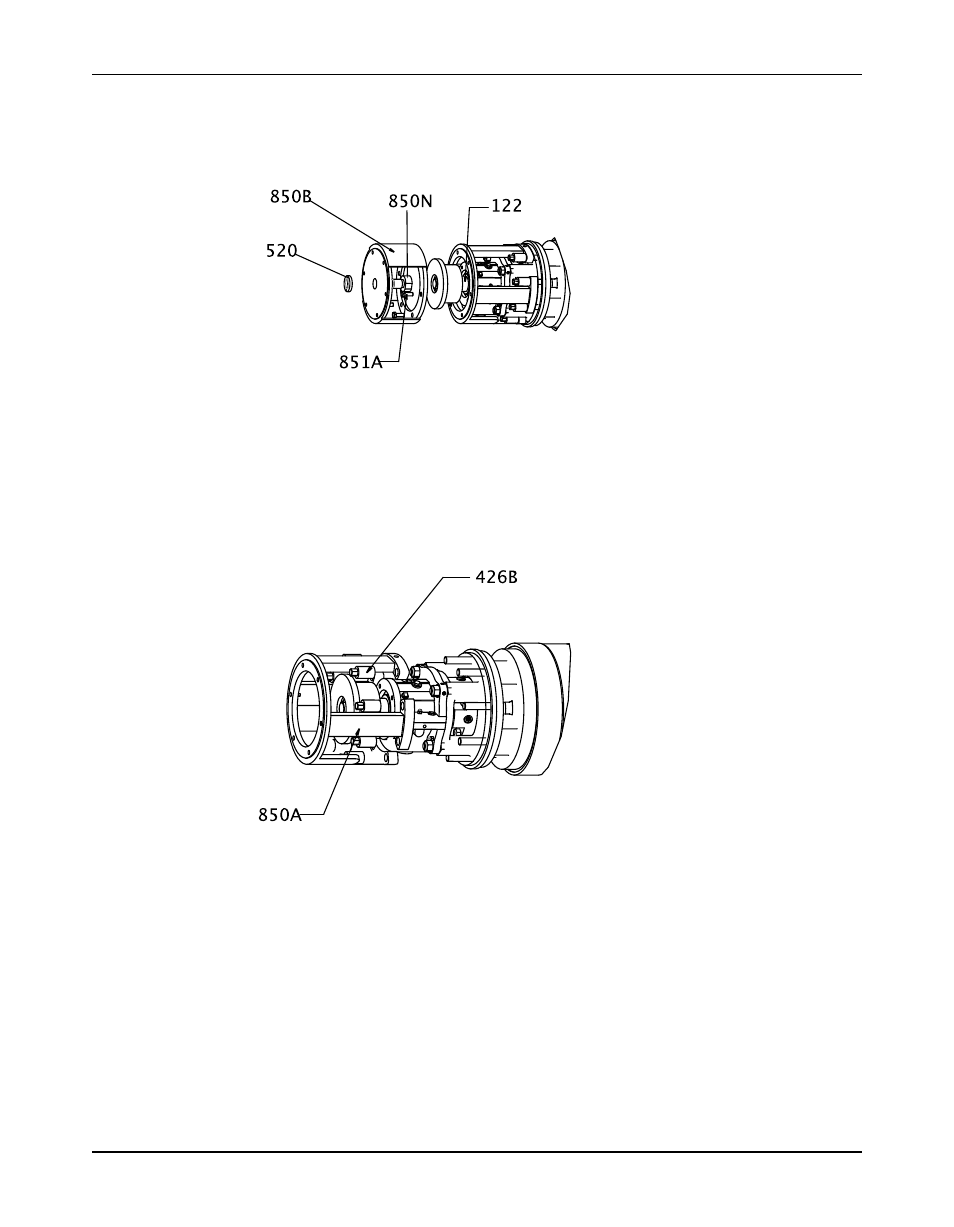

Prepare for Bundle Disassembly

1. If disassembly cradle was not used, proceed to step 4. Remove the coupling nut (520).

2. For disassembly cradle only, loosen and remove bolts (851A) and remove extension tie

(850B).

3. For disassembly cradle only, remove stub shaft extension tie (850N).
4. For disassembly cradle only, loosen and remove suction cover nuts (426B) and remove

extension adapter (850A).
