Maintenance

c) Add or subtract shims (390C & 390M) until axial movement is between 0.010 and 0.015

inches (0.254 and 0.381 mm).

20. For pumps with oil pump only, if not already installed, install coupling key and coupling

onto oil pump shaft. Tighten set screw. Install coupling sleeve (ensure snap ring is in place)
over oil pump coupling hub.

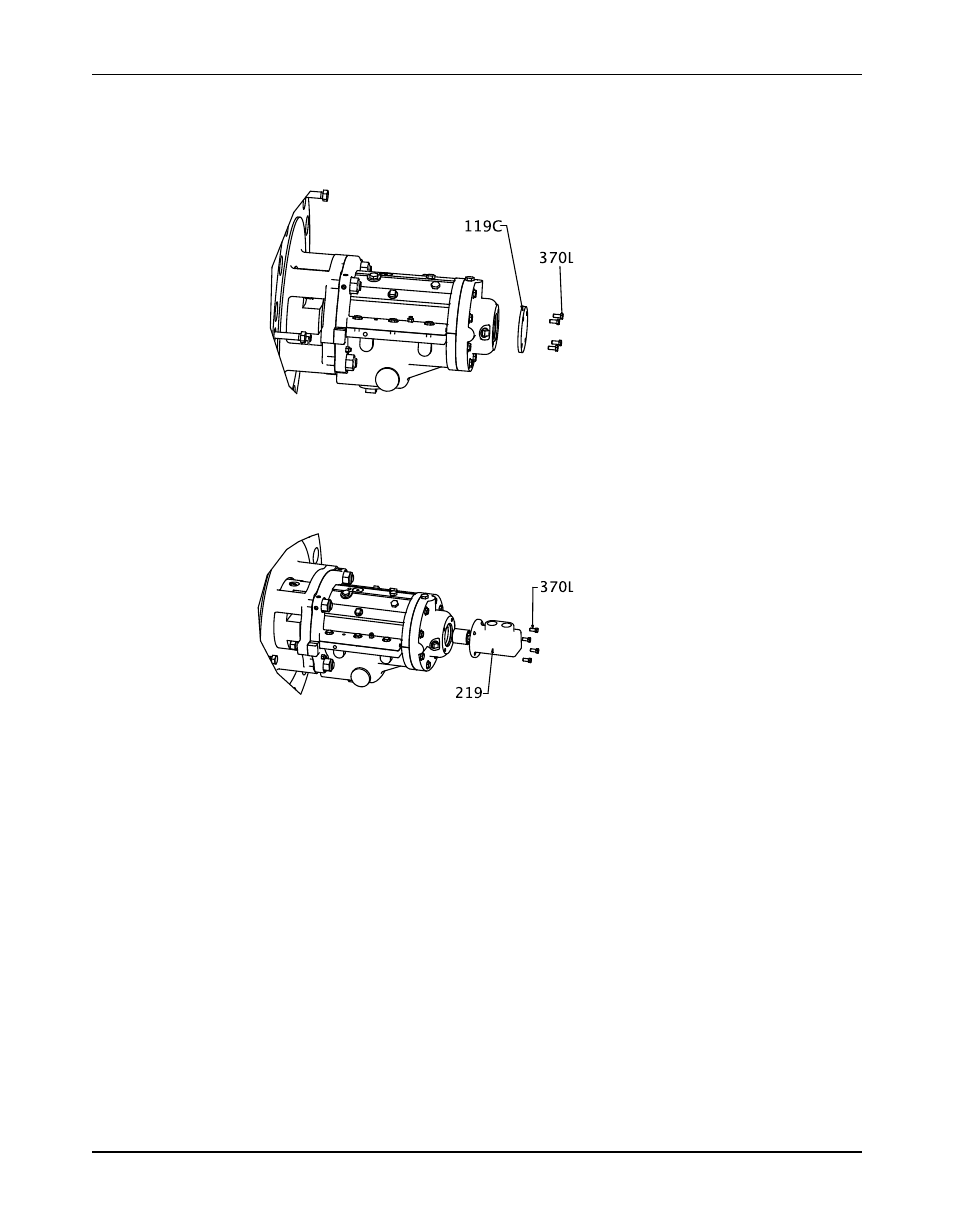

21. Install oil pump (219), if supplied, or endplate (119C). If an oil pump is being installed,

ensure coupling sleeve engages coupling hub on pump. Tighten bolts (370L).
