WallVIEW HD-19 DVI/HDMI Manual 342-0267 Rev. C Page 8 of 24

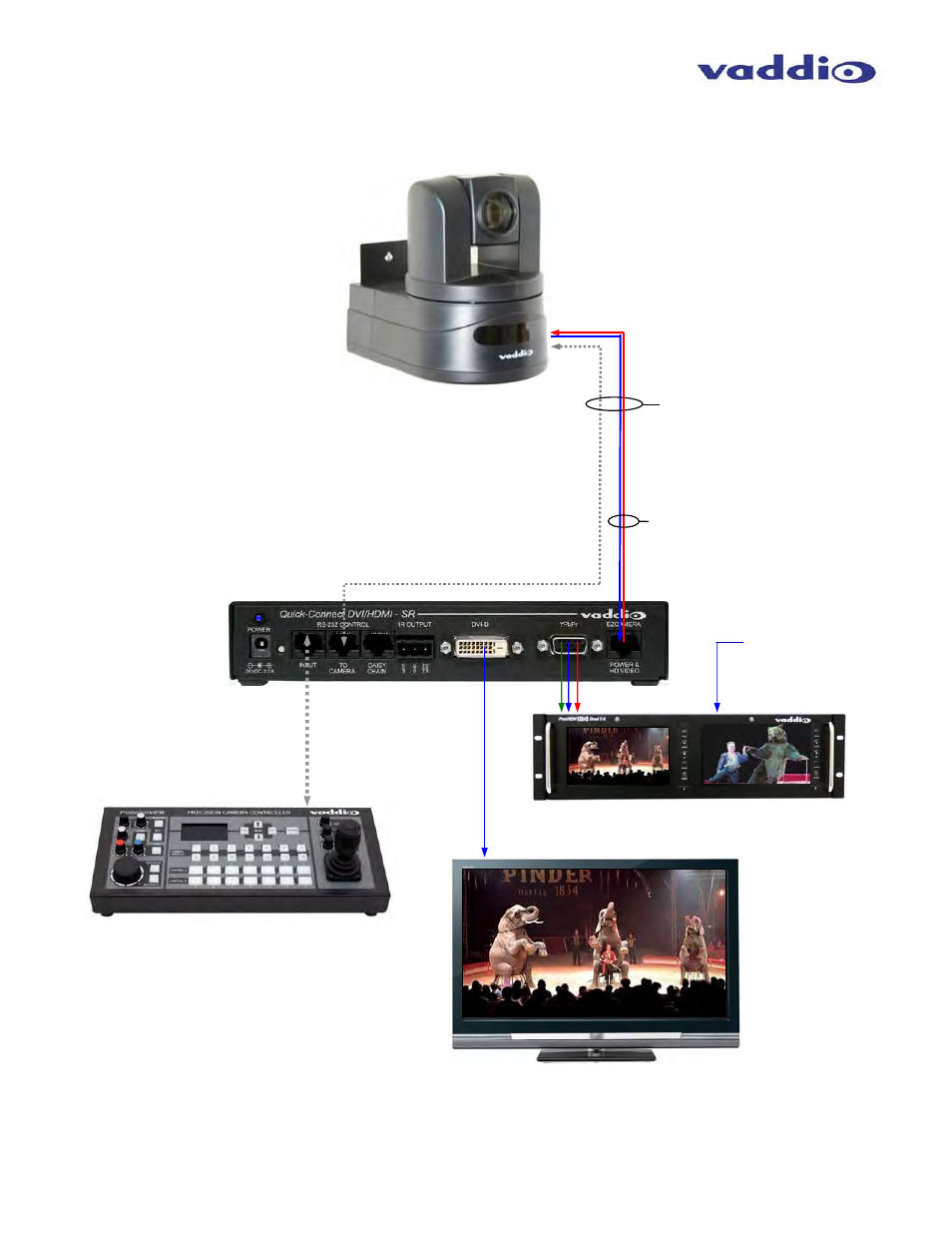

System Connectivity Example 1:
Basic system connectivity of a Vaddio WallVIEW™ DVI/HDMI HD-19 and Quick-Connect DVI/HDMI SR Interface
with Vaddio ProductionVIEW™ Precision Camera Controller and PreVIEW HD Monitors.
WallVIEW DVI/HDMI
HD-19 System
Quick-Connect
DVI/HDMI SR
Interface
Two (2) - Cat-5e Cables
Total - Up to 100’ (30.48m)
RS-232 Control - Cat-5e
Power to Camera
HSDS Video from
Camera - Cat-5e
Vaddio Precision Camera Controller
(Up to 7 PTZ Cameras can be controlled)
RS-232 on Cat-5e
Large Format HDMI Monitor
(Simulated Video Feed)
Vaddio PreVIEW™ HD 7.0 Rack Monitors
(Simulated Video Feeds)
* HDMI with
Adapter Cable
YPbPr
YPbPr & Power on
one (1) Cat-5e up to
100’ (30.5m)
Dancing Bear Camera
(Simulated Feed)
* The Recessed Color Space
Conversion Switch enables the
use of either HDMI YCbCr or
DVI-D sRGB (RGBHV) color
space for added flexibility.
