WallVIEW HD-19 DVI/HDMI

WallVIEW HD-19 DVI/HDMI Manual 342-0267 Rev. C

Page 17 of 24

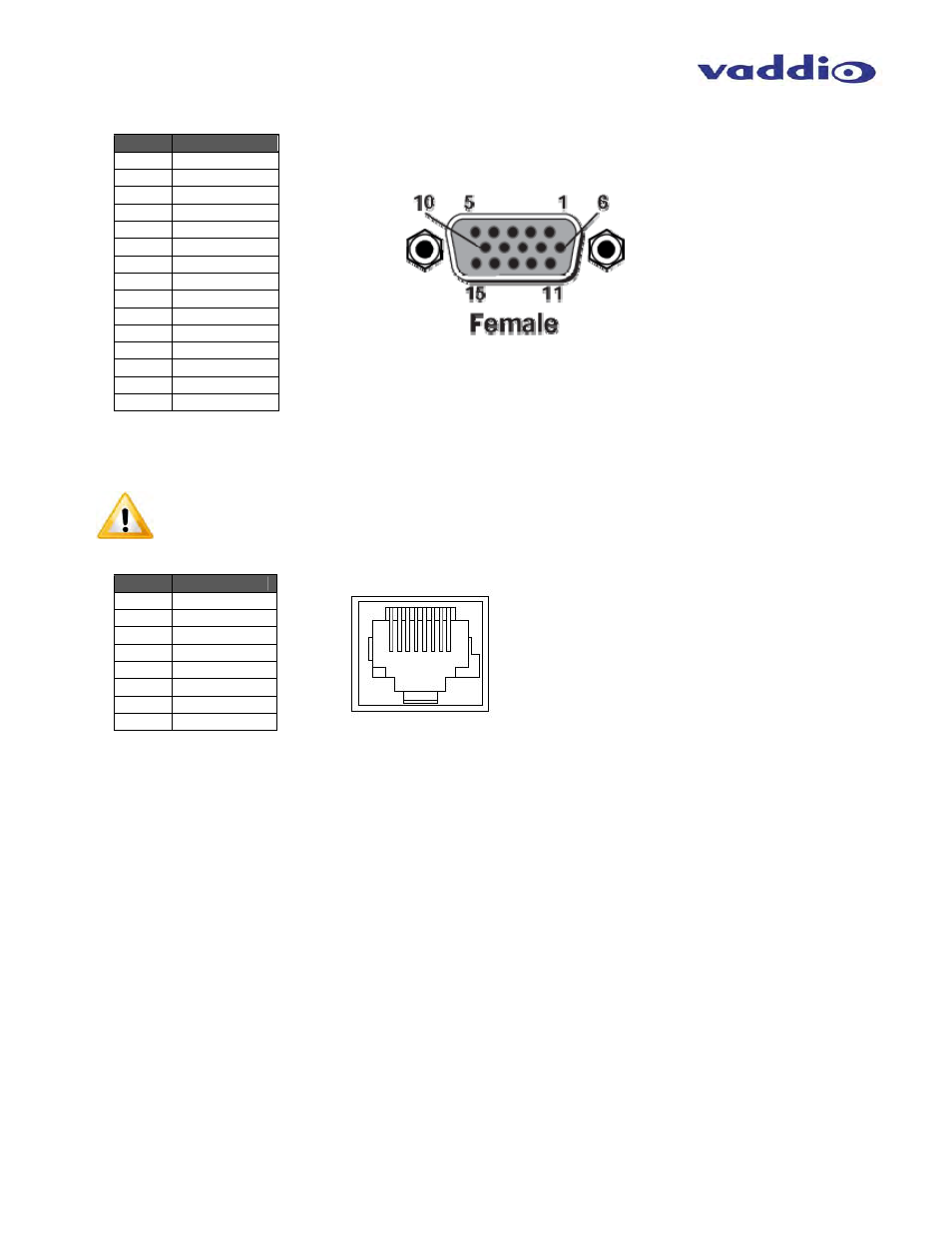

Appendix 1: YPbPr Video Pin-Out for the HD-19 Camera and Quick-Connect SR Interface

















EZCamera

Power & HD Video RJ-45 Connector Pin-outs

The EZCamera

Power and HD Video RJ-45 Connector is for use with either the Quick-Connect SR

Interface or the Quick-Connect DVI/HDMI SR Interface ONLY (568B Wiring Standard). The video
signals are differential (HSDS™) and can only be received by the interfaces above.
































Pin

YPbPr

1 Pr

2 Y

3 Pb

4 -

5 -

6 Pr

GND

7 Y

GND

8 Pb

GND

9 -

10 -

11 -

12 -

13 -

14 -

15 -

Pin

YPbPr

1 Power+

2 Power-

3 Y+

4 Pb+

5 Pb

GND

6 Y

GND

7 Pr+

8 Pr-

12345678
