Sqn-d parts list – COOK SQN User Manual
Page 11
11
Part
No.
Description
Part
No.
Description
1
Motor Support Rail (2)
9
Electrical Box
2
Inlet Panel (1)
10
Electrical Conduit (1)
3
Inlet Cone, Sizes 135 - 165 (1)
11
Motor Plate Platform (1)
4
Housing Frame Support (6)
12
Motor (1)
5
Housing Panel Motor Side (1)
13
Motor Cover (1)
6
Access Panel (3)
14
Motor Plate (1)
7
Motor Cover Back Plate (1)
15
Housing Frame Rail (2)
8
Cooling Tube (2)
16
Wheel
2
1
3
11
12
13
14
15
4
5
6
7
8
9
10
16
Airflow

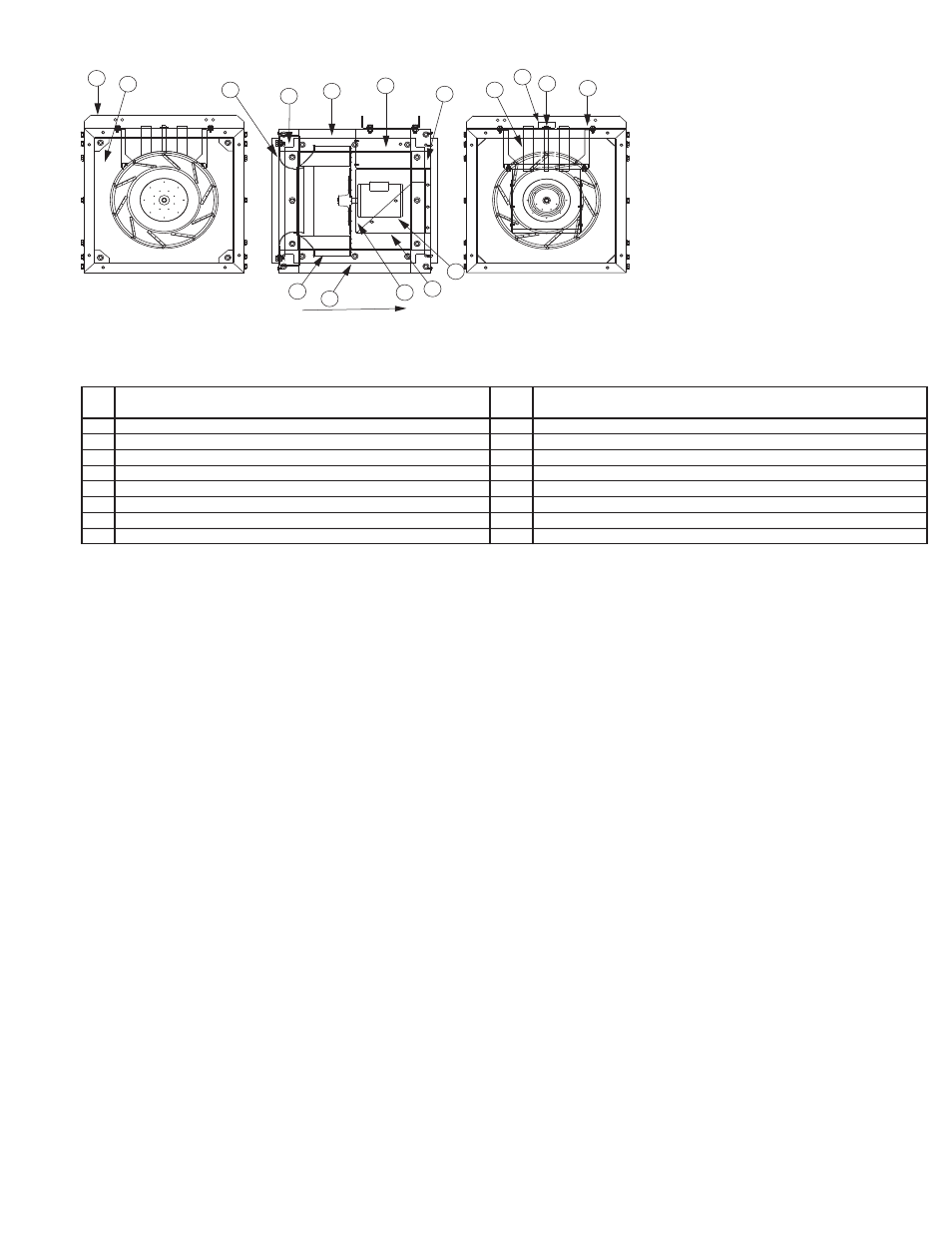

SQN-D Parts List
