Limited Warranty
Loren Cook Company warrants that your Loren Cook fan was manufactured free of defects in materials and workmanship, to the extent stated herein. For a period of one (1)
year after date of shipment, we will replace any parts found to be defective without charge, except for shipping costs which will be paid by you.
This warranty is granted only to the original purchaser placing the fan in service.
This warranty is void if the fan or any part thereof has been altered or modified from its original design or has been abused, misused, damaged or is in worn condition or if the
fan has been used other than for the uses described in the company manual. This warranty does not cover defects resulting from normal wear and tear.
To make a warranty claim, notify Loren Cook Company, General Offices, 2015 East Dale Street, Springfield, Missouri 65803-4637, explaining in writing, in detail, your complaint
and referring to the specific model and serial numbers of your fan. Upon receipt by Loren Cook Company of your written complaint, you will be notified, within thirty (30) days of
our receipt of your complaint, in writing, as to the manner in which your claim will be handled. If you are entitled to warranty relief, a warranty adjustment will be completed within
sixty (60) business days of the receipt of your written complaint by Loren Cook Company.
This warranty gives only the original purchaser placing the fan in service specifically the right. You may have other legal rights which vary from state to state.
For fans provided with motors, the motor manufacturer warrants motors for a designated period stated in the manufacturer’s warranty. Warranty periods vary from manufacturer
to manufacturer. Should motors furnished by Loren Cook Company prove defective during the designated period, they should be returned to the nearest authorized motor ser-
vice station. Loren Cook Company will not be responsible for any removal or installation costs.
Parts
No.
Description
ADB 16-48 EDB 24-60 TIB 20-72
1 Motor Motor Motor
2 Motor Plate Motor Plate Motor Plate
3 Motor Plate Studs (4) Motor Plate Studs (4) Motor Plate Studs (4)
4 Shaft Shaft Shaft
5
Weather Cover
(optional)
Weather Cover
(optional)
Weather Cover
(optional)
6
Cast Aluminum
Propeller
Extruded Aluminum
Propeller
Welded Steel
Propeller
7 Bearings Bearings Bearings
8
Housing/Power
Assembly
Housing/Power
Assembly
Housing/Power
Assembly
9 Bearing Cover Bearing Cover Bearing Cover
10 Driven Sheave Driven Sheave Driven Sheave
11 Belt Set Belt Set Belt Set
12 Driver Sheave Driver Sheave Driver Sheave
1 2
3
4
6
5
7
8
10
9
11
12
Airflow
1
2
3
4
5
7
8
9
10
11
12
6 Airflow

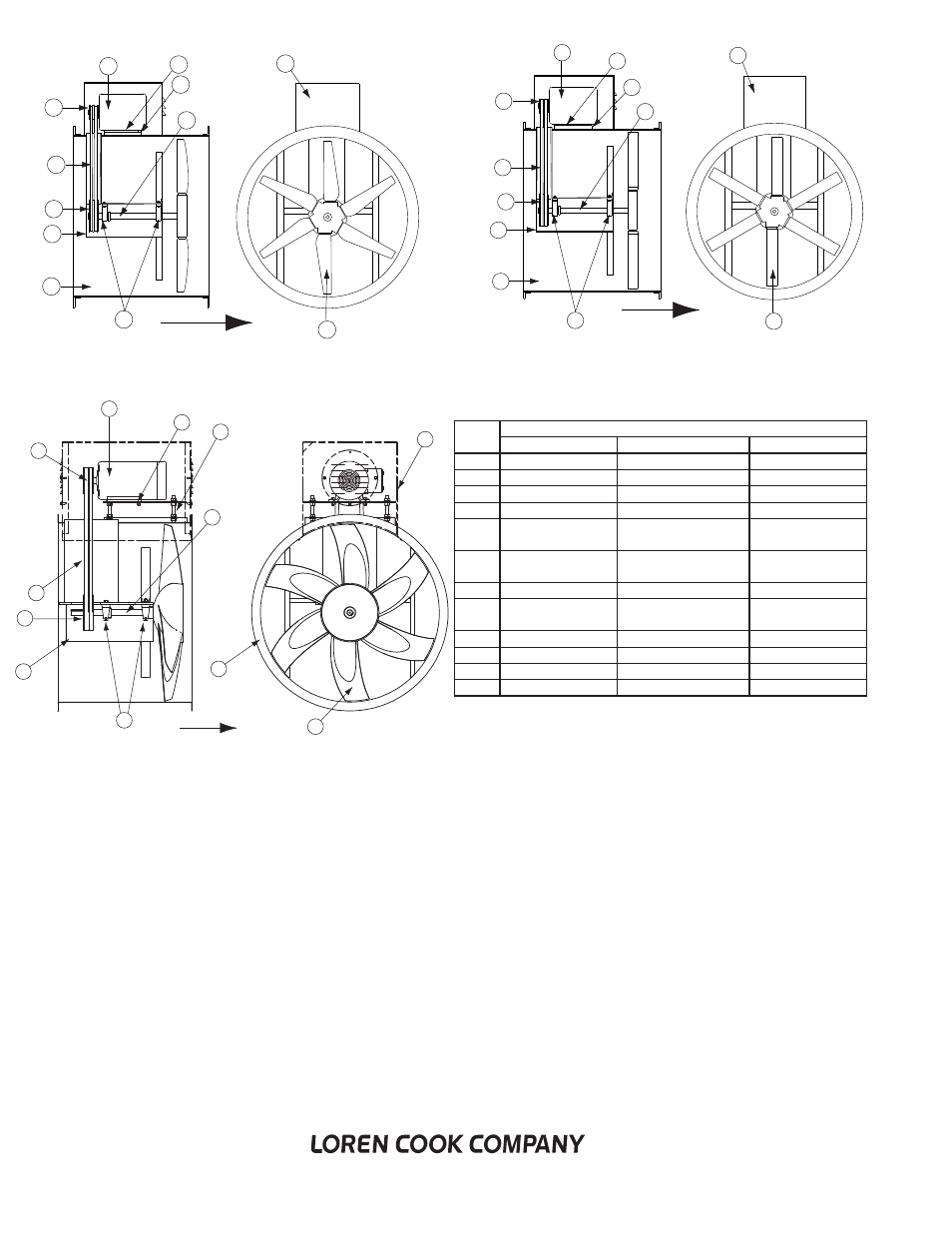

ADB, EDB, and TIB Parts List
ADB EDB
1
2
3
4
5
6
8
7
11 11
10 10
9
Airflow Airflow
12 12
TIB
