Belt and pulley, Belt and pulley installation, Wiring diagrams – COOK Duct Blower User Manual

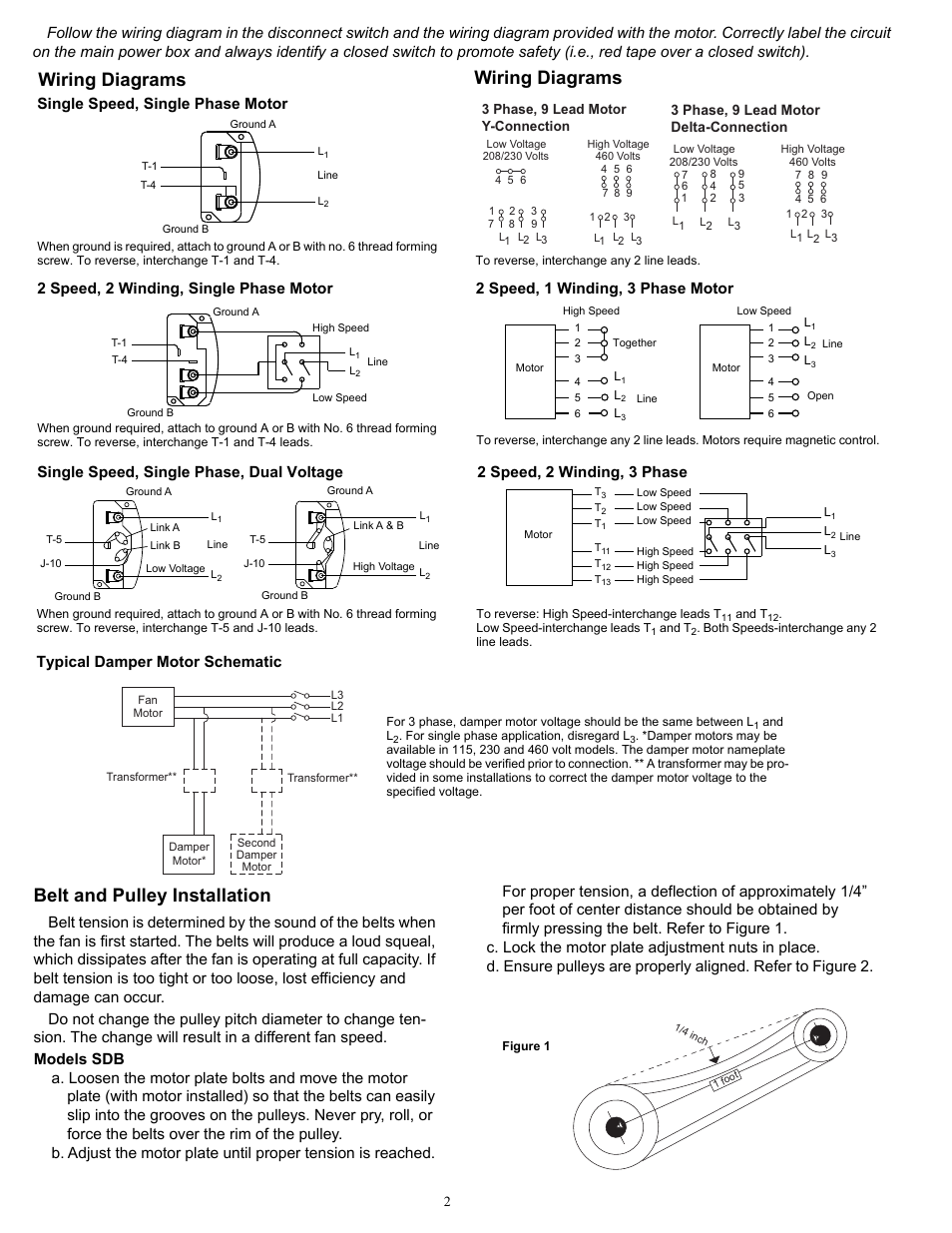

Page 2: Single speed, single phase motor, Typical damper motor schematic
