Afd-c parts list, Afbv parts list, Afb parts list – COOK AVA User Manual
Page 11
11

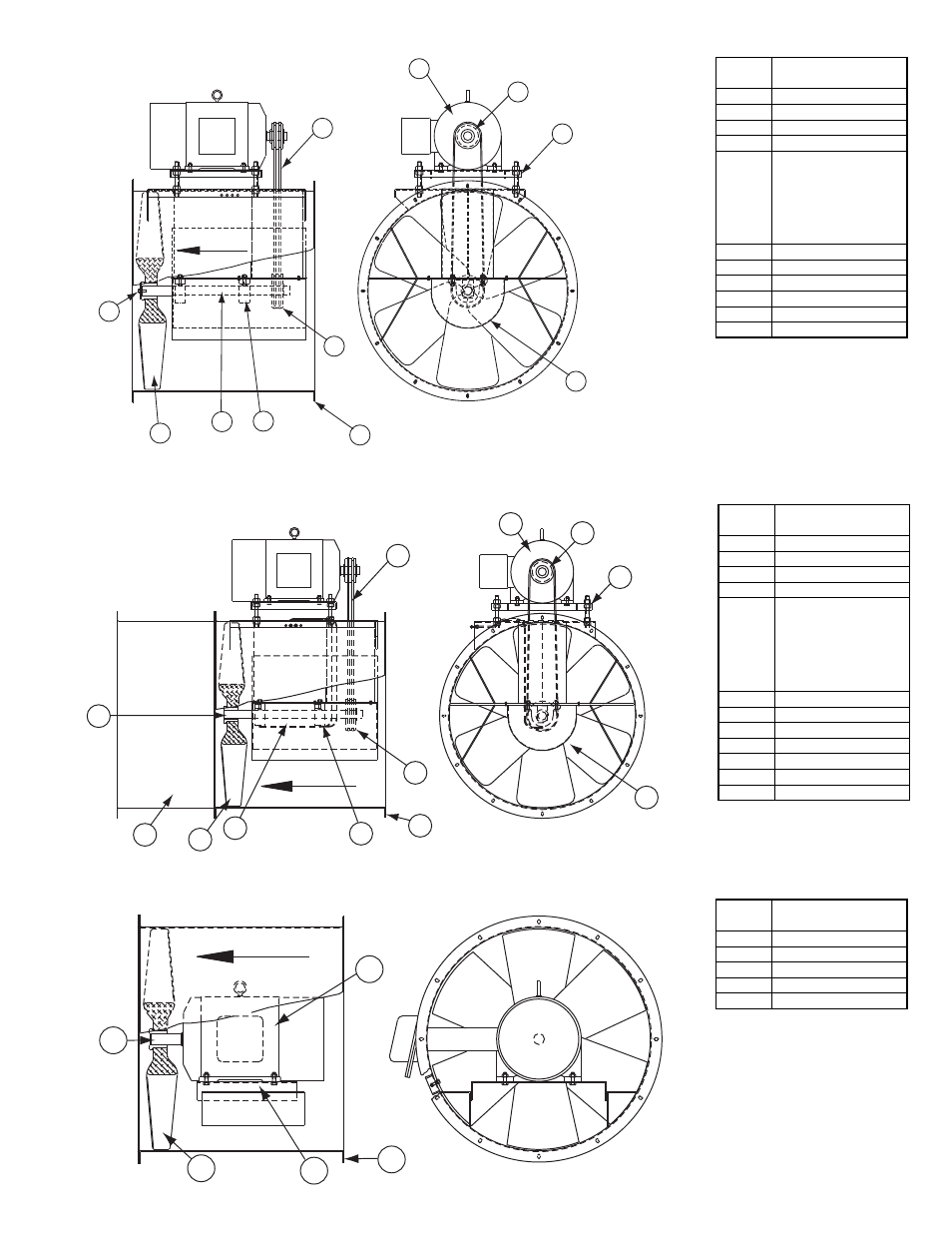

AFD-C Parts List
Airflow
4
5
3
2
1
Item
No.
Description
1
Drum Weldment
2
Propeller
3
Prop Bushing
4
Motor
5
Motor Mounting Bolts
AFBV Parts List
Airflow
1
4
2
8
7
9
3
6
5
10
11
12
Item
No.
Description
1
Drum Weldment
2
Shaft
3
Bearing
4
Motor Plate
5
Prop
C-Cast Bushing
H-High Temperature
Construction
S-Stainless Steel
Construction
6
Prop Bushing
7
Bearing Cover
8
Motor
9
Drive Sheave
10
Driven Sheave
11
Belt
12
Vane Section
AFB Parts List
Airflow
1
4
2
8
7
9
3
6
5
10
11
Item
No.
Description
1
Drum Weldment
2
Shaft
3
Bearing
4
Motor Plate
5
Prop
C-Cast Bushing
H-High Temperature
Construction
S-Stainless Steel
Construction
6
Prop Bushing
7
Bearing Cover
8
Motor
9
Drive Sheave
10
Driven Sheave
11
Belt
