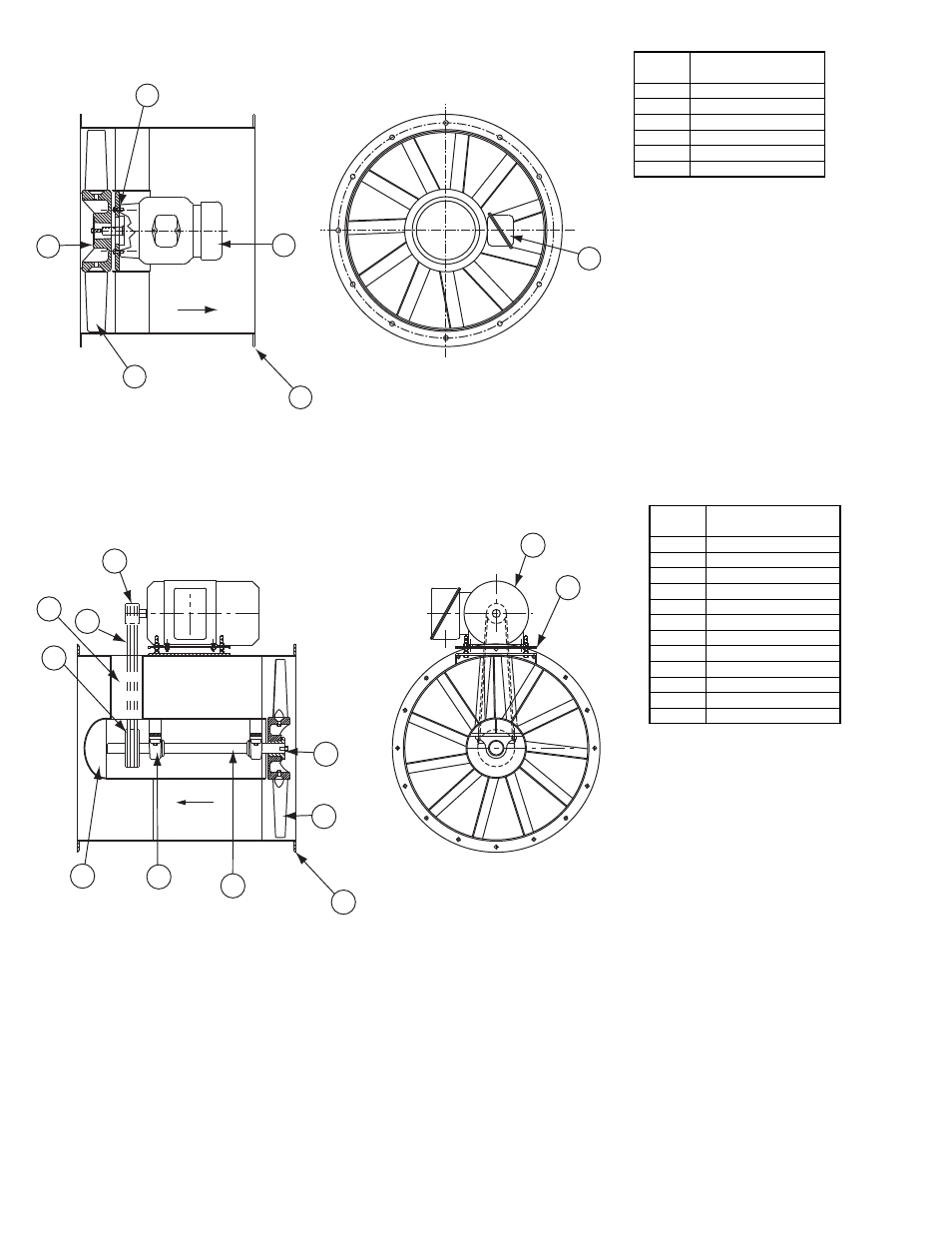

AVAB Parts List
Airflow
2
1
3
4
5
6
7
8
9
10
11
12
Item
No.
Description
1
Drum Weldment
2
Shaft
3
Bearing
4
Prop
5
Prop Bushing
6
Motor Plate
7
Inner Drum Nose
8
Motor
9
Drive Sheave
10
Driven Sheave
11
Belt
12
Belt Tunnel (2)
AVAD Parts List
Item
No.
Description
1
Drum Weldment
2
Prop
3
Prop Bushing
4
Motor
5
Wiring Box
6
Motor Mounting Bolts
1
2
6
4
3
5
Airflow
