Parts, Ace-d parts list – COOK AC User Manual
Page 7
7
1a
7
9
8
12
6
5
10
4
3
11
1b
2
1
7
9
8
12
6
5
10
4
3
11
2
Part
No.
ACE-D Parts Description
70-100
120-180
1a
Top Cap
Top Cap Lid
1b
Top Cap Cylinder
2
—
Top Cap Clip (4)
3
Motor
Motor
4
Motor Plate
Motor Plate
5
Baffle
Baffle
6
Wheel Assembly
Wheel Assembly
7
Bird Screen
Bird Screen
8
Base
Base
9
Conduit
Conduit
10
Isolator (4)
Isolator (4)
11
Upper Post (4)
Upper Post (4)
12
—
Lower Post (4)

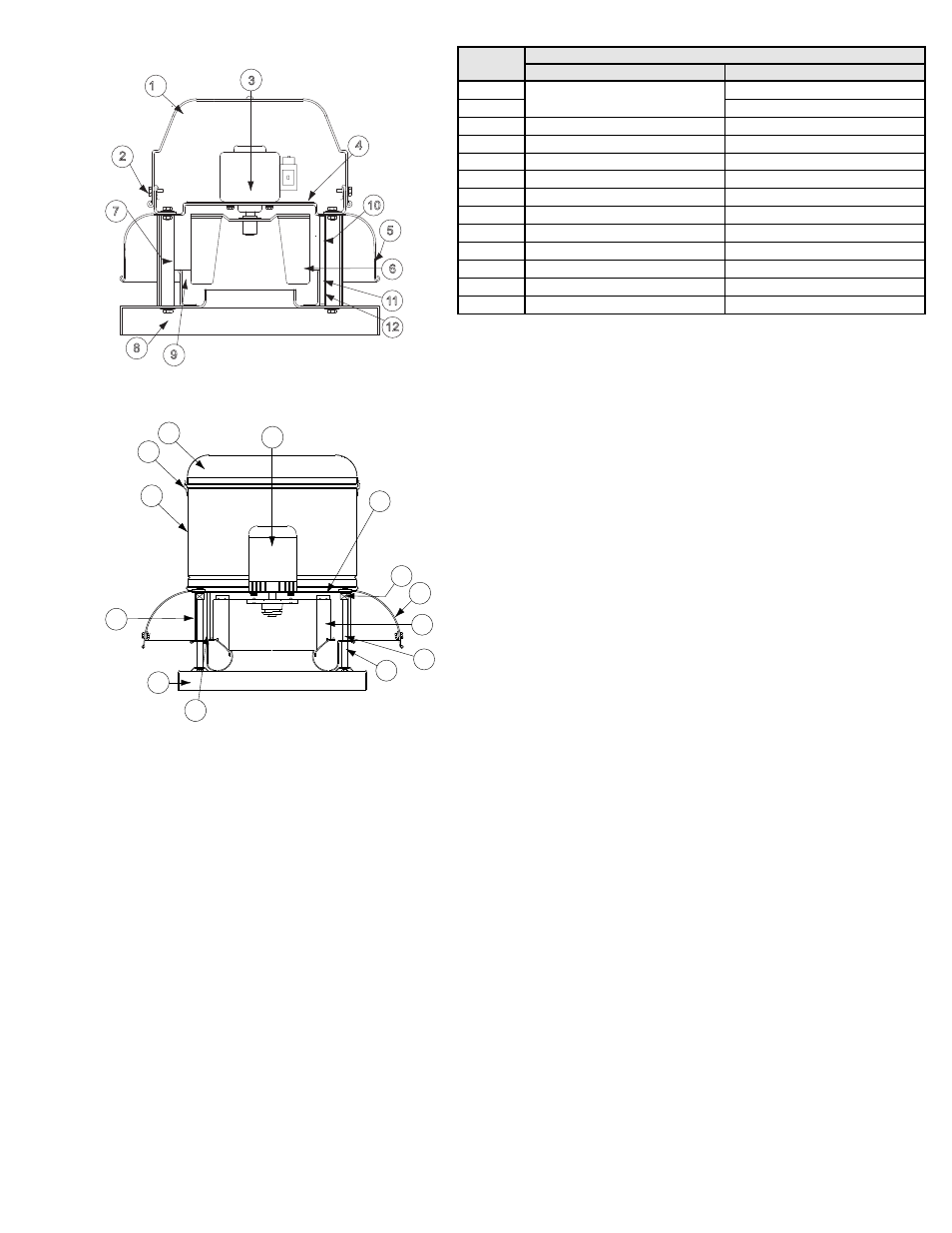

ACE-D Parts List
Sizes 120-180
Sizes 70-100
