APOLLO 120/150 III
6-88
6.1.5.11. IDE1/IDE2: Primary/Secondary HDD
The PC 610 provides 2 sets of 40-pin IDE connectors. The
built-in high speed PCI IDE controller supports both PIO and
ATA 100 mode. Up to four IDE devices can be connected,
including large hard disks, CD-ROM drives and other IDE
devices. Their corresponding pin assignments are listed
below;

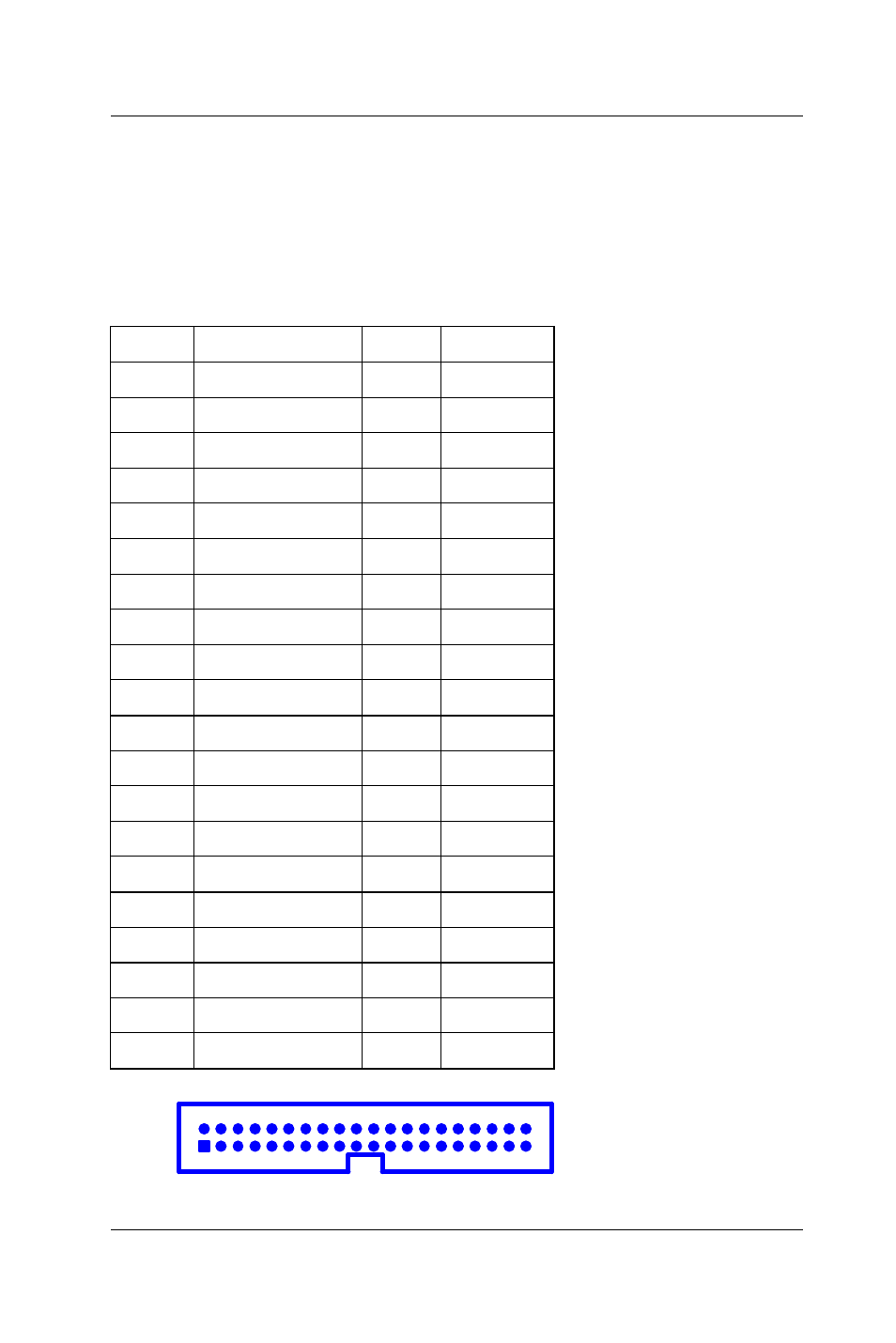

Pin # Signal
Pin # Signal
1 RESET#
2 GND
3 DATA 7
4 DATA 8
5 DATA 6
6 DATA 9
7 DATA 5
8 DATA10
9 DATA 4
10 DATA11
11 DATA 3
12 DATA12
13 DATA 2
14 DATA13
15 DATA 1
16 DATA14
17 DATA 0
18 DATA15
19 GND
20 NC
21 IDEREQ
22 GND
23 IOW#
24 GND
25 IOR#
26 GND
27 ICHRDY#
28 GND
29 DACK
30 GND
31 IDEIRQ
32 NC
33 A1
34 LID
35 A0
36 A2
37 IDECS0
38 IDECS1
39 HDD LED
40 GND
2 40
