Apollo 150 User Manual
Page 94
User Manual version 2207
APOLLO 120/150 III
6-84

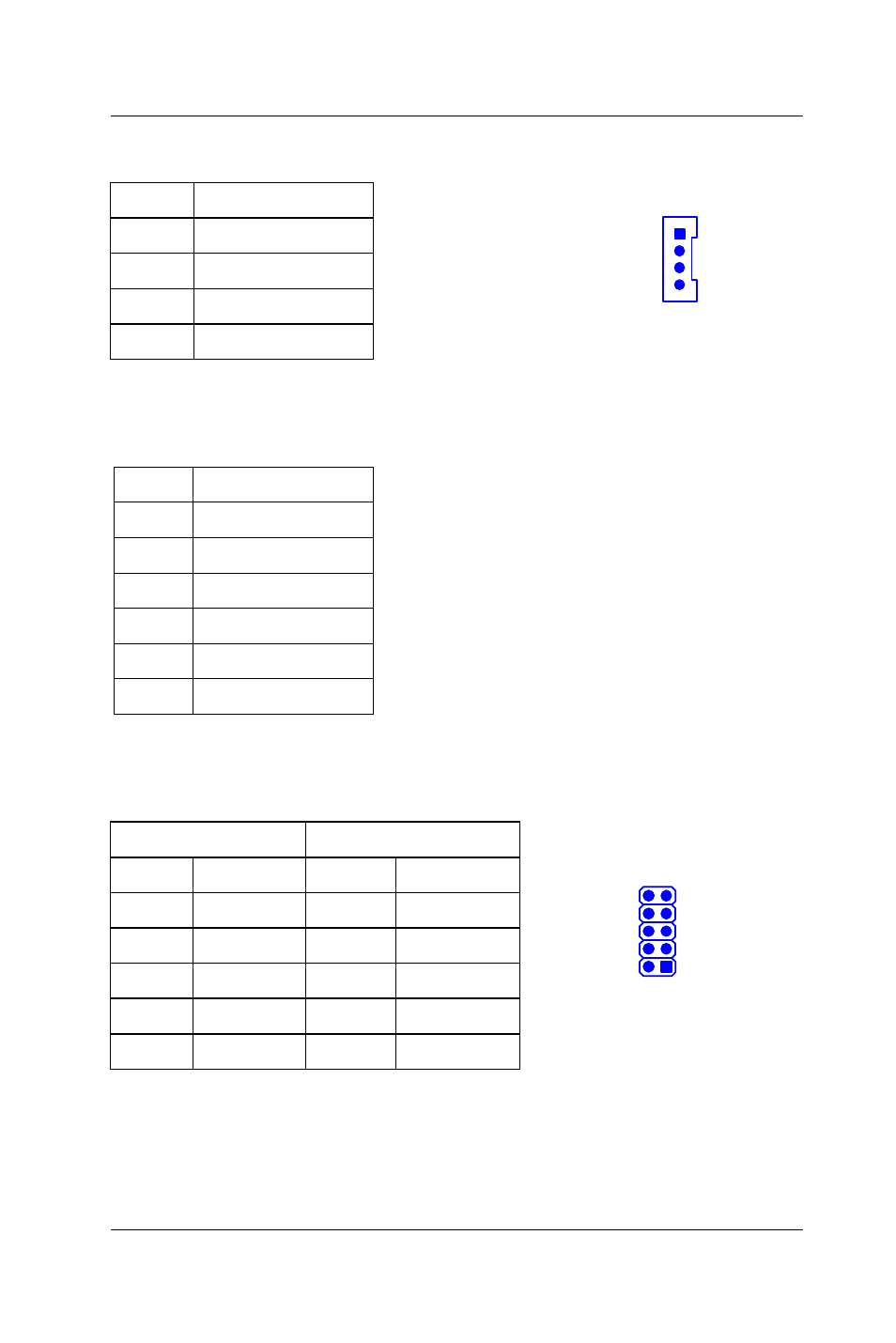

6.1.5.2. J2: CD Audio IN
Pin # Signal
1 Left channel
2 CD GND
3 CD GND
4 Right channel
6.1.5.3. J7: HDD LED & ACPI LED & SMI
Pin # Signal
1 HDD LED+
2 HDD LED-
3 ACPI LED+
4 ACPI LED-
5 SMI
6 GND
6.1.5.4. J8: IR / CIR Connector
IR
CIR
Pin # Signal Pin # Signal
1 5V
6 NC
2 NC
7 CIRRX
3 IRRX
8 5V (CIR)
4 GND
9 GND
5 IRTX
10 NC
1
4
1
9
2
10
