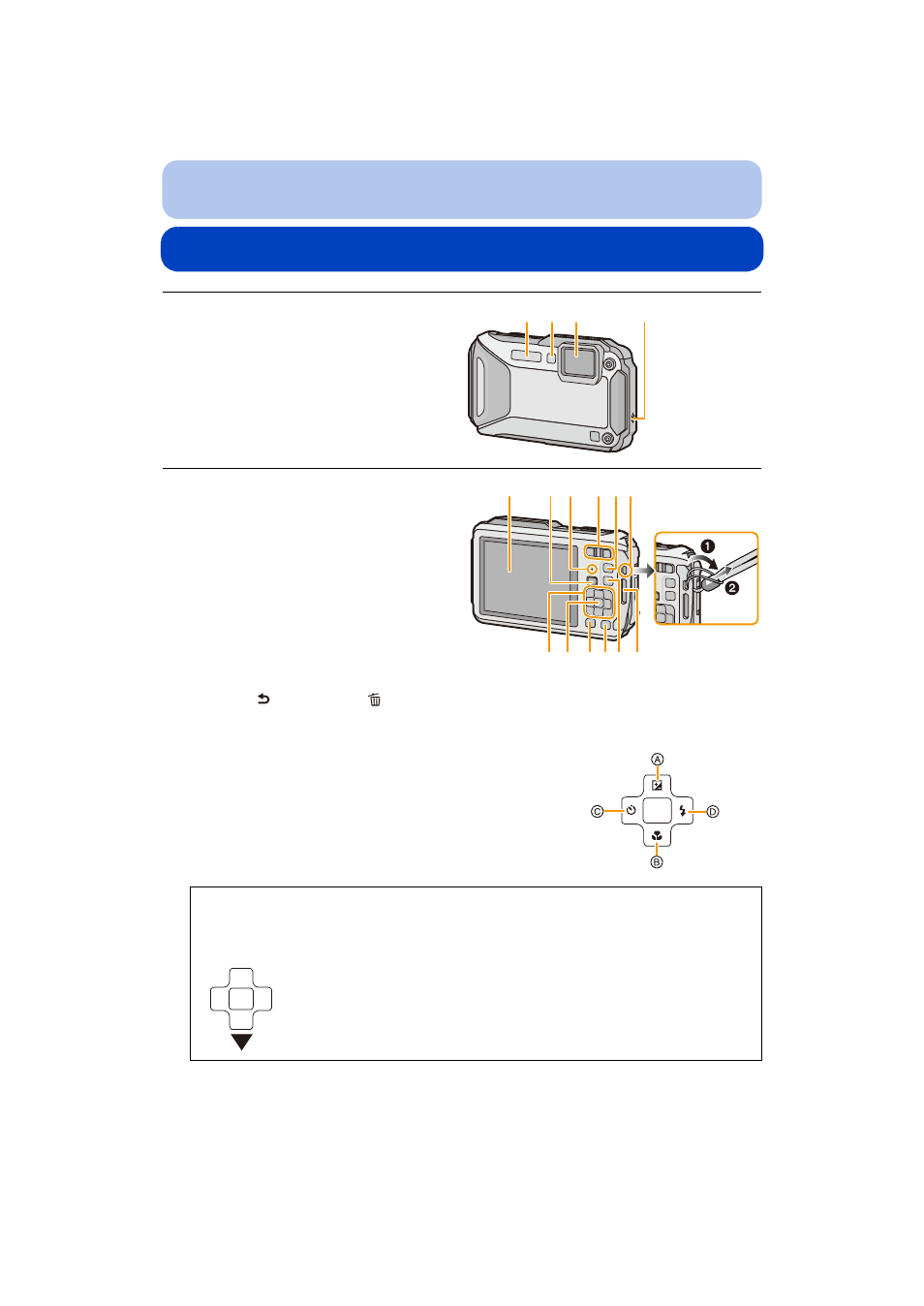

Names and Functions of Main Parts
1 Flash (P66)
2 Self-timer indicator (P70) /
AF Assist Lamp (P115) /
LED light (P56)
3 Lens (P8 , 237 , 255)
4 Speaker (P53)
5 LCD monitor (P62 , 231 , 236)
6 [Wi-Fi] button (P177)
7 Wi-Fi ® connection lamp (P174)
8 Zoom button (P64)
9 [(] (Playback) button (P42)
10 Strap eyelet (P30)
• Be sure to attach the strap when using the
camera to ensure that you will not drop it.
• Be sure to attach the strap to the strap
eyelet.
11 Decorative hole
12 [MODE] button (P31 , 146)
13 [Q.MENU/ ] button (P49) /[ ] (Delete) button (P46)
14 [DISP.] button (P62)
15 [MENU/SET] button (P48)
16 Cursor buttons
A: 3/Exposure compensation (P71)
Auto Bracket (P72)
B: 4/Macro Mode (P69)
AF Tracking (P104)
C: 2/Self-timer (P70)
D: 1/Flash setting (P66)
In this owner's manual, the cursor buttons are described as shown in the figure below or
described with
3/4/2/1.
e.g.: When you press the 4 (down) button
or Press 4
1 2 3 4
5 6 7 8 9 10
11 12 13 14 15 16
