11
Before Use

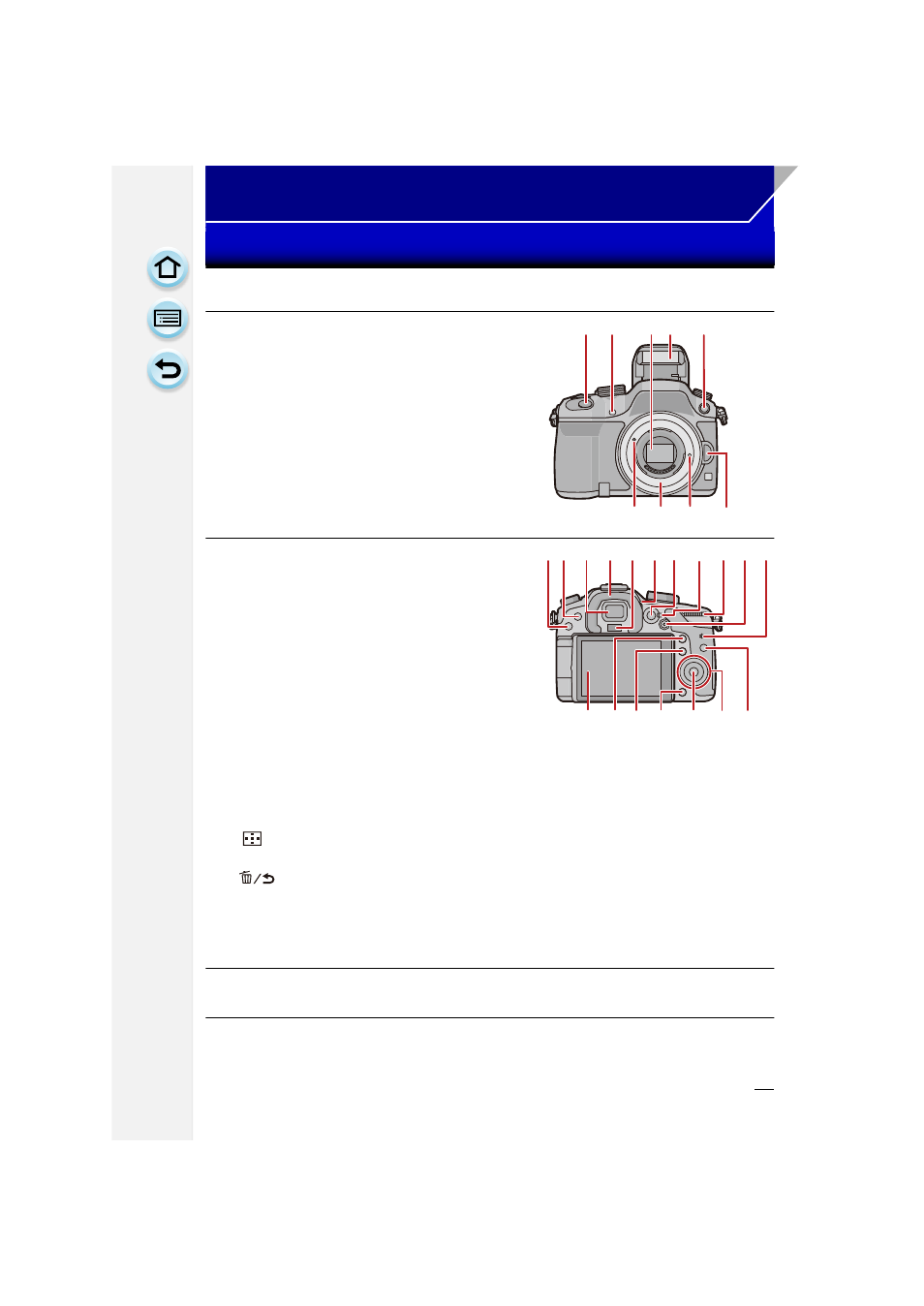

Names and Functions of Components
∫ Camera body
1 Shutter button (P68)
2 Self-timer indicator (P157) /
AF Assist Lamp (P55)
3 Sensor
4 Flash (P123)
5 Flash synchro socket ¢ (P266)
6 Lens fitting mark (P20)
7 Mount
8 Lens lock pin
9 Lens release button (P21)
10 [(] (Playback) button (P75)
11 [LVF] button (P66) /[Fn5] button (P42)
12 Viewfinder (P66)
13 Eye Cup ¢ (P303)
14 Eye sensor (P66)
15 Diopter adjustment dial (P66)
16 [AF/AE LOCK] button (P151)
17 Focus mode lever (P141)
18 Rear dial (P17)
19 Motion picture button (P180)
20 Speaker (P47)
• Be careful not to cover the speaker with your
finger. Doing so may make sound difficult to
hear.
21 Touch screen/monitor (P15)
22 [Q.MENU] button (P39) /[Fn2] button (P42)
23 [ ] (Auto Focus Mode) button (P141) /
[Fn3] button (P42)
24 [ ] (Delete/Cancel) button (P82) /
[Fn4] button (P42)
25 [MENU/SET] button (P18 , 37)
26 Control dial (P18) /Cursor buttons (P18)
27 [DISP.] button (P72 , 81)
¢ If you lost the flash synchro socket cap (VKF5108) or eye cup (VYK6B43), please contact
the dealer where you purchased the camera or Panasonic.
2 3 4 5 1
6 7 8 9
10
21
11 12
26 27 22 23 24 25
13 14 19 15 18 20 16 17
