8

=  Up Arrow =  Down Arrow

Step 1 - Press SET CLOCK.

Step 2 - Current Time (hour): Set the hour of the day using  or  buttons.

AM/PM toggles after 12. Press NEXT to go to step 3.

Step 3 - Current Time (minutes): Set the minutes of day using  or  buttons.

Press NEXT to exit Set Clock. Press REGEN to return to previous step.

Power Loss - Lithium battery on circuit board provides up to 2 years of time

clock backup during power outages. If the power is out when battery is depleted,

only time of day needs to be reset, all other values are stored in non-volatile

memory. When time of day is flashing, replace lithium coin type 2032 battery.

Battery back-up feature will be activated after 24 hours of power.

Do not forget to reset for daylight savings time.

seT TiMe Of DaY

Figure 9

insTaller DisplaYs/seTTinGs

Step 1 - Press NEXT and  simultaneously for 3 seconds.

Step 2 - Hardness: Set the amount of total compensated hardness in

grains (hardness as calcium carbonate) per gallon using  or  but-

tons. The factory setting is 20 with value ranges from 1 to 150 in 1 grain

increments. Note: The grains per gallon should be increased if soluble

iron needs to be reduced. Add 3 grains of hardness for each ppm of iron

present. If this display shows nA -, then system is set-up in “filter” mode or

"AUTO" is not selected in softener system setup. (See page 34). Press

NEXT to go to Step 3. Press REGEN to exit Installer Displays/Settings.

Step 3 - Day Override: This sets the number of days between regenera-

tions. If value set to “oFF” regeneration initiation is based solely on gallons

used. If value is set as a number (allowable range from 1 to 28) a regen-

eration initiation will be called for on that day even if sufficient number of

gallons were not used to call for a regeneration. Set Day Override using 

or  buttons: Factory setting is 14 days.

• number of days between regeneration (1 to 28); or

• “oFF”

See figure 12a & b, page 11-12, for more detail on softener setup. Press

NEXT to go to step 4. Press REGEN to return to previous step.

Step 4 - Regeneration Time (hour): Set the hour of day for regeneration

using  or  buttons. AM/PM toggles after 12. The factory setting time is

2:00 a.m. This display will show “REGEN” “IMMEDIATE ON zERO GAL” if

“Immediate” is selected on Step 12 of softener set-up. See page 34. Press

NEXT to go to step 5. Press REGEN to return to previous step.

Step 5 - Regeneration Time (minutes): Set the minutes of day for regen-

eration using  or  buttons. This display will not be shown if system is set

for immediate regeneration. Press NEXT to exit Installer Displays/Settings.

Press REGEN to return to previous step.

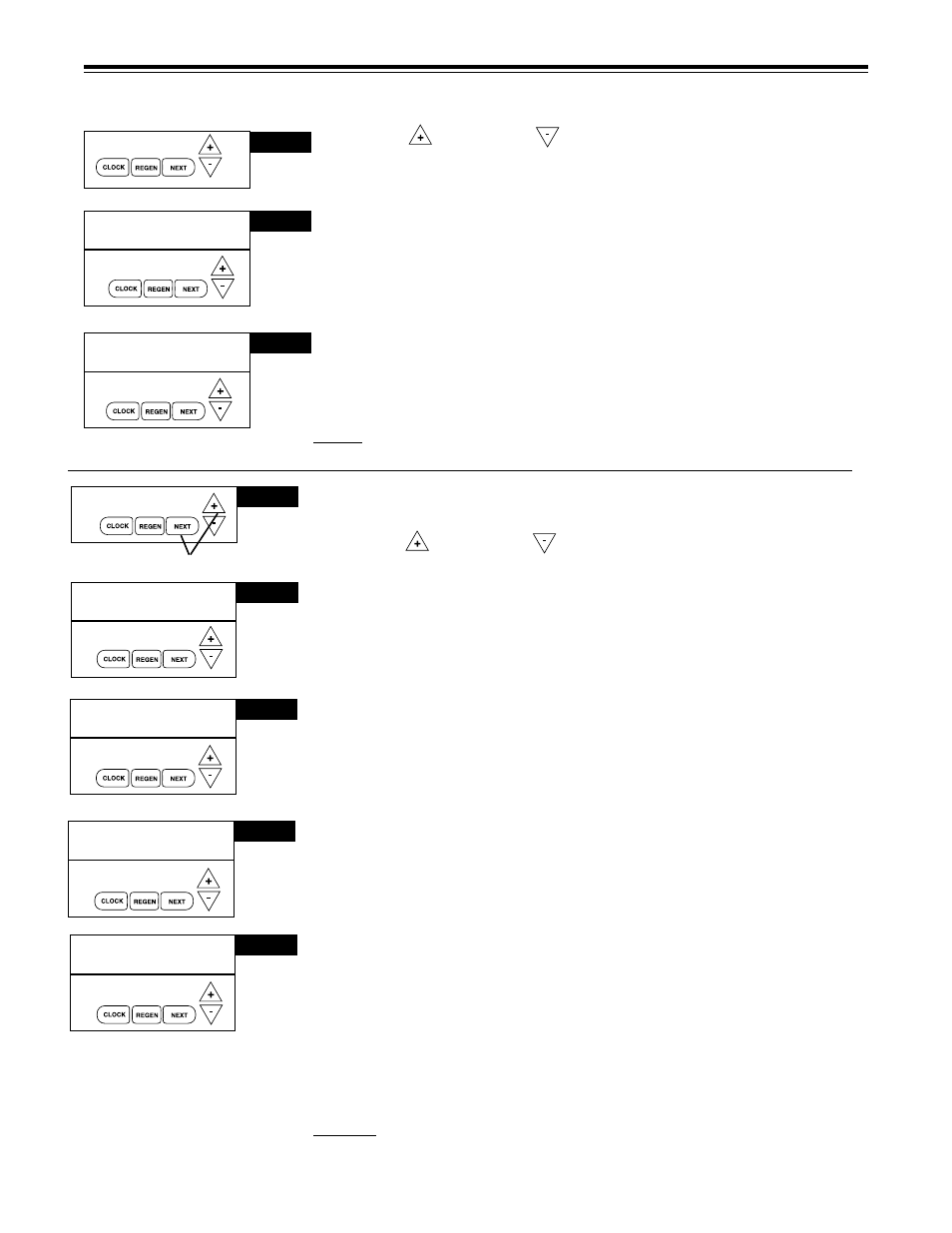

Figure 10a

RETURN TO ROTATING DISPLAY

Step 1

Step 2

TIME HOUR

6:35

PM

TIME MINUTES

6:35

PM

Step 3

Step 1

Step 2

WATER HARDNESS

Step 3

DAYS BETWEEN REGEN

14

Step 4

REGEN TIME HOUR

2:00

AM

20

Step 5

REGEN TIME MINUTES

2:00

AM

=  Up Arrow =  Down Arrow

SET

GR

SET

SET

SET

SET

RETURN TO ROTATING DISPLAY

SET

SET
