H125 conditioner & salt keeper assemblies – Hellenbrand H-125 Series User Manual
Page 22
22
Item
Description
Qty
Part #
1
Control Center-Metered
1
151-VWS1.25-ED (see pages 20-21 for detailed components)
2
Top Diffuser
1
9-D1203-02
3&4
Mineral Tank Assembly
Item 3 only
Item 4 only
Mineral Tank
Distributor Assy
Tank Assy
H125-32-10 10 x 44
1
19-EN1044NAT
9-D780D2A68
62-001044-1.32-S
H125-48 10 x 54
1
19-EN1054NAT
9-D780D2A68
62-001054-1.32-S
H125-64 13 x 54
1
19-WC1354NAT
9-D780D2A68
62-001354-1.32-S
H125-96 14 x 65
1
19-WC1465NAT
9-D780D2A68
62-001465-1.32-S
H125-128 16 x 65
1
19-WC1665NAT-4 9-T061416
62-001665-1.32-H
H125-160 18 x 65
1
19-WC1865NAT-4 9-T061824
62-001865-1.32-H
5
Ion Exchange Resin
*
341-001 Standard 8% Resin
*See Specifications for amount
*
341-001-P Premium 8% Resin
*See Specifications for amount
6
Underbedding
*
1-A8072
*See Specifications for amount
7
3/8” x 6' Brine Line
1
2-H1023-06
7-15 a 18X40 w/474 SBV & 5" Grid
1
3-S315-3-C
b 18X40 w/474 SBV & 8" Grid
1
3-S335-3-C
c 18X40 w/474 SBV & 11" Grid
1
3-S355-3-C
d 24x41w/474 SBV & 6" Grid
1
3-S425-3
e 24x50 w/474 SBV & 6" Grid
1
3-S525-3
f 24x50 w/474 SBV & 9" Grid
1
3-S545-3
g 18x40 w/474 SBV & No Grid
1
3-S305-3-C
h 24x41 w/474 SBV & No Grid
1
3-S405-3
i 24x50 w/474 SBV & No Grid
1
3-S505-3
j 30x50 w/474 SBV & No Grid
1
3-S605-3
8 a
18x40 Salt Keeper Tank-Black
1
2-1840BK
b
24x41 Salt Keeper Tank-Black
1
2-2441BK
c
24x50 Salt Keeper Tank-Black
1
2-2450BK
d
30x50 Salt Keeper Tank-Black
1
2-3050BK
9
Cover 18" BT
1
2-G2191-60
Cover 24" BT
1
2-G2194
10-14 a Safety Brine Valve Assy 41”
2-H4700-39
b Safety Brine Valve Assy 50”
2-H4700-46
10
Cap, Brine Well-4"
2
2-H7016
11*
Safety Brine Valve
1
2-H4600
12
Float Assembly
1
2-H4640-32
13
Air Check (474)
1
2-H4500-48
14 a Brine Well 40”-41”
1
2-H1030-36S
b Brine Well 50”
2-H1030-46S
15
2-Piece Overflow
1
2-H1018
16 a Grid Plate 18” (optional)
1
2-H1072-01
b Grid Plate 24” (optional)
1
2-H002
–
Owners Manual
1
73-361-HP
–
Twin Brine Tank Tee
1
79-1004

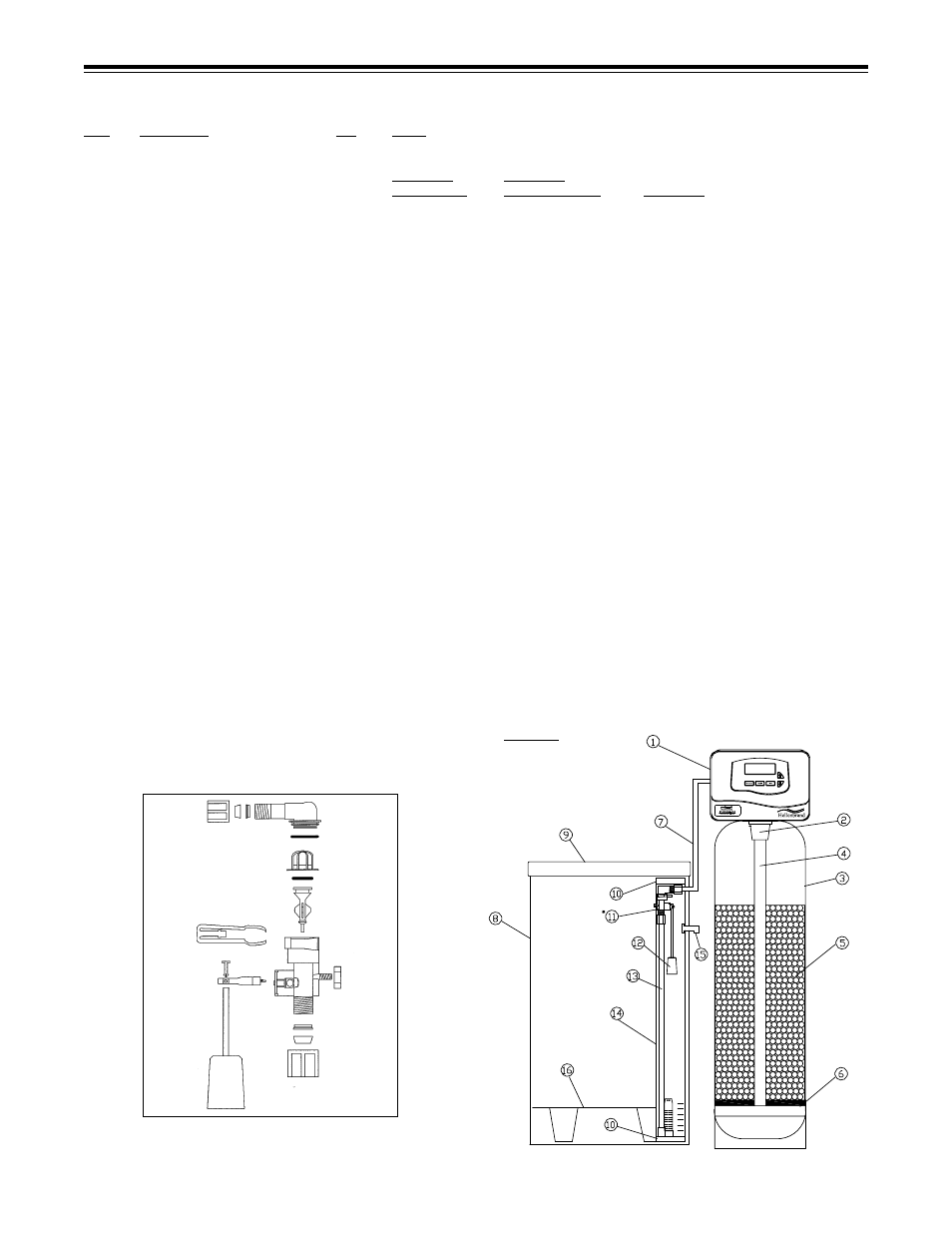

h125 COnDiTiOner & salT keeper asseMblies
*Safety Brine Valve (Item 11)
Drawing for service only. Must be ordered complete.
Figure 13
