Hellenbrand H-125 Series - Manual (Page 28)

28

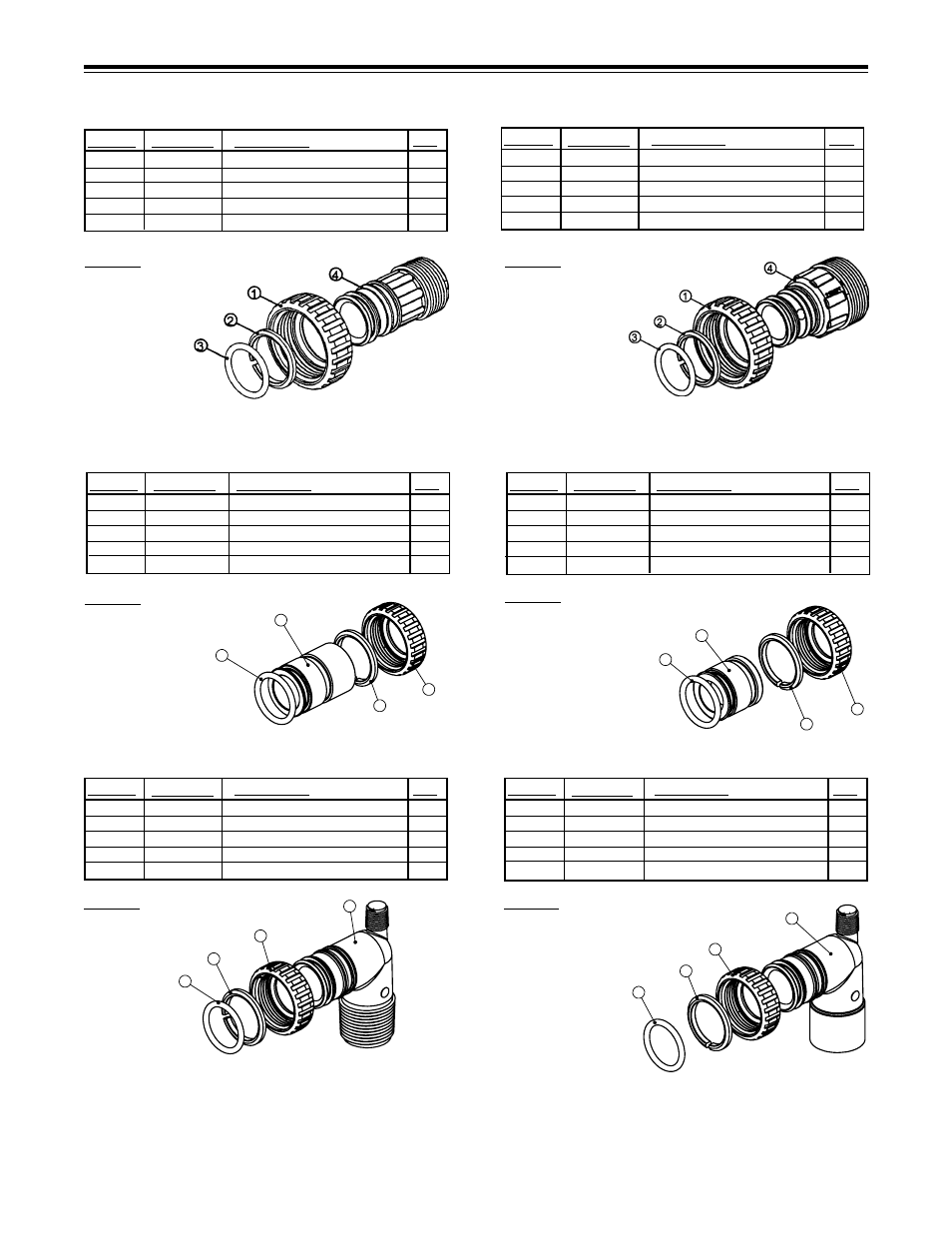

insTallaTiOn fiTTinG asseMblies
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3149 Fitting 1” PVC Male NPT Elb. 2
1-4 15-V3007 Fitting 1” PVC Male NPT Asy. (Set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3189 Fitting 3/4” & 1” PVC Solv. 90 2
1-4 15-V3007-01 Fitting 3/4” & 1” PVC Solv 90 (set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3188 Fitting 1” Brass Sweat 2
1-4 15-V3007-02 Fitting 1” Brass Sweat Asy (Set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3188-01 Fitting 3/4” Brass Sweat 2
1-4 15-V3007-03 Fitting 3/4” Brass Sweat Asy (Set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic wrench. If necessary a pliers can be used to unscrew the nut or
cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.
Do not use pipe dope or other sealants on threads. Teflon tape must be used on threads of the 1” NPT connection and on the threads for the drain line connection.
Teflon tape is not necessary on the nut connection nor caps because of o-ring seals.
Figure 27 Figure 26
Figure 24 Figure 25
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3164 Fitting 1” Plastic Male NPT 2
1-4 15-V3007-04 Fitting 1” Male NPT Asy. (Set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
1 15-V3151 Nut 1” Quick Connect 2
2 15-V3150 Split Ring 2
3 15-V3105 O-Ring 215 2
4 15-V3317 Fitting 1-1/4” Plastic Male NPT 2
1-4 15-V3007-05 Fitting 1-1/4” Male NPT (Set of 2) 1
QTY. ITEM NO. ORDER NO. DESCRIPTION
Figure 22 Figure 23
