Installation
11 801504 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

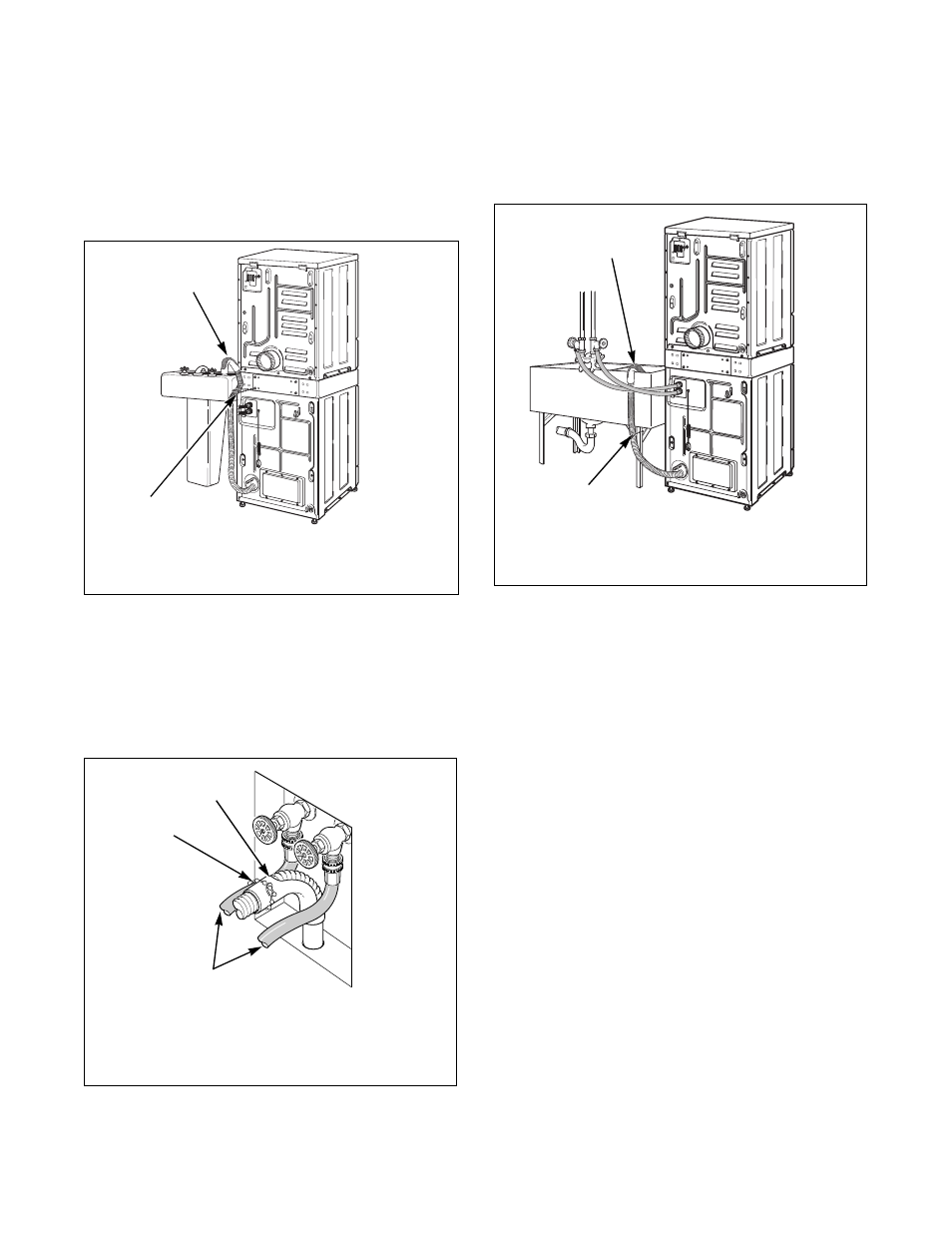

Sink Installation
For this type of installation, use the beaded tie-down
strap (supplied in accessories bag), or use a large wire
tie (available from your local hardware store) and
secure the drain hose to the cabinet top hinge (refer to
Figure 8). This will prevent the drain hose from
dislodging during use.
Figure 8
In-the-Wall Installation
For installations of this type, the drain hose MUST
be secured to one of the inlet hoses using the beaded
tie-down strap from accessories bag.
NOTE: End of drain hose must not be below 24 in.
Figure 9
Laundry Tub Installation
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Use the beaded tie-down strap
(supplied in accessories bag) to secure hose.
Figure 10
SWD599N
1 Drain Hose
2 Tie-Down Strap (Wire tie or tape if necessary)
H023I
1 Drain Hose
2 Tie-Down Strap (Tape if necessary)
3 Inlet Hoses
SWD599N
1
2
2
3
1
SWD600N
1 Drain Hose
2 Tie-Down Strap (Tape if necessary)
SWD600N
1
2
