ENGLISH 15
Contents of Case C A
1.......Manual bellows
2.......Water shut-off valve (black)
3.......Gas shut-off valve (red)
4.......Transmission cable (USB)
5.......1/8“ adapter
6.......1/2“ adapter
7.......T-adapter for water pipes
8.......Cross adapter for gas pipes
9.......Connecting tube
10.....RoData CD ROM
11.....Pressure sensor cable
12.....Low-pressure sensor (250 mbar) (blue ring)
13.....High-pressure sensor (20 bar) (red ring)
14.....Power supply unit
15.....ROTEST GW DIGITAL basic unit
16.....Hose adapter for burner test
17.....Leak quantity pump
18.....Pressure pump
19.....Precision pressure regulator

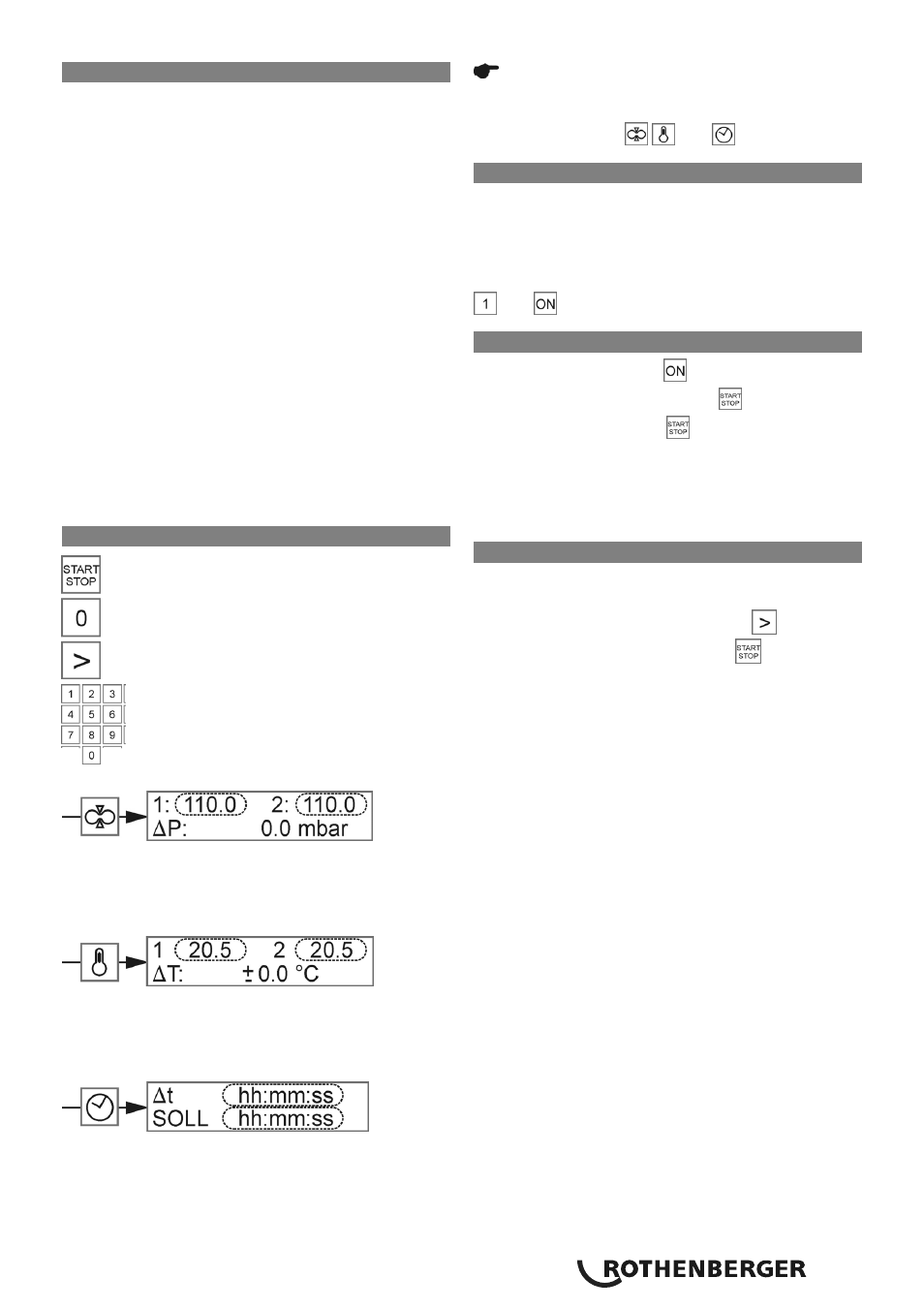

Key Functions
Start or end action
Confirm selection
Calibration of zero point
Denial of requests
Continue in menu
Entry of PIN number. Entry of standard
pressures and standard test data
Pressure check
P1: Pressure at start of test
P2: Instantaneous pressure
Δ
P: Pressure differential
Temperature check
T1: Temperature at start of test
T2: Instantaneous temperature
Δ
T: Temperature differential
Time check
Δ t: Time differential between instantaneous
time and beginning of test or start phase
STANDARD: Test duration as per national specifi
cations
During the start and test phase, the
instantaneous values of pressure and
temperature and the time can be called up by
pressing a key (
and keys ).
Basic Settings
Possible settings:
Language ......... Language 1, language 2
Pressure............ bar, Pascal, psi
Temperature .... °C, °F
To do this, when the unit is switched off, press the
and keys at the same time for 3 seconds.
Switching On and Off
Switching on: Press the key, enter the PIN no.
(see last page) and confirm with .
Switching off: Press the key for 5 seconds.
Automatic switch-off after 5 minutes without key
actuation (exception: start and test phases)
Change the battery if the “Battery empty” display
appears, or connect the power supply unit
Menu Structure
After switching on, the main menu item
GAS PIPE is displayed.
To skip to the next main menu item:
To skip to the next submenu item:
At the end of the menu chain, the user is returned
to the main menu item GAS PIPE
GAS PIPE
LOAD TEST
LEAK TEST
USABILITY TEST
PRESSURE TEST
WATER PIPE
AIR MEDIUM
WATER MEDIUM
WASTEWATER EN1610
AIR MEDIUM
WATER MEDIUM
UNIT PRESSURE
LOW-PRESSURE SENSOR
HIGH-PRESSURE SENSOR
PRESSURE RECORDER
HIGH-PRESSURE SENSOR
LOW-PRESSURE SENSOR
DATA TRANSMISSION
SEND TO PC
RECEIVE FROM PC
MEMORY CLEAR
CLEAR O.K.?
MEMORY SPACE
AVAILABLE MEMORY
