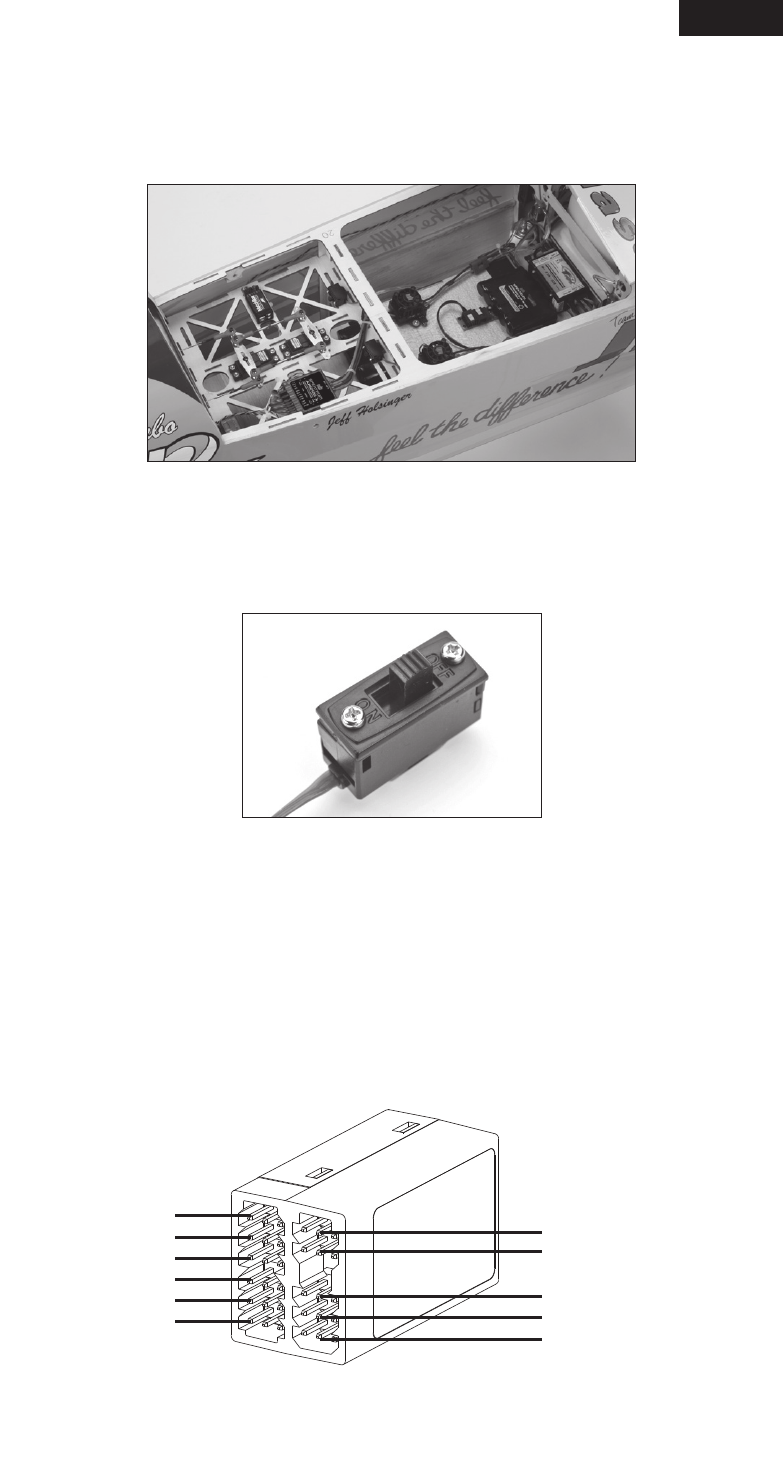

Installing the PowerSafe Main Unit

1. Using foam or thick double-sided foam tape and tie wraps, secure the

main PowerSafe unit in the position where you would normally mount the

receiver.

2. Mount the switch on the side of your aircraft and insert the switch plug in the

port in the main unit marked SWITCH.
The PowerSafe uses a specifically designed switch. Conventionally wired switches

are not compatible with the PowerSafe.

Installing Optional X-Plus 8 Module

When using an X-Plus

™

receiver and module it is recommended the X-Plus 8

module be mounted as close to the receiver as possible. When using the X-Plus

power jumper lead mounting the X-Plus 8 module close will minimize the current

loss from the receiver. Servo extensions can be use with each servo, it is reco-

mmended to use heavy 22 gauge wire with gold plated connectors.
If an auxiliary battery or batteries are to be used there is no need for the X-Plus

power jumper. The X-Plus 8 module can be mounted as far away from the receiver

when using the auxiliary power option.

X+1

X+5

X+6

X+2

X+3

X+7

X+8

BATT/JMPR

SRXL

X+4
