Page 12: Servo layout charging jack key input and display

Note: Rubber

grommets (and

sometimes eyelets)

are used in fuel-

powered vehicles.

��

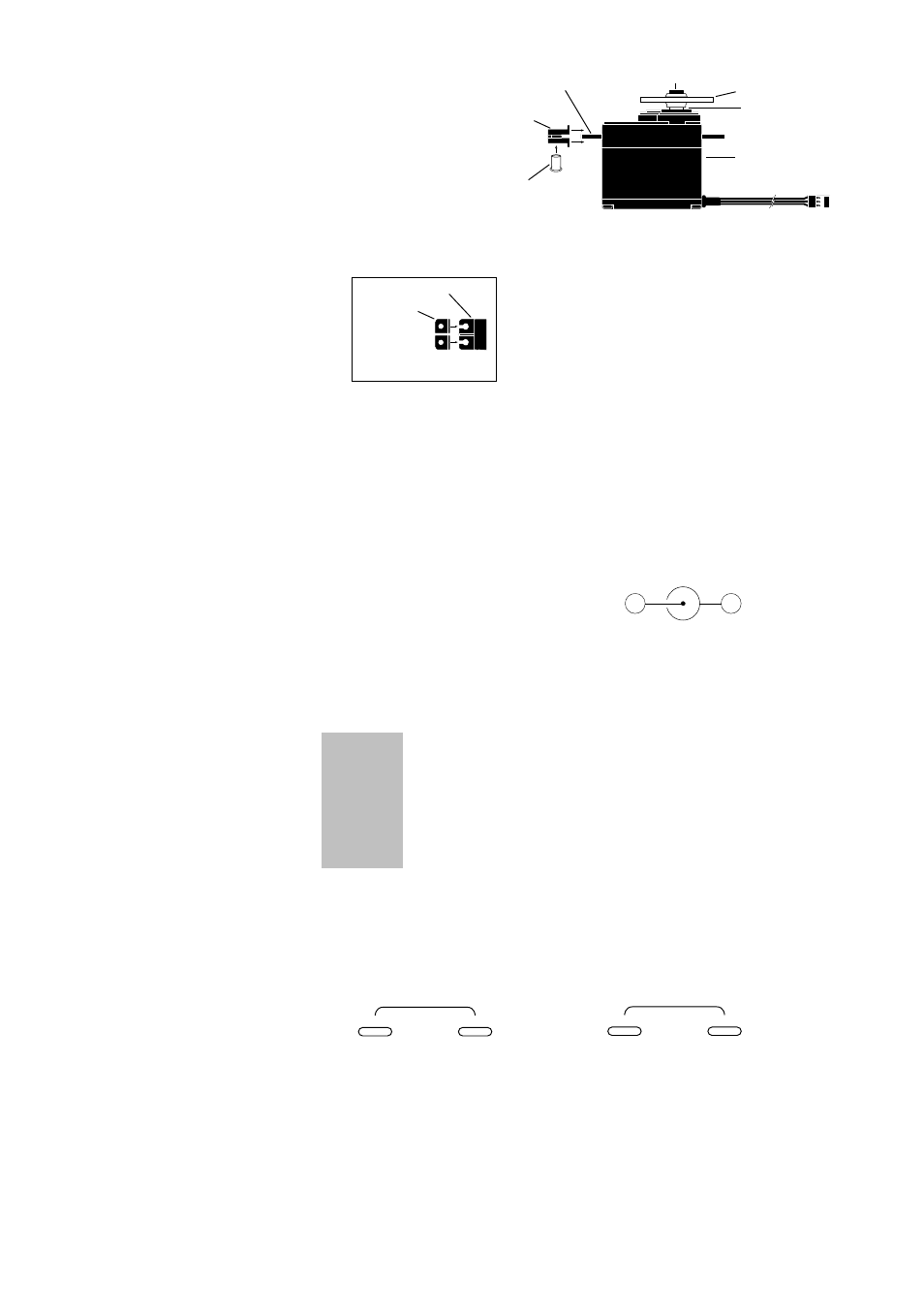

Servo Layout

��

Key

Use

MODE

Used to move up through the available functions

CHANNEL

Used to select the desired channel

INCREASE

Used to increase the value of the selected function

DECREASE

Used to decrease the value of the selected function

To enter the System Mode press the

MODE

and

CHANNEL keys simultaneously and

hold while turning on the transmitter.

MODE

CHANNEL

ENTER

SYSTEM

INCREASE

DECREASE

CLEAR

DIRECT

–

To enter the Function Mode press the MODE
key while the transmitter is on.

Press the

INCREASE and DECREASE

keys simultaneously to clear the screen or
return to factory preset.

Key Input and

Display

Located on the right-hand side of the transmitter is the charging jack, which accepts only

JR® style wall chargers. Please do not attempt to use any other brand of wall charger as it

may be reverse polarity and can cause damage to your system. Only use the JR type wall

charger when the DX2 is equipped with Ni-Cd batteries (available separately, JRPB958).

Spektrum Transmitter Charge Jack Polarity:

�

Charging Jack
