Swiftech MCRES MICRO - Manual (Page 3)

ITEM NO. PART NUMBER DESCRIPTION QTY
.
1 BCKT1 "L" bracket 1
2 BCKT2 "U" bracket 2
3 90272A146-6-32x3-8-philips 3
4 91772A158-6-32X1.75 6-32 x 1 3/4" Philips screw 2
5 90760A007 6-32 Nut w/teeth washer 3
6 FW150X437X092 Rubber Washer 437X150X092 2
7 93286A041-WASHER zinc plated washer 5
.150"
(3.8MM) HOLE
DRILL ONE
HANGING MOUNT
Panel
1
5
4
7
2
3
6
UPRIGHT MOUNT
Panel
BACK-PANEL MOUNT
Panel
2.00 " (50.8mm) APART
DRILL TWO
0.150" HOLES
6-32 x 3/8” Philips screw

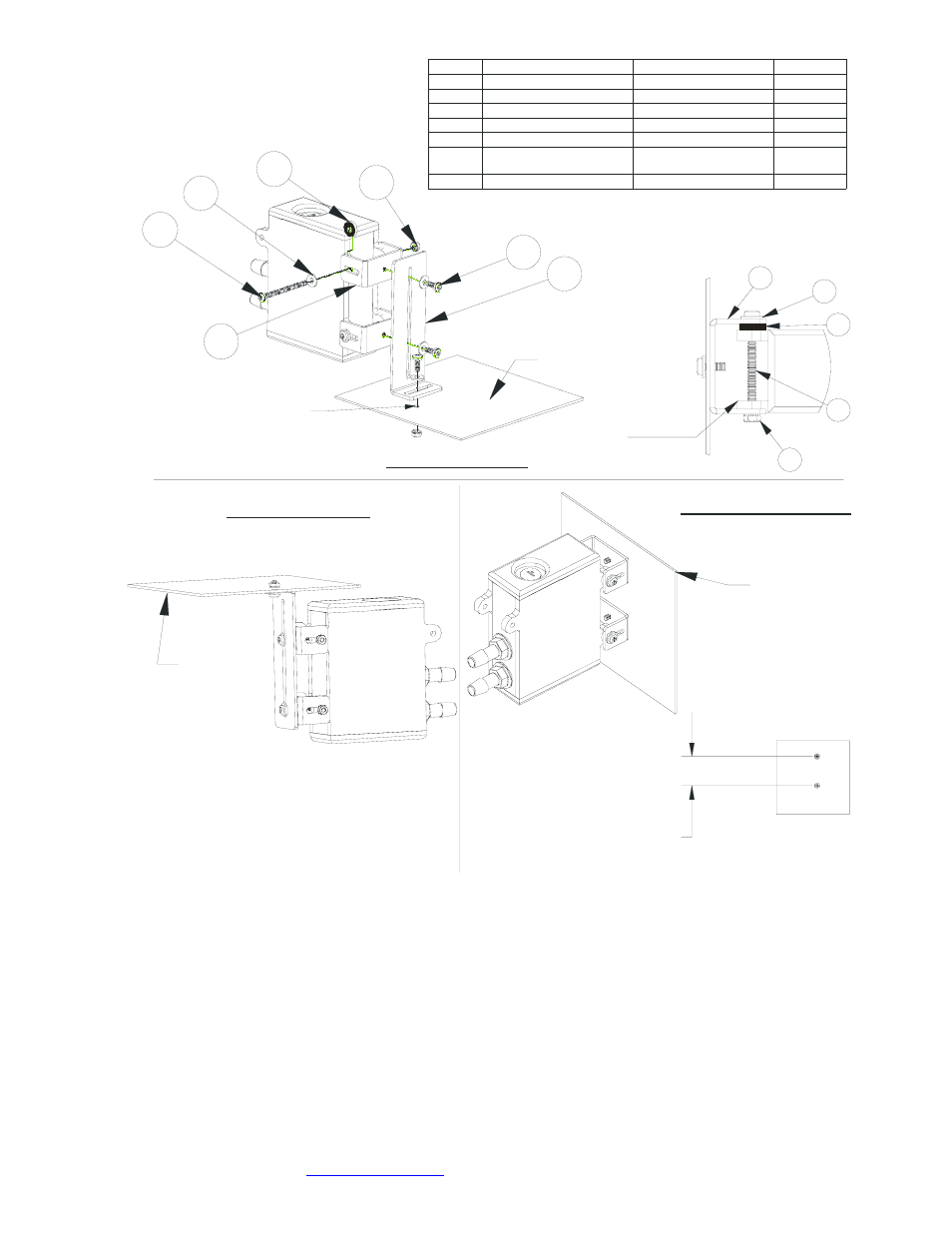

MCRes Micro
Bracketry installation and
examples
Note 1: rubber washer 6
should be inserted between
either side of the reservoir
ear and the U bracket 2.
4
6
7
5
Reservoir ear
2
Note 2: the 6-32 x 1 3/4” screw #4 & nut # 5 assembly
is designed to protrude as little as possible in order
to reduce overall clearance necessary for the Micro
Res assembly. It is thus necessary to slightly push the nut
in order to engage it on the screw thread.
Copyright Swiftech 2006 – All rights reserved – Last revision date: 8-26-06
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail:
[email protected] – URL: http://www.swiftnets.com - Information subject to change without notice
