Page 2

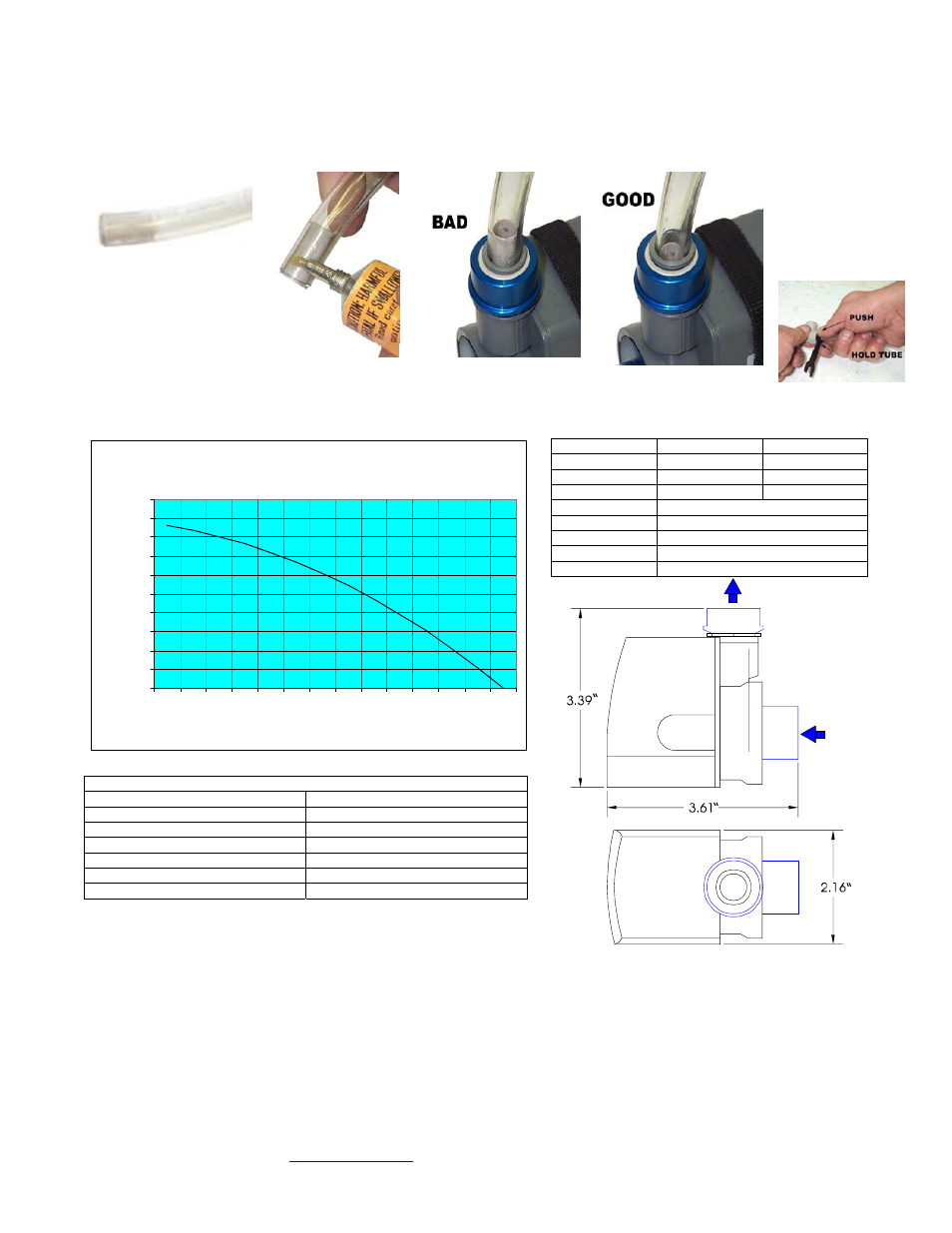

Connecting the tubing
Cut the end of the tubes perfectly square. It is absolutely
imperative to use the provided tube inserts with clear vinyl
(soft) tubing, as shown in figure 5 below. A little bit of
grease spread around the perimeter of the tubing as shown
in fig. 6 will help insert them into the fittings.
Make sure that the tubes are fully inserted into the fitting. The tip
of the plastic tube inserts should be flush with the inlet and outlet
openings, as shown in figure 8 below. Inserting the tubes
requires a firm push, accompanied by a twisting motion. Tube removal:
Push in collet squarely
against face of fitting
using the provided
quick-connect remove
tool as shown below:
tube can now be safely
pulled out. Do not
attempt to pull tube out
without pushing
squarely against the
collet.
YOU MUST USE TUBE
INSERT WITH SOFT
TUBING
Figure 5 Figure 6 Figure 7 Figure 8 Figure 9
Performance & Specifications
MCP300 PERFORMANCE
0
10
20
30
40
50
60
70
80
90
100
0 26 52 79 105 132 158 184 211 237 264 290 317 332
Maximum Flow Rate Gal/Hr
H
ead
H
eig
h
t In
ch
(submersed condition - 5/8" ID output)
Replacement parts
Description Part #
Pump body – 115 V MCP300-B115
Pump body – 230 V MCP300-B230
Inlet fitting MCP300-IL
Outlet fitting MCP300-OL
Inlet O’Ring MCP-90653
Outlet O’Ring MCP-90651
Voltage 115 V version 230 V version
Hz 60 50
RPM 3600 3000
Watts 22
25
Inlet/Outlet OD ½”
Max Head 86” / 220 cm
Flow L/Hr 400-1300
Flow Gal/Hr 100-340
MTBF 50,000 hours
Inlet
Outlet
WARRANTY: This product is guaranteed for a period of 24 months from date of purchase for defects in material, and workmanship. Guarantee
consists in replacing defective parts with new or reconditioned parts. Guarantee is considered void in case of improper use (*), handling or
negligence on the part of user. Original invoice showing date and place of purchase is required for exercise of the warranty.
(*) WARNING: DO NOT ATTEMPT TO LEAK-TEST THIS PUMP USING COMPRESSED AIR OR CITY WATER PRESSURE. THIS WILL CAUSE EXCESSIVE
INTERNAL PRESSURE, RESULTING IN IMMEDIATE AND IRREVERSIBLE DAMAGE TO THE PUMP, AND VOID YOUR WARRANTY. LEAK-TESTING CAN
ONLY BE PERFORMED BY RUNNING THE PUMP ITSELF AND/OR GRAVITY FEEDING THE CIRCUIT. EXCESSIVE INTERNAL PRESSURE CAN ALSO
BUILT-UP WHEN USING THERMO-ELECTRIC DEVICES WITHOUT APPROPRIATE COOLING TO THE DEVICE, AND IS NOT COVERED BY OUR
WARRANTY.
DISCLAIMER: Swiftech assumes no liability whatsoever, expressed or implied, for the use of this product, and more specifically for any, and all
damages caused by the use of this product to any other devices in a personal computer, whether due to product failure, leak, electrical shorts, and
or electro-magnetic emissions.
