8. MCRES-M
ICRO RESERVOIR
I
NSTALLATION
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
MCRES-MICRO
Reservoir
1
2
1-4“ NPSM x 3-8“ and 1-2“barb
Barb fitting
2 pairs
each
3
O-RING-9557K473
Barb fitting O-Ring
2
4
pg7-o-ring
Fill-cap o-ring
1
5
pg7-plug
Pg7 Fill-cap
1
6
MOUNTING HARDWARE
3
90272A152-6-32x0500philips
6-32 x 7/8" (22mm) Philips screw
1
90760A007
6-32 Nut
1
washer-91007A614
Lock Washer
1
WASHER-RUBBER-437X150X092
Rubber Washer
1
7
panel
1
6a
6b
6c
6d

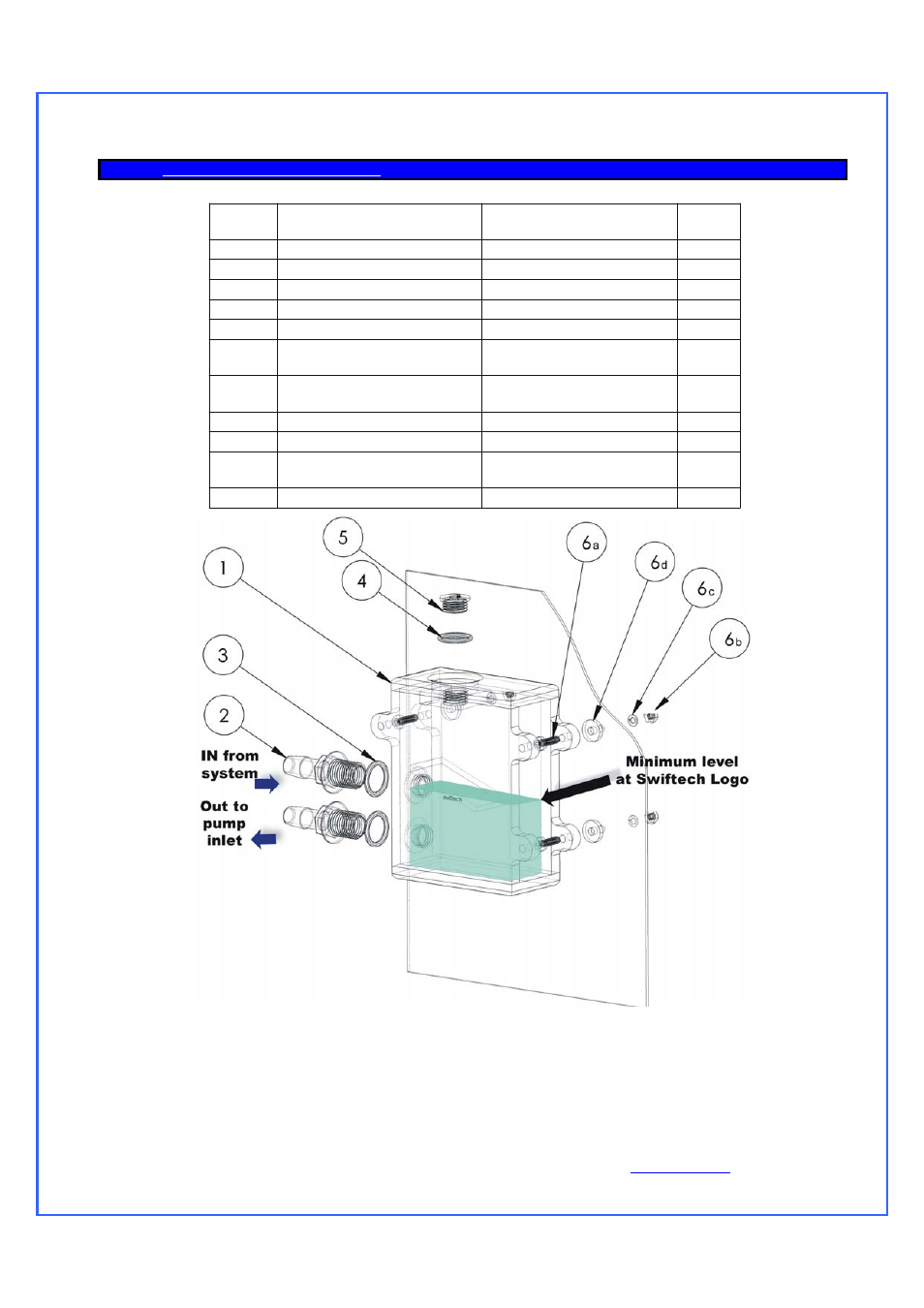

Figure 1
Installation
•
The MCRES-MICRO can be installed in any suitable location meeting its form factor requirements. For filling and
bleeding purposes, it is preferable to hold or to install the MCRES-MICRO at the highest point of the liquid cooling
loop. However, once filled and hermetically closed, the reservoir can be installed practically anywhere as long as it is
kept upright as shown in figure 1. Also, to facilitate the filling and bleeding operations, you might want to wait until the
circuit has been filled-up before you fasten the reservoir permanently to the chassis.
