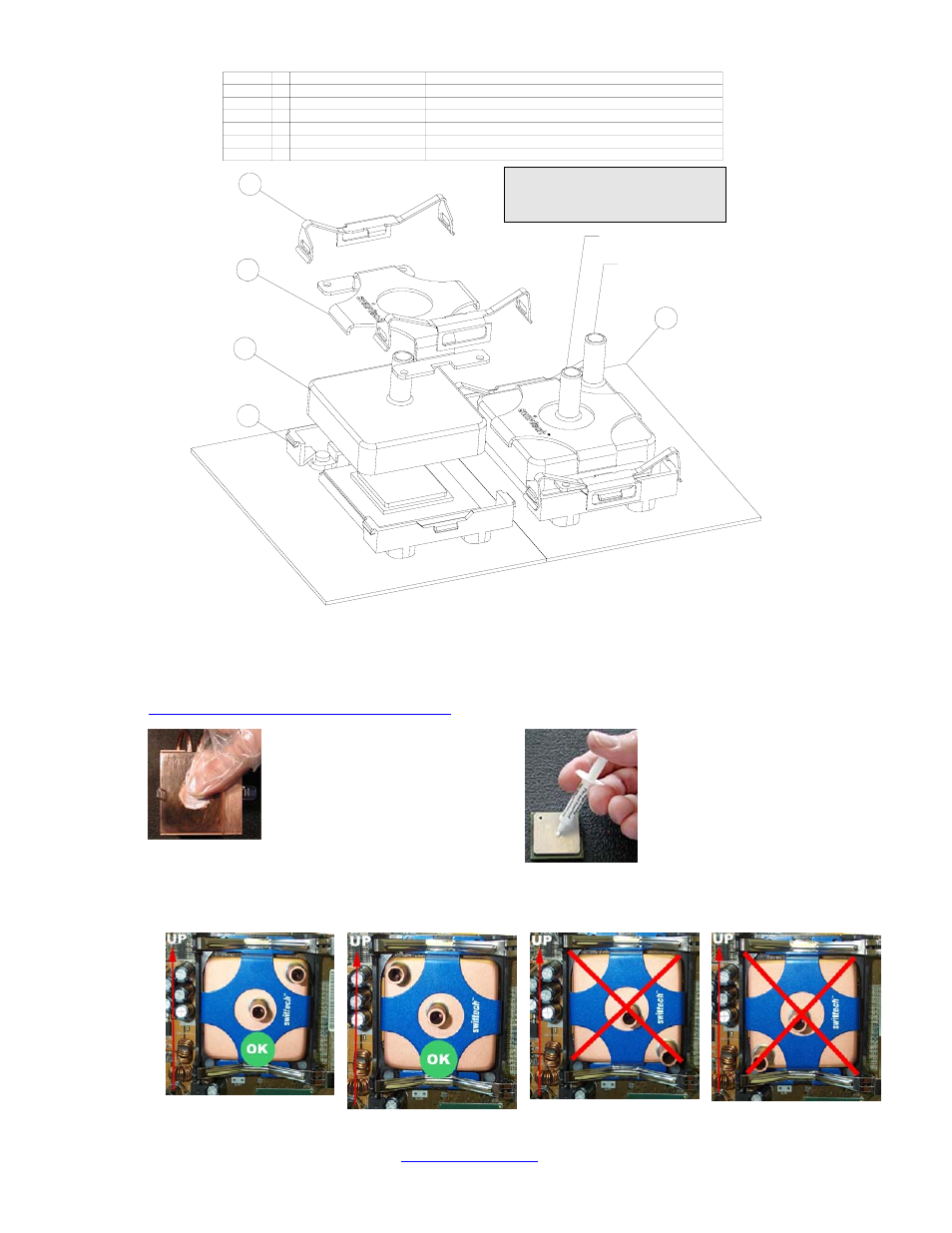

Figure 2 – Swiftech MCW6000 PX User Manual
Page 2
ASSEMBLY USING PLASTIC
FRAME AND SPRING CLIPS
INCLUDED WITH MOTHERBOARD
16
PART NO.
DESCRIPTION
1
DUAL-XEON-BOARD
Motherboard
2
RETENTION
Plastic retention frame, included with motherboard
3
XEON-CLIP
Xeon clip included with motherboard
4
MCW6000-P-with-bracket
MCW6000-P water-block assembly
a MCW6000-FLAT
MCW6000 waterblock flat base
b SP4-Bckt
Hold-down plate for Intel Pentium 4 and Xeon
3
4 b
4 a
2
1
FLUID INLET
FLUID DISCHARGE
Figure 2
1.
Preparing your Motherboard
Remove the existing heat sink and carefully clean the CPU
Apply thermal compound: lightly coat the CPU with the provided Céramique™ thermal compound. Follow this link
for detailed instructions.
Rub some compound in base of water-
block first, and then clean off with lint-
free cloth
Apply small amount of
compound on the CPU heat
spreader
2.
Waterblock orientation
For ease of operations during the filling and bleeding procedures, the outlet should always be at the highest point (while the
computer system is standing upright):
Copyright Swiftech 2004 – All rights reserved – Last revision date: 11-23-04
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
th
Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-
8769 - E Mail: [email protected] – URL:
http://www.swiftnets.com
- Information subject to change without notice
Page 2 of 3
