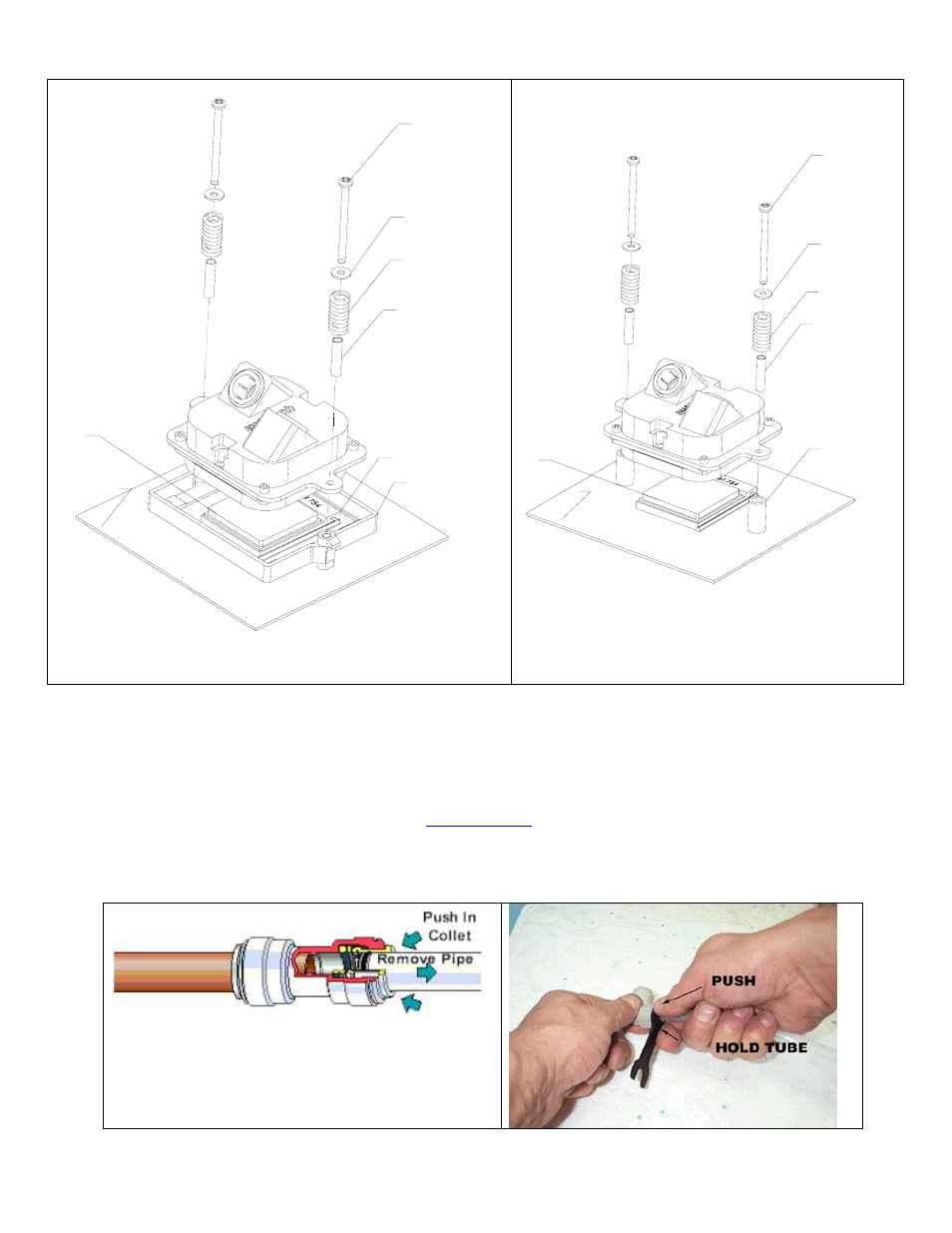

Installation with stock plastic retention frame
6x32 philips screw
Nylon shoulder washer
Spring
Aluminum
tension limiter
Socket Socket
Plastic retention
frame
CPU
Motherboard
Figure 6
Installation without retention frame
6-32 Philips screw
Nylon shoulder
washer
Spring
Aluminum
tension limiter
Nylon spacer
CPU
Motherboard
Figure 7
4. Connecting the water-block(s) to the cooling circuit.
FAQS:
Inlet and outlet are interchangeable.
In Multi-Processor environments, optimal water-block performance will be achieved by connecting them in series (outlet
of one connected to the inlet of the other).
Recommended coolant: distilled water+ algaecides & corrosion inhibitors are mandatory (automotive antifreeze).
5. Final inspection
Once the installation is completed, it is always a good idea to test the circuit for leaks, prior to powering up the computer.
Troubleshooting help is available on our web site at
www.swiftnets.com , or by calling customer support at 562-595-8009.
Note concerning removal of the tubing : Push in collet squarely against face of fitting, using swiftech’s tube removal tool,
or a wrench of approximately the same opening diameter as the tube (1/2” +). With the collet firmly held against the face of the fitting,
the tube can be safely pulled out. Do not attempt to pull the tube out without pushing squarely against the collet. This may result in
damaging the fitting.
