Installation
Oven Assembly
DOUBLE SECTION ASSEMBLY
1. Fasten 12” (305 mm) legs to lower section.
2. Remove the sheet metal flue cover on bottom of UP-
PER SECTION FLUE ONLY and save the two screws.
3. Fasten crown angle leg frame to upper sections.
4. Insert double oven flue connector into upper oven
section flue until it is flush with the base angle. Tem-
porarily hold in place with tape.
5. Install upper section on bottom section.
6. Remove tape and slide flue connector into position
over the collar of the bottom section.
7. Fasten flue connector to bottom section with screws
from the flue cover.
8. Install drafthood or draft diverter with screws provid-
ed.

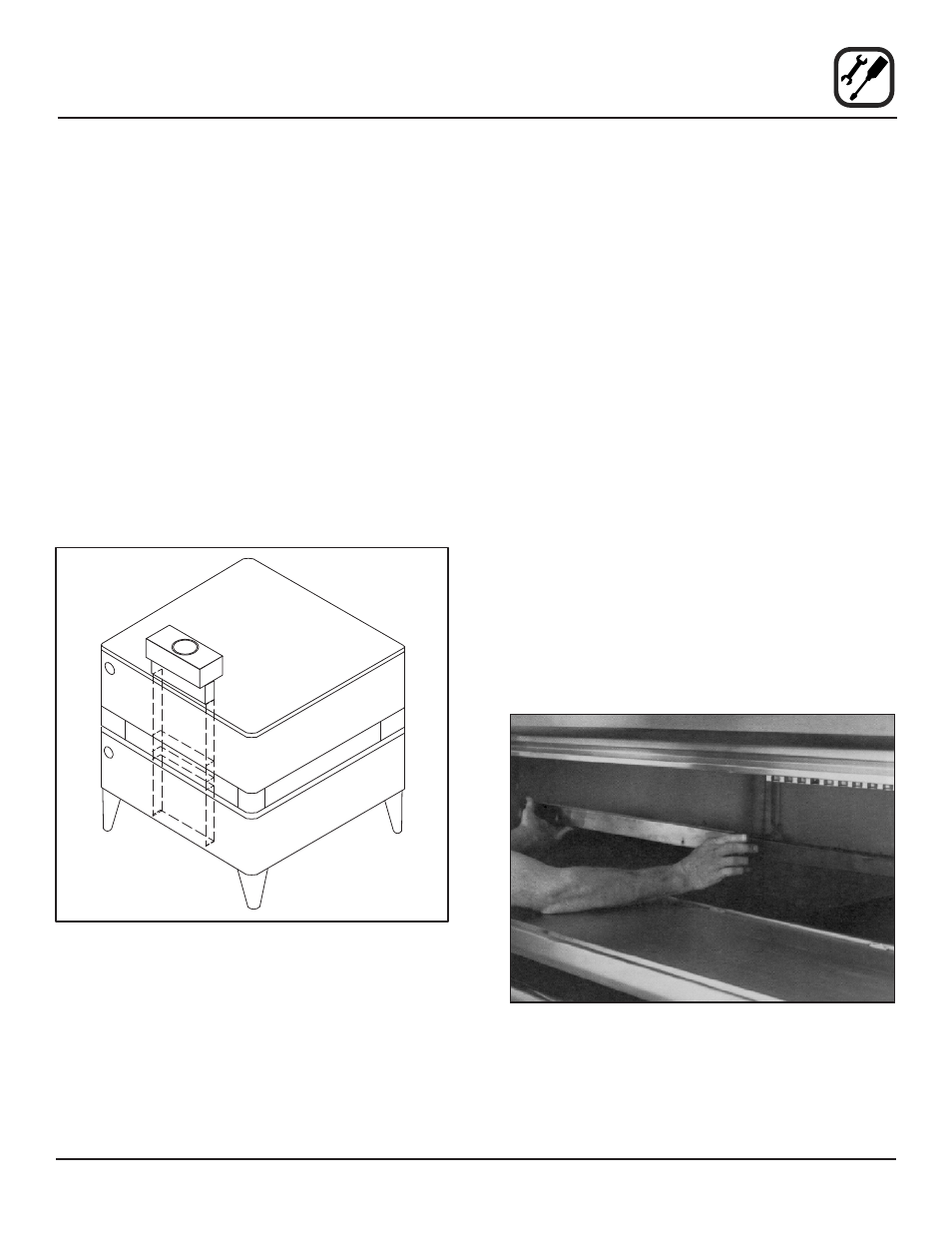

Figure 1
3 PIECE DEFLECTOR ASSEMBLY
1. Deflectors are shipped in place in the oven. No as-
sembly is required.
2. Remove the shipping clip located in the back center
of each deflector before inserting two-piece shelf as-
sembly.
ULTRA ROKITE SHELVES
1. Slide one half of the Ultra Rokite shelf through the
door opening. Rest the shelf on the deflector and
slide to the rear of the oven until it drops into the shelf
support. Slide the shelf to the right.
2. Slide the other half of the Ultra Rokite shelf on top of
first shelf to the rear until it is within the shelf support.
Slide it all the way to the left until it drops down into
place.
3. Slide both shelf halves inward so the center joint clos-
es.
4. Refer to pre-heating instructions supplied with Ultra
Rokite.
NOTE: Because of the weight of the Ultra Rokite
shelves, take care to avoid injury to yourself
or damage to the shelves when sliding sec-
tions into the oven. Use of 1” x 4” pieces of
lumber will help to slide shelves into place.
Figure 2
