Operation
SSD - Solid State Digital Control
CONTROL DESCRIPTION
1. SELECTOR SWITCH - turns power to the oven on
or off. Allows selection of Cook or Cool Down Modes
and fan speed (if applicable).
2. BLOWER SWITCH - controls blower speed, either hi
or lo. Two speed not available in 50 Hz.
3. LIGHTS SWITCH - controls interior lights.
4. DISPLAY - displays time or temperature and other in-
formation related to oven function.
5. HEAT LAMP - lights when heater is on.
6. PULSE LAMP - lights when Pulsed Fan Mode is
turned on.
7. HOLD LAMP - lights when Hold Mode is turned on.
8. DIAL - used to enter set points in display
9. START/STOP KEY - starts or stops the timer.
10. TIME KEY - used to show time in the display.
11. TEMP KEY - used to show set temperature in the dis-
play.
NOTE: Actual temperature is shown while the TEMP
key is held down.
12. HOLD KEY - turns Hold Mode on or off.
13. PULSE KEY - turns Pulse Mode on or off.
PROGRAMMING
To set the cook temperature:
1. Press TEMP (11) key.
2. Rotate dial (8) to enter temperature.
To set the cook time:
1. Press TIME (10) key.
2. Rotate the dial (8) to enter time.
NOTE: Time is entered in hours : minutes or minutes
: seconds.
To set the hold time:
1. Press HOLD key (12) to turn hold mode on.
NOTE: HOLD light is on.
2. Rotate dial (8) to enter the hold temperature.
3. Press START/STOP key (9)
1
3
4
5
10
9
12
2
6
7
8
11
13

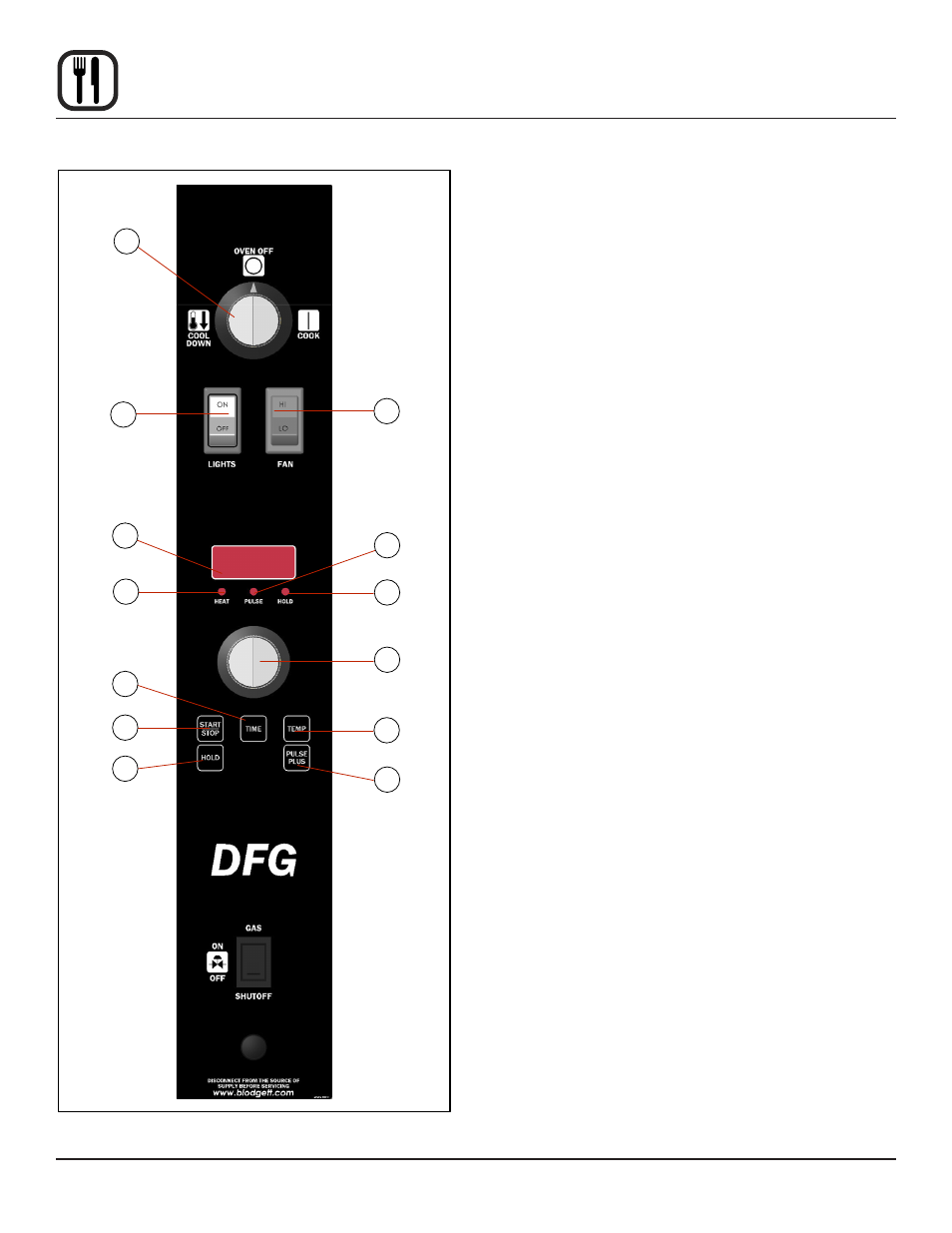

Figure 10
