Allied Telesis AT-VIEW PLUS 3.0 AMIGO - Manual (Page 26)

Allied Telesyn AT-VIEW PLUS
AMIGO
To change the properties of a specific target device, select the target device from the list, then click
the Property button. The "Target host property" dialog box opens. Change the properties, then click
OK.
To remove a target device from the list, select a device in the list then click Delete.

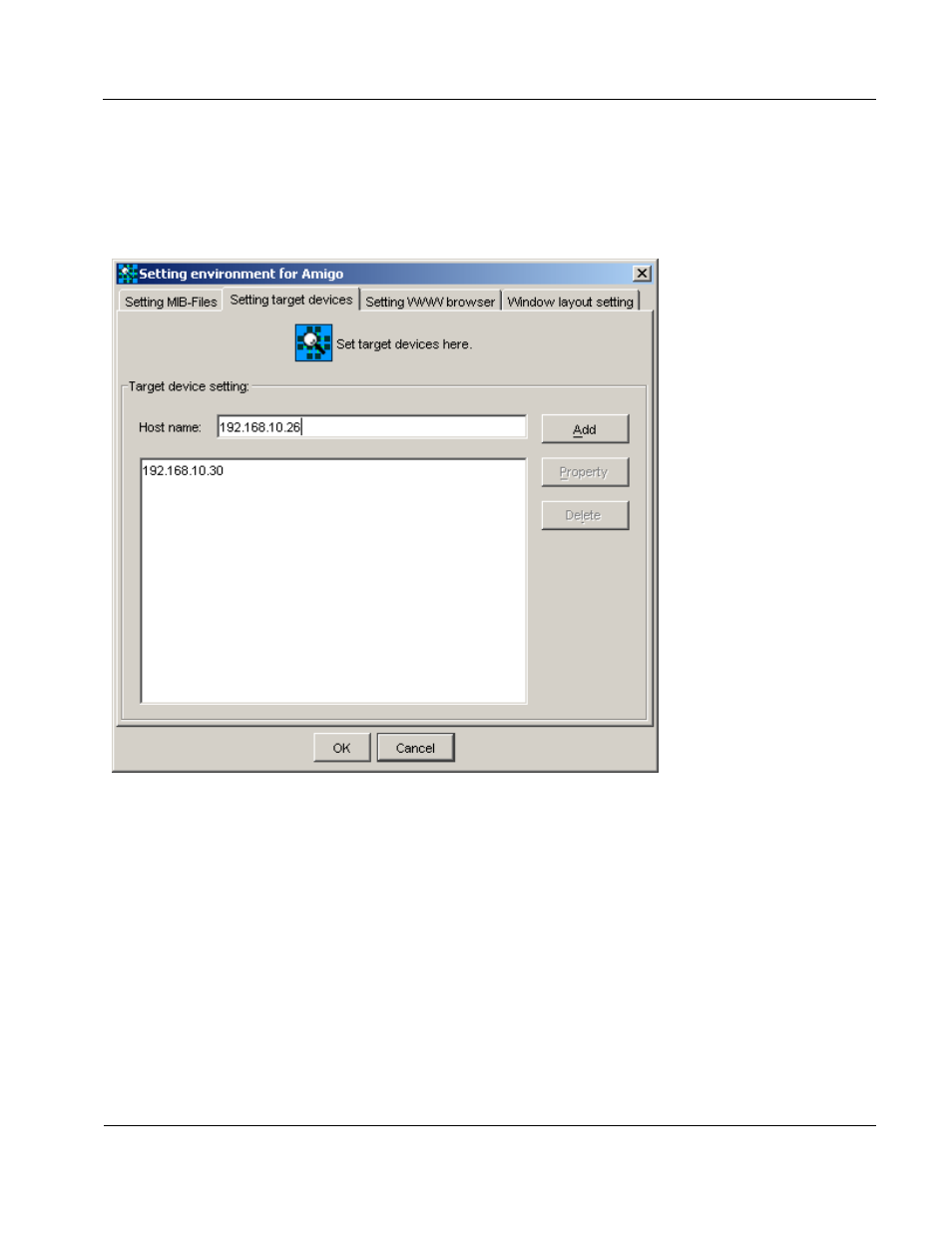

Setting target devices tab
4.1.6.3 Target Host Property
In the "Target Host Property" dialog box, you can change various properties for a specific target
device by selecting a host, then clicking on the Property button.
Timeout
The time in seconds before AMIGO determines that the target device is not responding.
Retry count
The number of SNMP messages to send before giving up.
Port number
The UDP port number on which the target device is listening for SNMP messages. If the
target device is using a non-standard port for SNMP operations, you must change this value.
PN 613-50662-00 Rev A Page 26 of 43
