AT-WCU201G Wireless Adapter Card Installation Guide
63

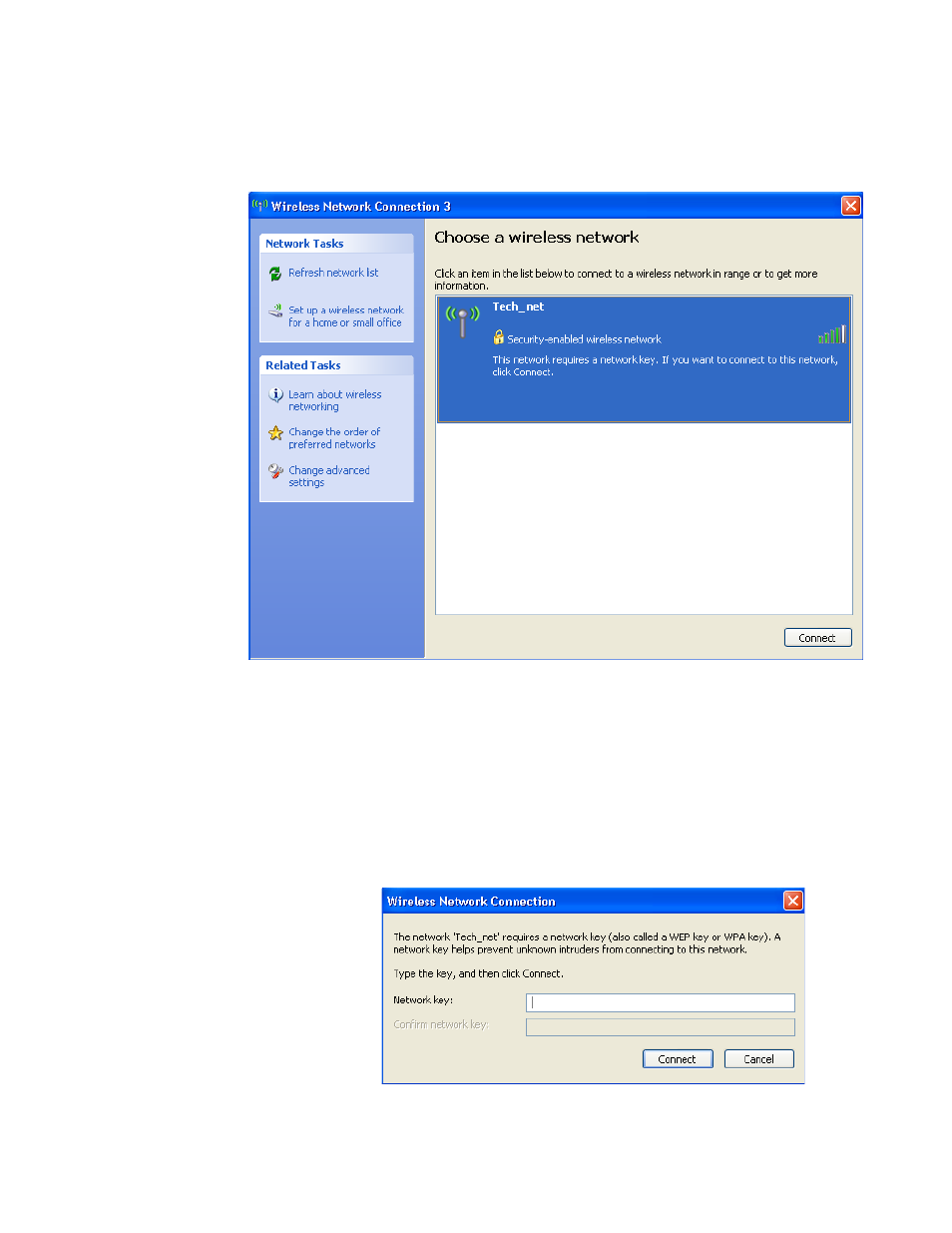

Windows displays the SSIDs of the detected wireless networks in the
Wireless Network Connection window. An example of the window is
shown in Figure 39.
Figure 39. Wireless Network Connection Window
3. Double-click on the wireless network to connect to or, alternatively,
click once on the network and click Connect.
If the wireless router or access point is running WEP, WPA, or WPA2,
the Wireless Network Connection window, shown in Figure 40,
prompts you for the WEP encryption key or, in the case of WPA or
WPA2, the passphrase, also referred to as the shared secret. Go to
Step 5 to enter the encryption key or passphrase.
Figure 40. Wireless Network Connection Prompt (WEP or WPA Security)
